150mm Cast Iron Wheel 1000kg Capacity Castor (S631SG)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

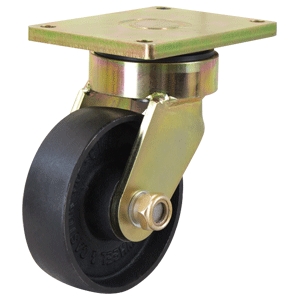

The S631SG manufactured by Richmond is a swivel frame castor and is fitted with a cast iron wheel. This swivel castor is part of our high performance series range and has a top load capacity of 1000kg. The S631SG wheel is fitted with ball bearings. The swivel frame design of this castor allows the castor to swivel 360°. The diameter of the cast iron wheel is 150mm, the wheel width is 45mm and can be ordered separately (Ci601).

Description

When performance and endurance are key concerns, the High Performance castor is world class. A large opposed taper roller bearing in the swivel head means the castor can be power towed at speeds up to 12kph over flat surfaces without obstructions. The steel passivated zinc plated frame is robot welded and a fully sealed greasable swivel head make this castor easy to maintain. Richmond’s High Performance Series is custom designed and manufactured in-house to specification.

Product Code S631SG
Wheel Diameter (mm) 150
Frame Type Swivel
Wheel Width (mm) 45
Wheel Type Cast Iron
Wheel Code Ci601
Wheel Bearing Type Ball Bearing
Castor Height (mm) 214
Swivel Radius (mm) 135
Maximum Load Capacity (kg) 1000
Towable No
Australian Manufactured

Australian Manufactured

Swivel

Swivel
