150mm Cast Iron Wheel 1500kg Capacity Castor (R691)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

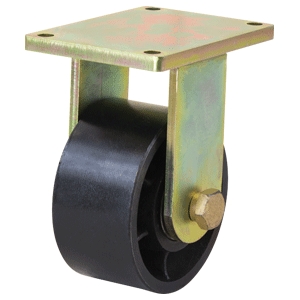

The R691 from Richmond Wheel and Castor Co. is a rigid frame castor and has a cast iron wheel. This rigid castor is in our high performance series range and has a maximum capacity of 1500kg. The R691 wheel is fitted with ball bearings. The rigid frame of this castor allows for steering only when used with swivel castors. The diameter of the cast iron wheel is 150mm, the wheel width is 75mm and you can order separately (Part Number: Ci689).


When performance and endurance are key concerns, the High Performance castor is world class. A large opposed taper roller bearing in the swivel head means the castor can be power towed at speeds up to 12kph over flat surfaces without obstructions. The steel passivated zinc plated frame is robot welded and a fully sealed greasable swivel head make this castor easy to maintain. Richmond’s High Performance Series is custom designed and manufactured in-house to specification.

Product Code R691
Wheel Diameter (mm) 150
Frame Type Rigid
Wheel Width (mm) 75
Wheel Type Cast Iron
Wheel Code Ci689
Wheel Bearing Type Ball Bearing
Castor Height (mm) 214
Maximum Load Capacity (kg) 1500
Towable No
Australian Manufactured

Australian Manufactured
