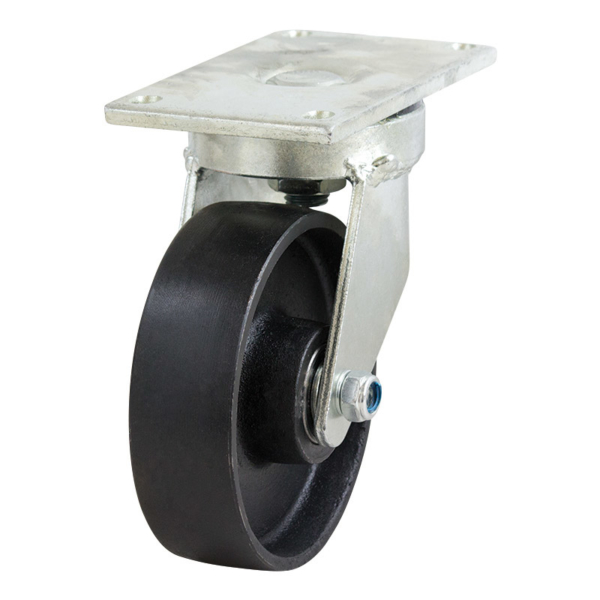

The S6318 from Richmond is a swivel frame castor and has a cast iron wheel. This swivel castor is in our 1000 series range and can safely take loads up to 1000kg. The S6318 is assembled with ball bearings on the castors axle. This castors swivel frame permits the load to be steered. The overall cast iron wheel diameter is 150mm, the wheel width is 45mm and you can order separately (Part Number: Ci601).
150mm Cast Iron Wheel 1000Kg Capacity Castor (S6318)
$139.78 ex. GST
$153.76 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.
| Product Code | S6318 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci601 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 194 |
| Swivel Radius (mm) | 130 |
| Maximum Load Capacity (kg) | 1000 |
| Towable | No |
| Download CAD Drawing (STEP File) | Download |
|---|
