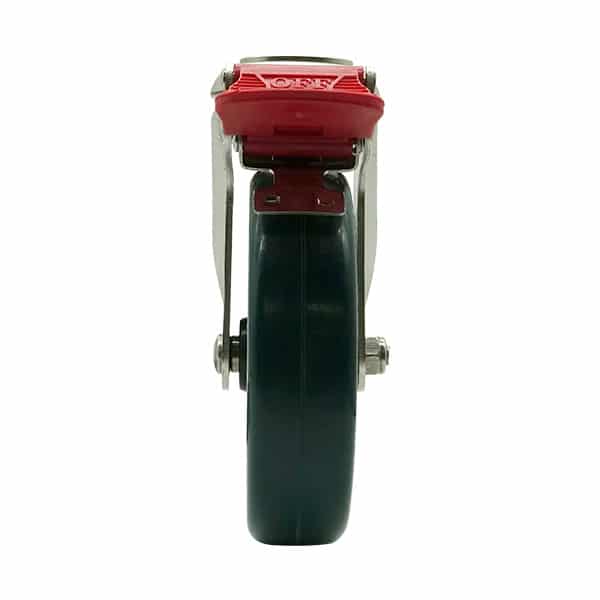

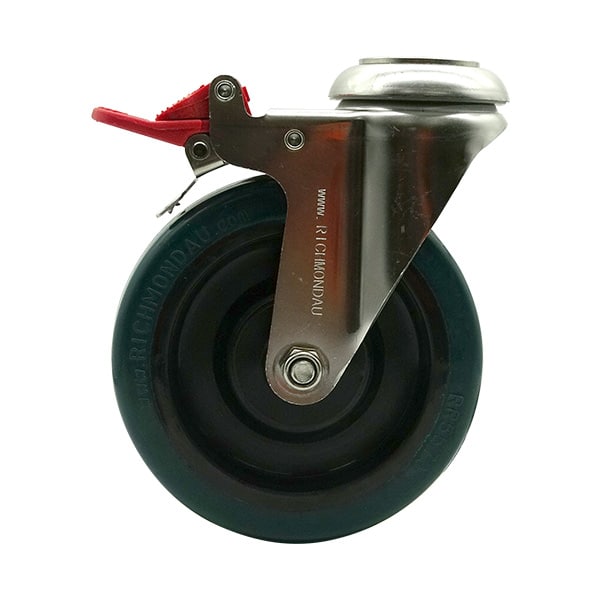

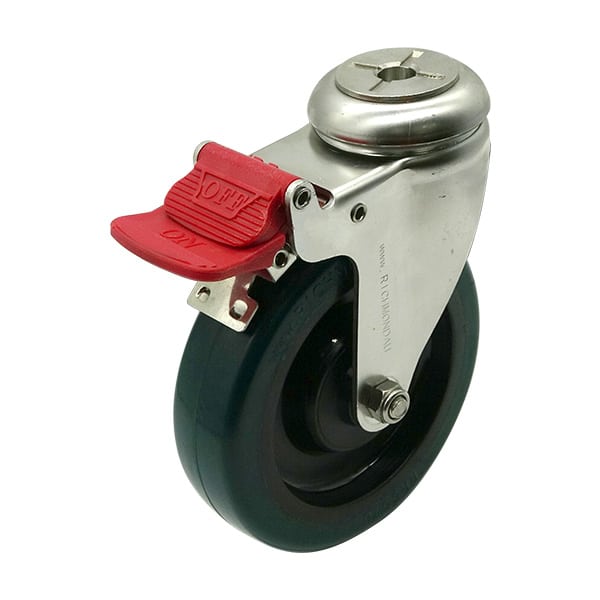

125mm Rebound Rubber Swivel Brake Castor (S5518B)

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life,these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code S5518B
Wheel Diameter (mm) 125
Frame Type Swivel with Brake
Wheel Width (mm) 32
Wheel Type Rebound Rubber
Wheel Code RR5367
Wheel Bearing Type Plain Bore
Castor Height (mm) 159
Swivel Radius (mm) 106
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 100
Recommended Load Capacity (kg) 80
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Grade 304 Stainless Steel

Grade 304 Stainless Steel

Swivel with Brake

Swivel with Brake
