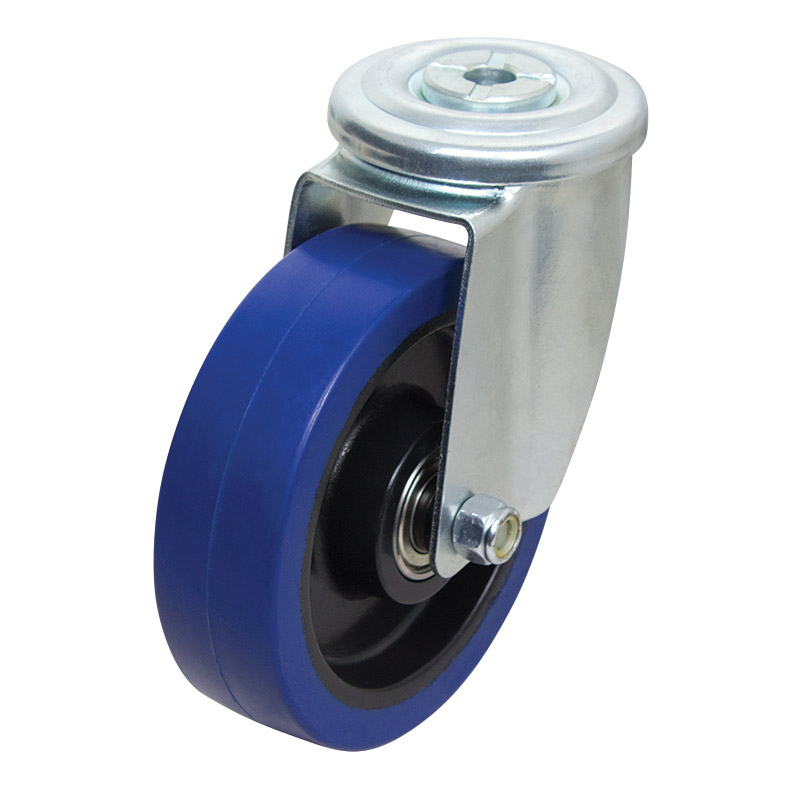

125mm Rebound Rubber Bolt Hole 300 Series Castor (S5214)

Add to Quote

The S5214 manufactured by Richmond is a swivel frame castor and features a rebound rubber wheel. This swivel castor is one of our 300 series bolt hole range and can safely take loads up to 200kg. The S5214 uses ball bearings for wheel rotation and is mounted with a bolt. The swivel frame design of this castor allows full swivel rotation to enable steering. The rebound rubber wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RR5077). To order this castor with a brake, search for S5214B.

Description

Richmond’s premier industrial bolt hole castor designed with strengthen forks and now a larger rolling diameter suitable for loads up to 300kg, the 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt and the vast wheel combinations available with this series provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code S5214
Wheel Diameter (mm) 125
Frame Type Swivel
Wheel Width (mm) 35
Wheel Type Rebound Rubber
Wheel Code RR5077
Wheel Bearing Type Ball Bearing
Castor Height (mm) 157
Swivel Radius (mm) 112
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Swivel

Swivel
