Product Code | R5271 |
---|---|
Wheel Diameter (mm) | 125 |
Frame Type | Rigid |
Wheel Width (mm) | 50 |
Wheel Type | Polyurethane Tyred Cast Iron Centred |
Wheel Code | PU525 |
Wheel Bearing Type | Ball Bearing |
Castor Height (mm) | 166 |
Maximum Load Capacity (kg) | 500 |
Recommended Load Capacity (kg) | 380 |
Towable | No |

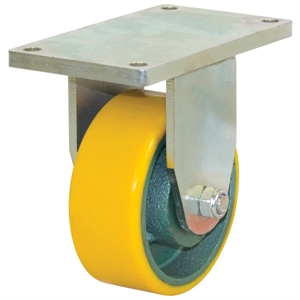

125mm Polyurethane Wheel 500kg Capacity Castor (R5271)
The R5271 manufactured by Richmond Wheel and Castor Co. is a rigid frame castor and is fitted with a polyurethane wheel. This rigid castor is in our 500 series range and has a maximum capacity of 500kg. The R5271 uses ball bearings for wheel rotation. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall polyurethane wheel diameter is 125mm, the wheel width is 50mm and can be ordered separately (PU525).
Download CAD Drawing (STEP file) | Download |
---|
