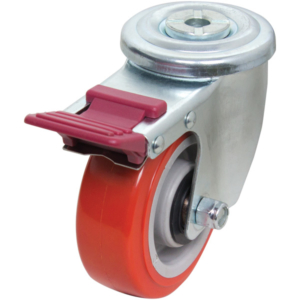

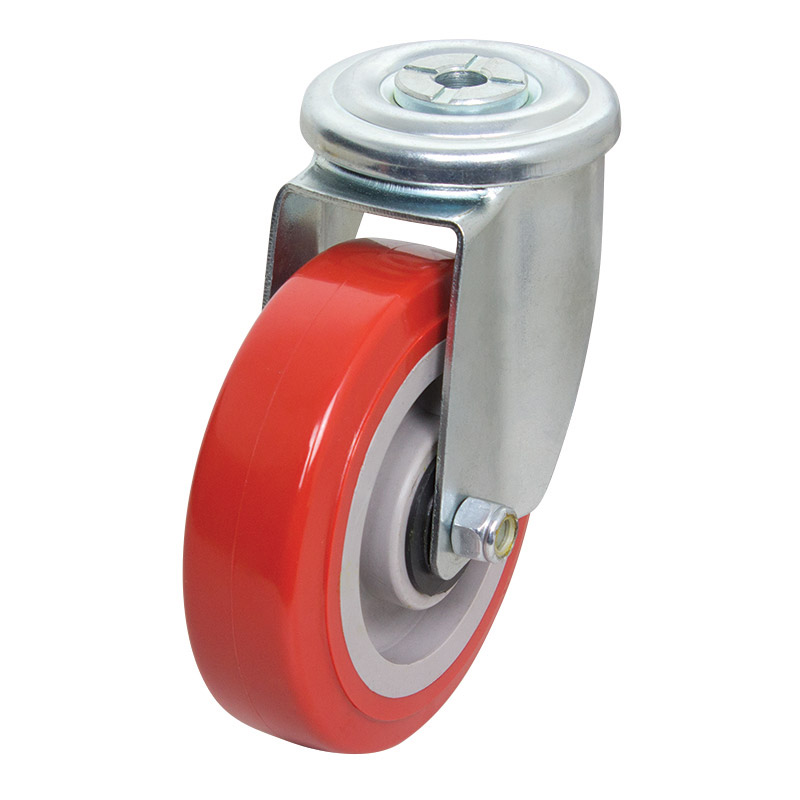

The S5218 from Richmond Rolling Solutions is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 200kg. The S5218 uses roller bearings for wheel rotation and is bolt mount. The swivel frame of this castor allows full swivel rotation to enable steering. The polyurethane wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU5508). To order this castor with a brake, search for S5218B.
125mm Polyurethane Tyred Nylon Centred Wheel, 200kg Capacity, Bolt Hole Swivel Castor (S5218)
Frame Type: Swivel
$35.04 ex. GST
$38.54 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S5218 from Richmond Rolling Solutions is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 200kg. The S5218 uses roller bearings for wheel rotation and is bolt mount. The swivel frame of this castor allows full swivel rotation to enable steering. The polyurethane wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU5508). To order this castor with a brake, search for S5218B.
Description
Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.
| Product Code | S5218 |
|---|---|
| Wheel Diameter (mm) | 125 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Polyurethane Tyred Nylon Centred |
| Wheel Code | PU5508 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 157 mm |
| Swivel Radius (mm) | 112 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Frame Material | Zinc Plated Steel |
| Mounting Type | Bolt-Hole Mount |
| Bolt Hole Size (mm) | 12 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
