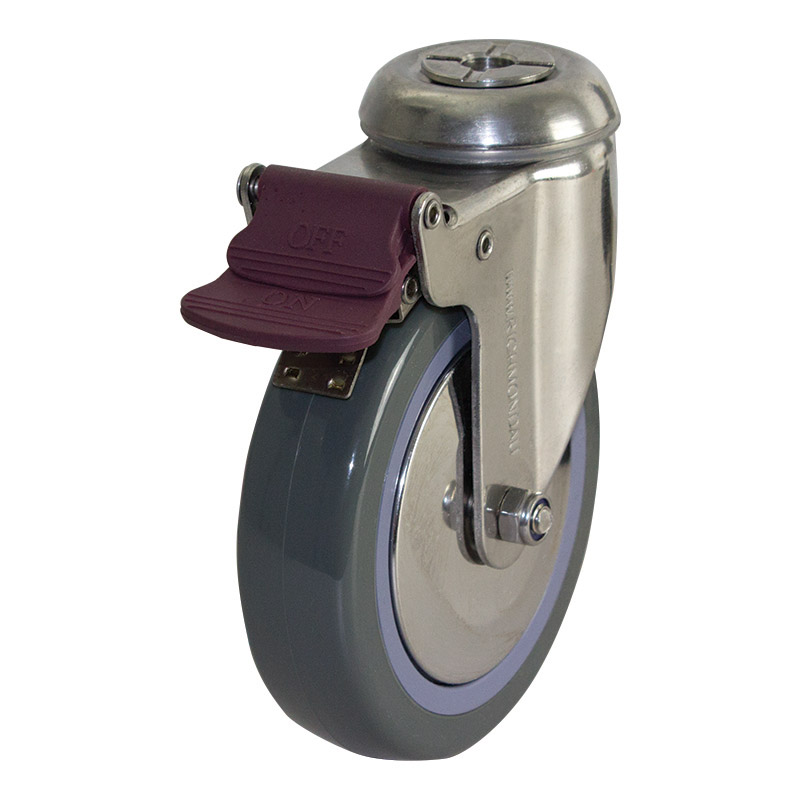

125mm Poly Nylon Wheel 100kg Capacity Castor (S5578B)

The S5578B from Richmond is a swivel frame castor and features a polyurethane wheel. This swivel castor is in our stainless steel elite bolt range and has a maximum capacity of 100kg. The S5578B is assembled with stainless steel ball bearings on the castors axle and is mounted with a bolt. The swivel frame of this castor allows for full 360° swivel rotation. The polyurethane wheel diameter is 125mm, the wheel width is 27mm and can be ordered separately (PU5539). This model can also be ordered without a brake (part number S5578).

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code S5578B
Wheel Diameter (mm) 125
Frame Type Swivel with Brake
Wheel Width (mm) 27
Wheel Type Polyurethane Tyred Nylon Centred
Wheel Code PU5539
Wheel Bearing Type Stainless Ball Bearing
Castor Height (mm) 159
Swivel Radius (mm) 106
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 100
Recommended Load Capacity (kg) 80
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Grade 304 Stainless Steel

Grade 304 Stainless Steel

Swivel with Brake

Swivel with Brake
