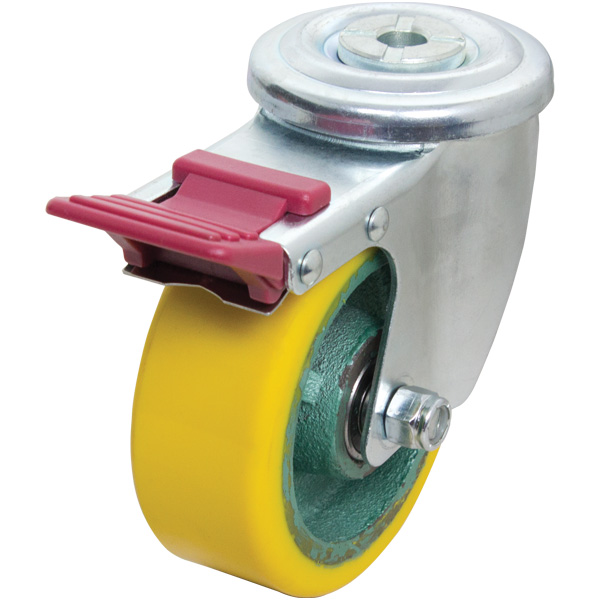

125mm Polyurethane Tyre on Cast Iron Centre Bolt Hole 300 Series Castor (S5220B)

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

The S5220B manufactured by Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is one of our 300 series bolt hole range and can safely take loads up to 200kg. The S5220B is assembled with ball bearings on the castors axle and is mounted with a bolt. This castors swivel frame permits the load to be steered. The polyurethane tyred cast iron wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU549). This model can also be ordered without a brake (part number S5220).

View Specifications View Specifications Shipping Information

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S5220B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Poly Cast Iron
Wheel Code	PU549
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	157
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Swivel with Brake
