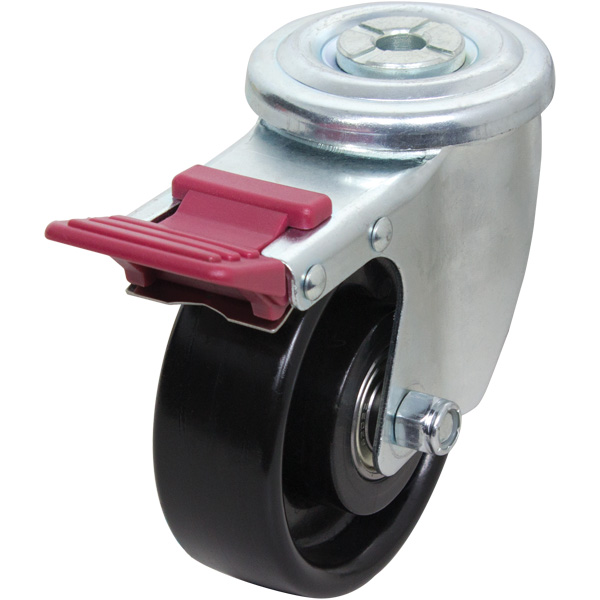

125mm Nylon Bolt Hole 300 Series Castor (S5224B)

The S5224B from Richmond Rolling Solutions is a swivel frame castor and uses a nylon wheel. This swivel castor is in our 300 series bolt hole range and has a maximum capacity of 200kg. The S5224B is assembled with ball bearings on the castors axle and is mounted with a bolt. The swivel frame allows the load to be steered. The overall nylon wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY513). To order this castor without a brake, search for S5224.

View Specifications View Specifications Shipping Information

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S5224B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY513
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	157
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
