125mm Nylon Wheel 200kg Capacity Castor (S5142B)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

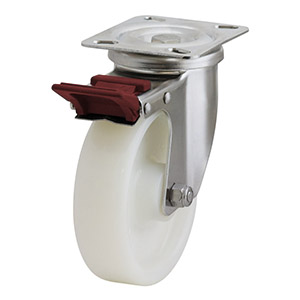

The S5142B from Richmond Wheel and Castor Co. is a swivel frame castor and features a nylon wheel. This swivel castor is part of our stainless steel excel plate range and has a maximum capacity of 200kg. The S5142B is assembled with plain bearings on the castors axle and is mounted with the baseplate. The swivel frame of this castor permits the load to be steered. The overall nylon wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (NY501). For the same castor without a brake, see S5142.

Description

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

Product Code S5142B
Wheel Diameter (mm) 125
Frame Type Swivel with Brake
Wheel Width (mm) 35
Wheel Type Nylon
Wheel Code NY501
Wheel Bearing Type Plain Bore
Castor Height (mm) 158
Swivel Radius (mm) 158
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 110
Barcode / GTIN
Download CAD Drawing (STEP file) Download
Grade 304 Stainless Steel

Grade 304 Stainless Steel

Swivel with Brake

Swivel with Brake
