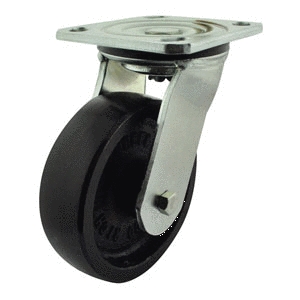

125mm Cast Iron Wheel 380kg Capacity Castor (S5550)

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

Our 125mm Cast Iron Wheel Richmond Castor – S5550 is one of the castors in our extensive series of heavy industrial castors. The wheel is supplied with a Plain Bearing and the diameter of the wheel is 125mm (5″). To view the Cast Iron wheel click here. This heavy industrial castor has a load capacity of 380kg. The swivel frame allows full360° rotation of the castor. Cast Iron wheels have the lowest rolling resistance of all of Richmonds castors however they are not suitable for some surfaces as damage could occur over time.

View Specifications View Specifications Shipping Information

Description

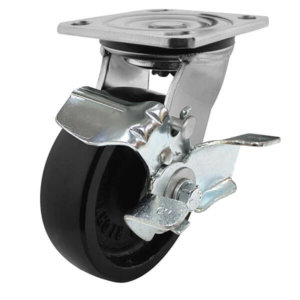

Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing.

Product Code	S5550
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	38
Wheel Type	Cast Iron
Wheel Code	Ci532
Wheel Bearing Type	Plain Bore
Castor Height (mm)	165
Swivel Radius (mm)	100
Maximum Load Capacity (kg)	380
Recommended Load Capacity (kg)	280
