125mm Cast Iron Wheel 380Kg Capacity Castor (R534CI)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

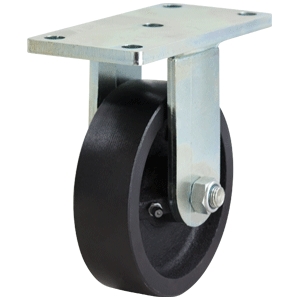

The R534CI from Richmond is a rigid frame castor and is fitted with a cast iron wheel. This rigid castor is in our heavy duty welded series range and has a top load capacity of 380kg. The R534CI is assembled with plain bearings on the castors axle. The rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The diameter of the cast iron wheel is 125mm, the wheel width is 38mm and you can order separately (Part Number: Ci532).

Description

Precision built for durability under extreme working conditions, the Heavy Duty Welded Series is ideal for the exhaustive demands of industrial environments when a low profile high load bearing castor is required. Featuring a precision machined swivel ball race provides an unrivalled ultra smooth swivel action and a king pin made of high tensile steel to withstand high side impact loads. Finished in an attractive zinc plating to provide corrosion resistance, Richmond can also supply the heavy duty welded series in stainless steel for sue in high corrosive environments.

Product Code R534Ci
Wheel Diameter (mm) 125
Frame Type Rigid
Wheel Width (mm) 38
Wheel Type Cast Iron
Wheel Code Ci532
Wheel Bearing Type Plain Bore
Castor Height (mm) 159
Swivel Radius (mm) 102
Maximum Load Capacity (kg) 380
Recommended Load Capacity (kg) 280
Barcode / GTIN
Rigid

Rigid
