100mm Rubber Wheel 70kg Capacity Castor (S4710)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

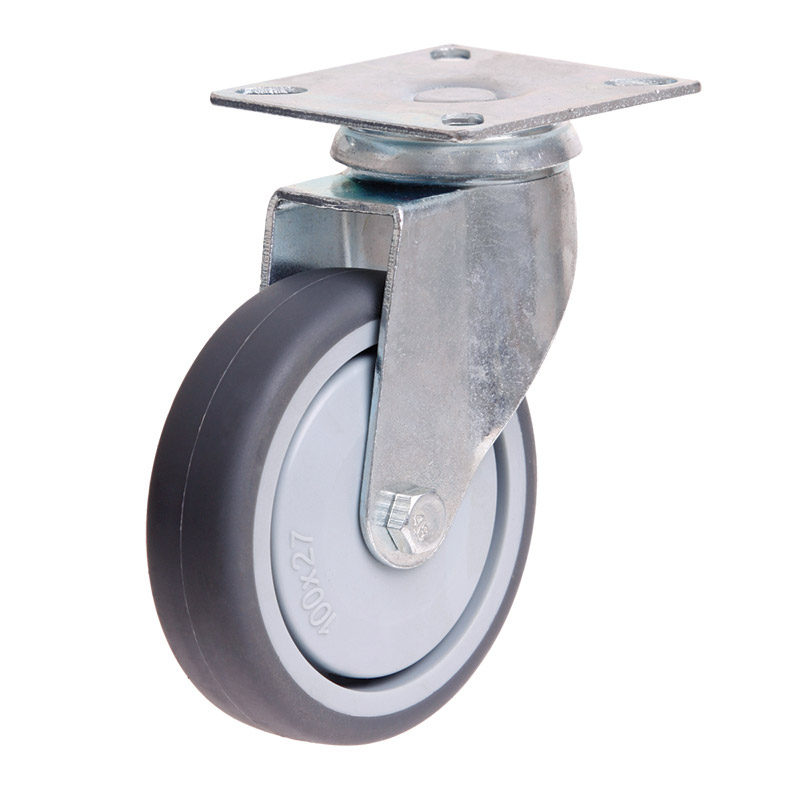

The S4710 from Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with an institutional rubber wheel. This swivel castor is assembled with ball bearings on the castors axle and can safely take loads up to 70kg. The swivel frame of this castor allows full swivel rotation to enable steering. The rubber wheel diameter is 100mm, the wheel width is 25mm and you can order separately (Part Number: IR4401). For a similar castor with a brake, see (S4710B)


Plate mounted, Richmond’s Utility Castor has endless light duty applications including wire baskets, display equipment and light trolley applications. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with the choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature , a must have for all small fabricating, retailers and home handy man purposes.

Product Code S4710
Wheel Diameter (mm) 100
Frame Type Swivel
Wheel Width (mm) 25
Wheel Type Institutional Rubber
Wheel Code IR4401
Wheel Bearing Type Ball Bearing
Castor Height (mm) 134
Swivel Radius (mm) 90
Maximum Load Capacity (kg) 70
Recommended Load Capacity (kg) 60
Utility Series Plate Castor Spec Sheet Download
Download CAD Drawing (STEP file) Download
