|Wheel Diameter (mm)||100|
|Frame Type||Swivel with Brake|
|Wheel Width (mm)||32|
|Wheel Type||Rebound Rubber|
|Wheel Bearing Type||Plain Bore|
|Castor Height (mm)||133|
|Swivel Radius (mm)||105|
|Bolt Hole Size (mm)||12|
|Maximum Load Capacity (kg)||100|
|Recommended Load Capacity (kg)||80|

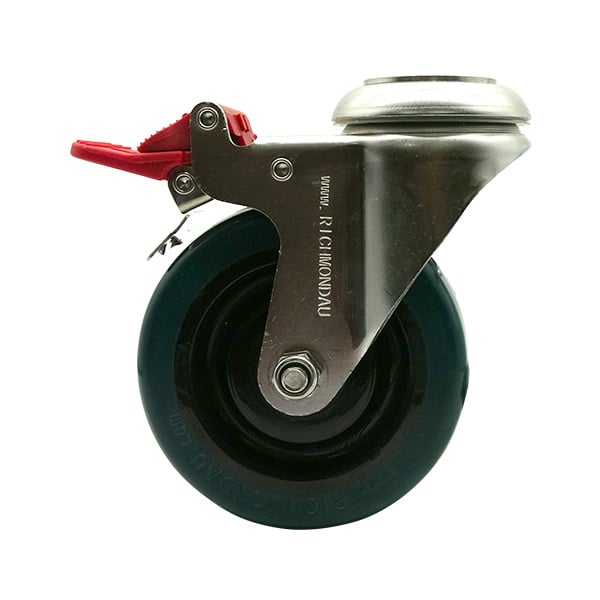

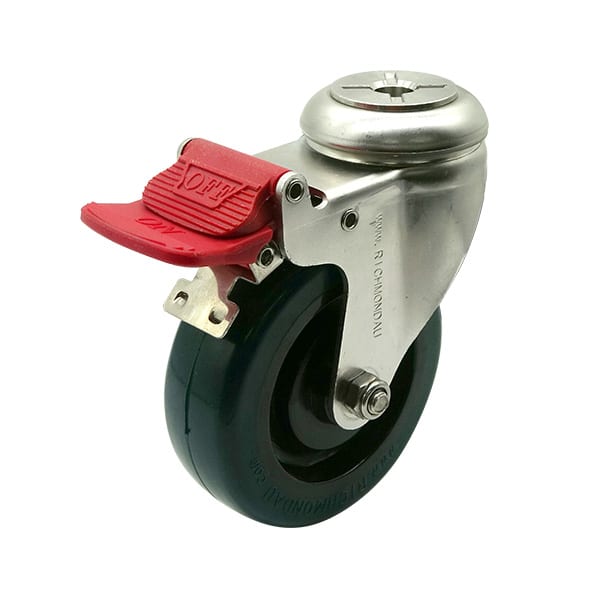

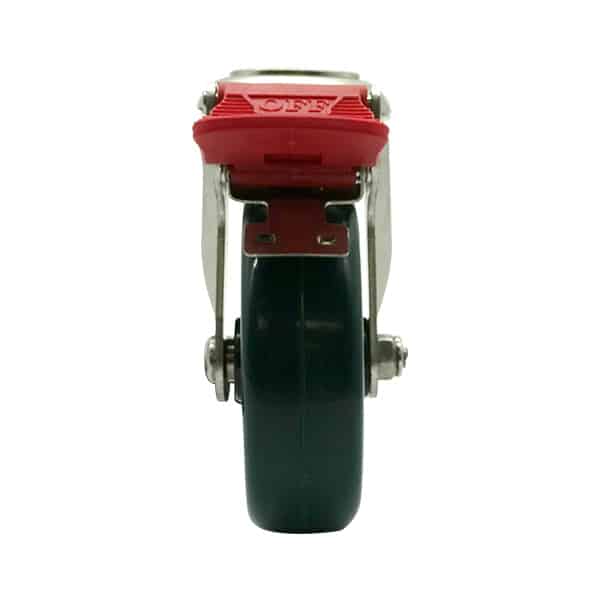

100mm Rebound Rubber Swivel Brake Castor (S4418B)
Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.
|Download CAD Drawing (STEP file)||Download|
