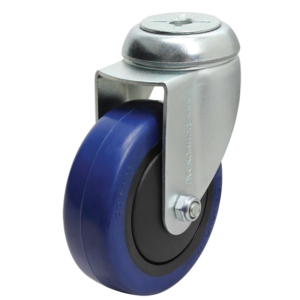

100mm Reb Rubber Swivel Single Bolt Castor (S4483D)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

This castor includes a directional lock  – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame. Ideal for use on mobile equipment in hospitals, nurseries, shops, industry and catering equipment the single bolt zinc durolite series can be fixed with a range of fittings to round or square tubing ensuring maximum functionality and performance. Available in a various colours for an aesthetically enhanced appearance designed to blend in with the equipment. This castor features a twin race swivel action for long life with pressed metal frame and zinc plated finish.

Product Code S4483D
Wheel Diameter (mm) 100
Frame Type Swivel with Directional Lock
Wheel Width (mm) 32
Wheel Type Rebound Rubber
Wheel Code RR4473
Wheel Bearing Type Ball Bearing
Castor Height (mm) 133
Swivel Radius (mm) 106
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 100
Recommended Load Capacity (kg) 80
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Swivel with Directional Lock

Swivel with Directional Lock
