100mm Poly Nylon Wheel 100kg Capacity Castor (S4478D)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

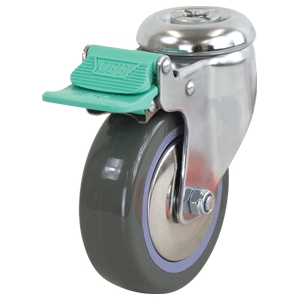

The S4478D by Richmond is a swivel frame castor and uses a polyurethane wheel. This swivel castor is one of our stainless steel elite bolt range and can safely take loads up to 100kg. The S4478D wheel is fitted with stainless steel ball bearings and is mounted with a bolt. This castors swivel frame allows the load to be steered. The overall polyurethane wheel diameter is 100mm, the wheel width is 27mm and can be ordered separately (PU4439). For the same castor without a direction lock, see S4478.

This castor includes a directional lock  – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code S4478D
Wheel Diameter (mm) 100
Frame Type Swivel with Directional Lock
Wheel Width (mm) 27
Wheel Type Polyurethane Tyred Nylon Centred
Wheel Code PU4439
Wheel Bearing Type Stainless Ball Bearing
Castor Height (mm) 133
Swivel Radius (mm) 90
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 100
Recommended Load Capacity (kg) 80
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Grade 304 Stainless Steel

Grade 304 Stainless Steel

Swivel with Directional Lock

Swivel with Directional Lock
