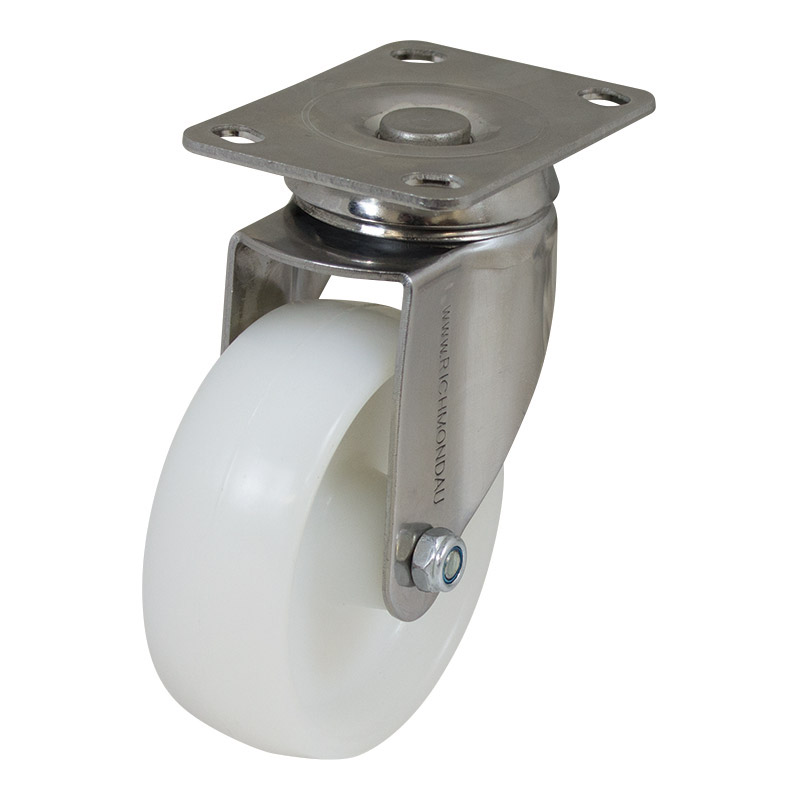

The S4488 from Richmond is a swivel frame castor and has a nylon wheel. This swivel castor is one of our stainless steel elite plate range and has a top load capacity of 100kg. The S4488 is assembled with plain bearings on the castors axle and is baseplate mount. The swivel frame design of this castor allows full swivel rotation to enable steering. The diameter of the nylon wheel is 100mm, the wheel width is 30mm and can be ordered separately (NY4417). This model can also be ordered with a brake (part number S4488B).
100mm Nylon Wheel 100kg Capacity Castor (S4488)
Frame Type: Swivel
$40.56 ex. GST
$44.62 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S4488 from Richmond is a swivel frame castor and has a nylon wheel. This swivel castor is one of our stainless steel elite plate range and has a top load capacity of 100kg. The S4488 is assembled with plain bearings on the castors axle and is baseplate mount. The swivel frame design of this castor allows full swivel rotation to enable steering. The diameter of the nylon wheel is 100mm, the wheel width is 30mm and can be ordered separately (NY4417). This model can also be ordered with a brake (part number S4488B).
Description
Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.
| Product Code | S4488 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 30 |
| Wheel Type | Nylon |
| Wheel Code | NY4417 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 133 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 100 |
| Recommended Load Capacity (kg) | 80 |
| Frame Construction | Pressed Metal |
| Frame Material | 304 Stainless Steel |
| Mounting Type | Plate Mount |
| Download CAD Drawing (STEP file) | Download |
|---|
