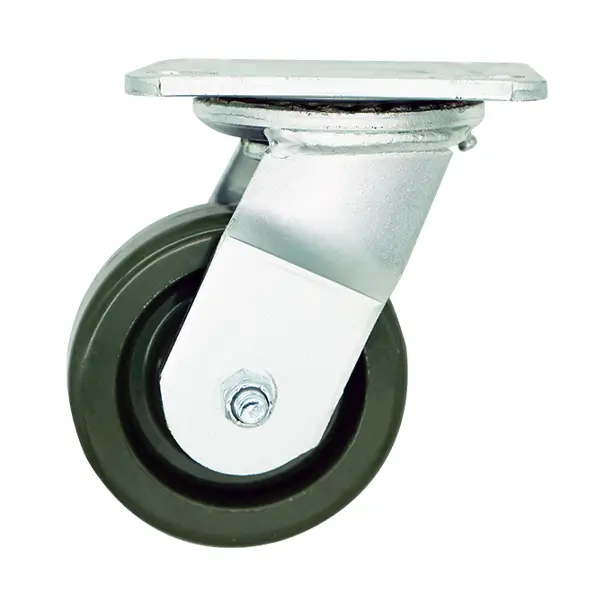

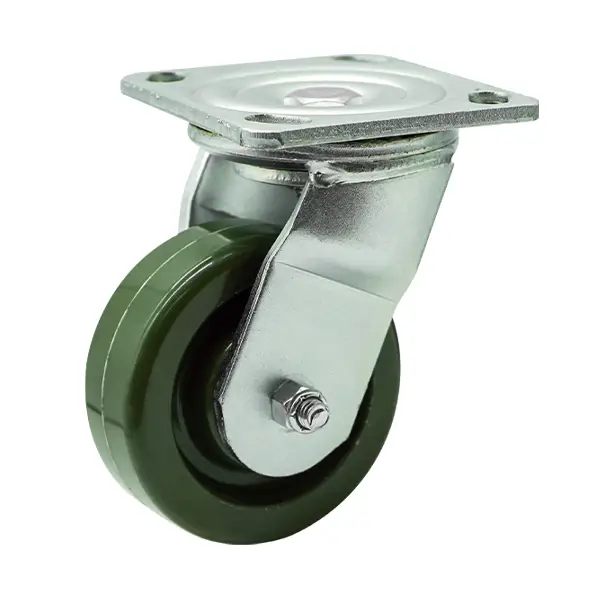

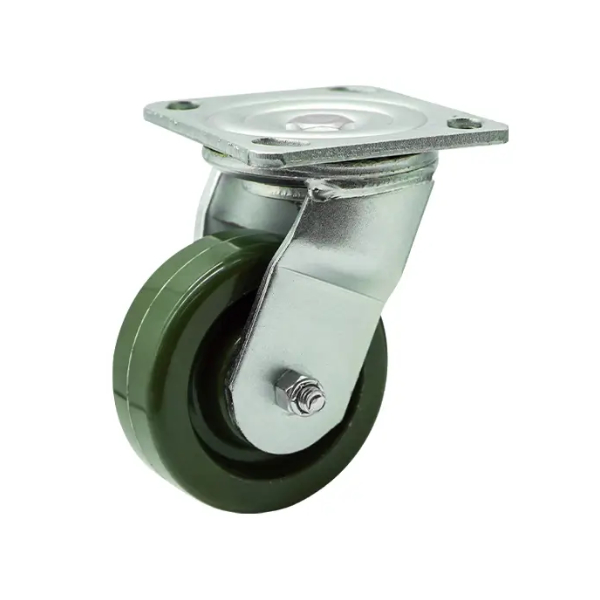

100mm High Temp Resin Wheel 300kg Capacity Castor (S4278)

300kg load capacity
High temp epoxy resin wheel sutiable for temperatures ranging from -20 to 240 degrees celsius
84mm swivel radius
142mm height
Heavy industrial swivel frame
Dual precision bearings
Wheel durometer shore D95

This castors frame is a swivel frame which allows the castor to swivel or rotate 360°.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing.

Product Code	S4278
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	38
Wheel Type	High Temp Epoxy Resin
Wheel Code	HT483-37
Wheel Bearing Type	Dual Precision Quad Bearings
Castor Height (mm)	142
Swivel Radius (mm)	84
Maximum Load Capacity (kg)	300
Temperature range (°C)	-20° to 240°
