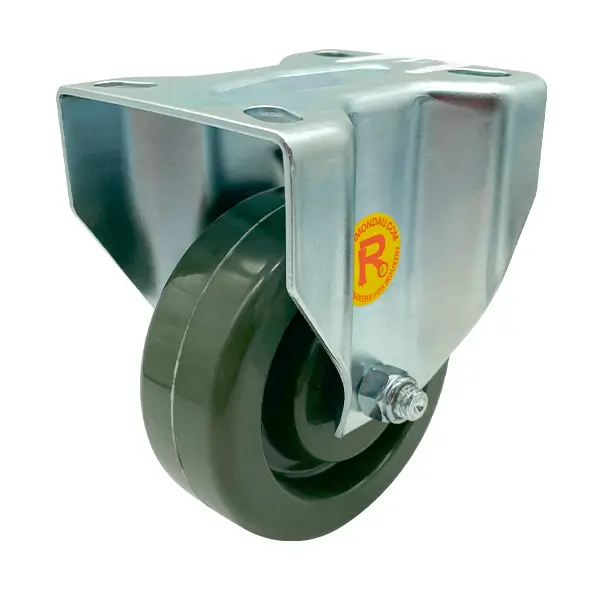

A rigid castor such as this one is generally used for straight line travel however when used with swivel castors, the load can be steered.
A rigid castor such as this one is generally used for straight line travel however when used with swivel castors, the load can be steered.
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | R4073 |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Rigid |
| Wheel Width (mm) | 36 mm |
| Wheel Type | High Temp Epoxy Resin |
| Wheel Code | HT483-37 |
| Wheel Bearing Type | Dual Precision Quad Bearings |
| Castor Height (mm) | 130 mm |
| Maximum Load Capacity (kg) | 300 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Temperature range (°C) | -20° to 240° |
