100mm Glass Filled Nylon Wheel 200kg Capacity Castor (R4061)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

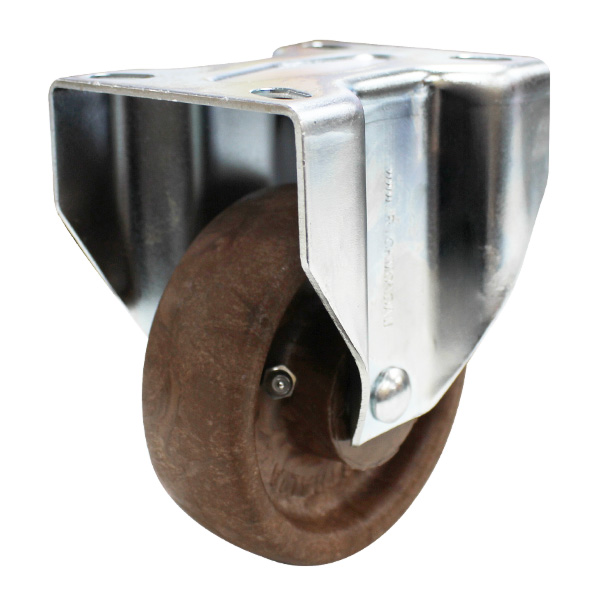

The R4061 manufactured by Richmond is a rigid frame castor and has a glass filled nylon wheel. This rigid castor is part of our 300 series plate range and has a maximum capacity of 200kg. The R4061 wheel is fitted with plain bearings and is baseplate mount. The rigid frame design of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The glass filled nylon wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (GF412).


Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code R4061
Wheel Diameter (mm) 100
Frame Type Rigid
Wheel Width (mm) 35
Wheel Type Glass Filled Nylon
Wheel Code GF412
Wheel Bearing Type Plain Bore
Castor Height (mm) 130
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Temperature range (°C) -30° to 240°
Download CAD Drawing (STEP file) Download
-30˚ to 240˚C Wheel Temp

-30˚ to 240˚C Wheel Temp
