100mm GF Nylon Wheel 200kg Capacity Castor (S4136)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

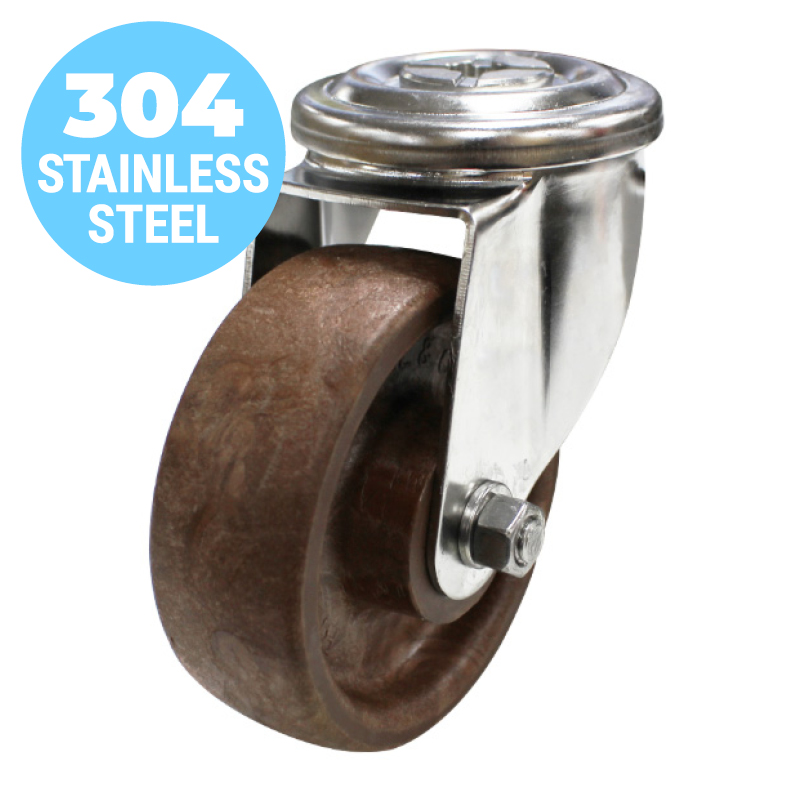

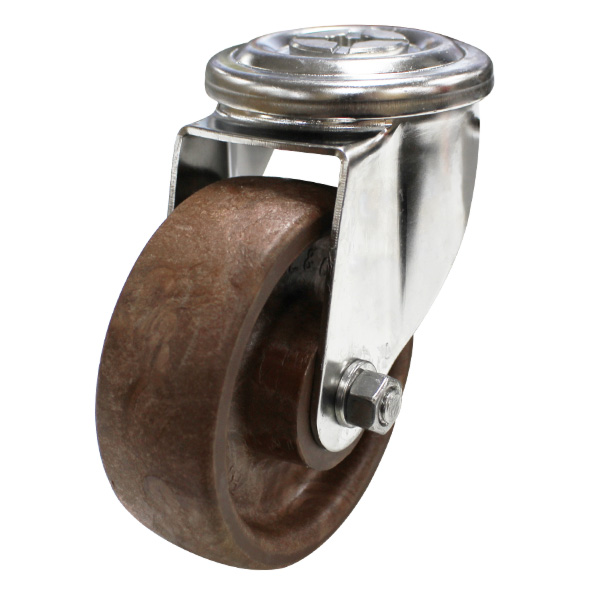

The S4136 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and has a glass filled nylon wheel. This swivel castor is in our stainless steel excel bolt range and can hold loads up to 200kg. The S4136 uses plain bearings for wheel rotation and is mounted with a bolt. The swivel frame of this castor permits the load to be steered. The glass filled nylon wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: GF412).

Description

Heavy duty pressed stainless steel frame combined with full stainless componentry make the Excel Series the ideal choice for use in wet areas, frequent wash down applications and food and health industries. When hygiene is of the utmost importance, this bolt hole castor has the ability to be fitted to an array of equipment and trolleys with various fittings including; pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt.

Product Code S4136
Wheel Diameter (mm) 150
Frame Type Swivel
Wheel Width (mm) 50
Wheel Type Glass Filled Nylon
Wheel Bearing Type Plain Bore
Castor Height (mm) 130
Swivel Radius (mm) 90
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Grade 304 Stainless Steel

Grade 304 Stainless Steel

Swivel

Swivel
