100mm Cast Iron Wheel 400Kg Capacity Castor (R440)

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

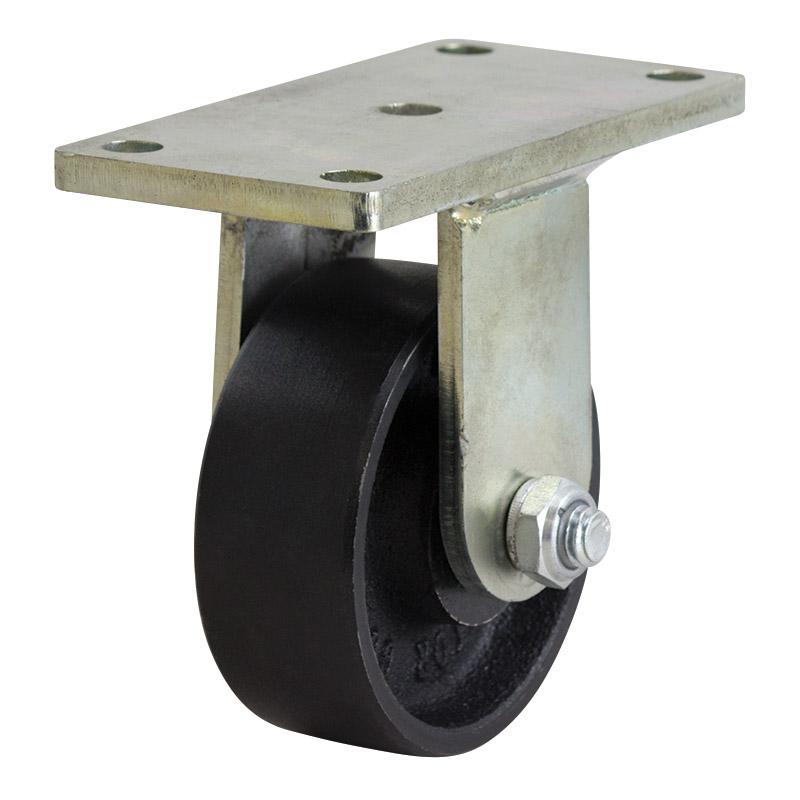

The R440 manufactured by Richmond Wheel and Castor Co. is a rigid frame castor and is fitted with a cast iron wheel. This rigid castor is in our heavy duty welded series range and has a maximum capacity of 400kg. The R440 is assembled with ball bearings on the castors axle. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The cast iron wheel diameter is 100mm, the wheel width is 38mm and you can order separately (Part Number: Ci400).

View Specifications View Specifications Shipping Information

Description

Precision built for durability under extreme working conditions, the Heavy Duty Welded Series is ideal for the exhaustive demands of industrial environments when a low profile high load bearing castor is required. Featuring a precision machined swivel ball race provides an unrivalled ultra smooth swivel action and a king pin made of high tensile steel to withstand high side impact loads. Finished in an attractive zinc plating to provide corrosion resistance, Richmond can also supply the heavy duty welded series in stainless steel for sue in high corrosive environments.

Product Code	R440Ci
Wheel Diameter (mm)	100
Frame Type	Rigid
Wheel Width (mm)	38
Wheel Type	Cast Iron
Wheel Code	Ci400
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	132
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	400
Recommended Load Capacity (kg)	300
Barcode / GTIN
