100mm Aluminium Bolt Hole 300 Series Castor (S4232)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

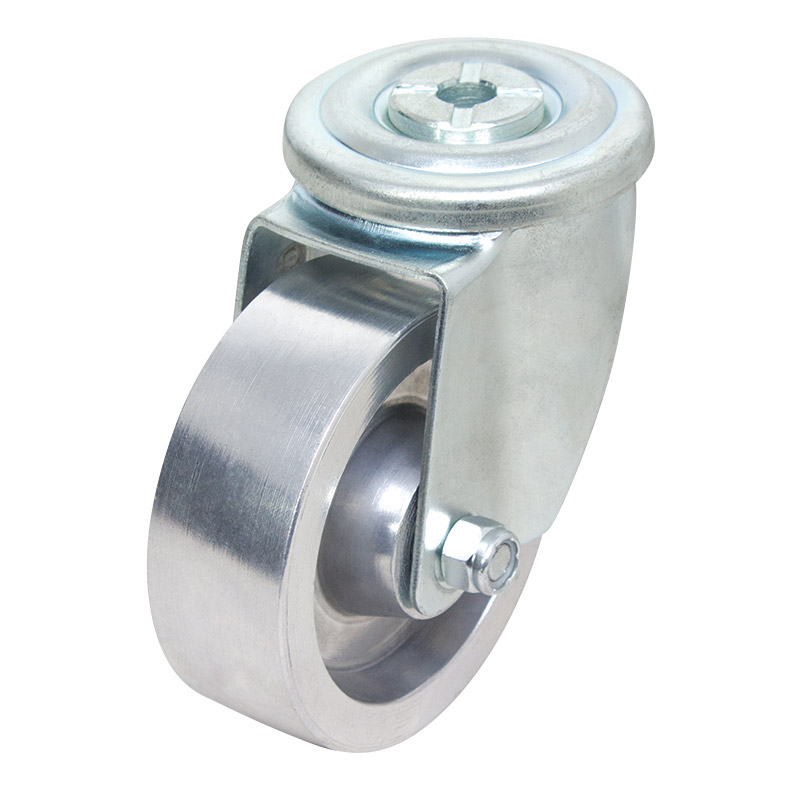

The S4232 from Richmond is a swivel frame castor and features an aluminium wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 200kg. The S4232 uses oilless bushs for wheel rotation and is bolt mounted. The swivel frame design of this castor allows the load to be steered. The diameter of the aluminium wheel is 100mm, the wheel width is 36mm and you can order separately (Part Number: AL472).


Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code S4232
Wheel Diameter (mm) 100
Frame Type Swivel
Wheel Width (mm) 35
Wheel Type Aluminium
Wheel Code AL472
Wheel Bearing Type Oilless DU Bush
Castor Height (mm) 130
Swivel Radius (mm) 125
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Temperature range (°C) -30° to 300°
Download CAD Drawing (STEP file) Download
-30˚ to 280˚C Wheel Temp

-30˚ to 280˚C Wheel Temp

12mm Bolt Hole

12mm Bolt Hole
