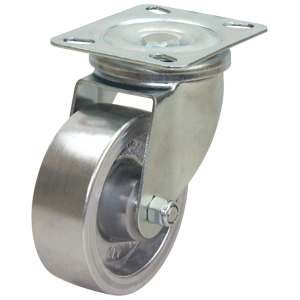

The S4066 by Richmond Wheel and Castor Co. is a swivel frame castor and features an aluminium wheel. This swivel castor is one of our 300 series plate range and has a maximum capacity of 200kg. The S4066 uses al bronze bushs for wheel rotation and is plate mount. The swivel frame design of this castor allows the castor to swivel 360°. The overall aluminium wheel diameter is 100mm, the wheel width is 36mm and you can order separately (Part Number: AL474).
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S4066 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 36 |
| Wheel Type | Aluminium |
| Wheel Code | AL474 |
| Wheel Bearing Type | Bronze Bush |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Temperature range (°C) | -30° to 400° |
| Download CAD Drawing (STEP file) | Download |
|---|
