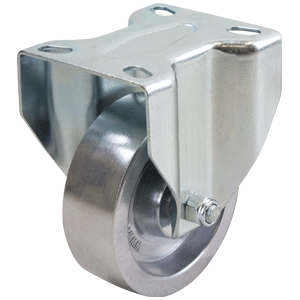

The R4059 by Richmond is a rigid frame castor and has an aluminium wheel. This rigid castor is part of our 300 series plate range and can safely take loads up to 200kg. The R4059 is assembled with oilless bushs on the castors axle and is plate mount. The rigid frame design of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The aluminium wheel diameter is 100mm, the wheel width is 36mm and you can order separately (Part Number: AL473).
100mm Aluminium Wheel, 200kg Capacity Rigid Castor (R4059)
Frame Type: Rigid
$41.60 ex. GST
$45.76 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The R4059 by Richmond is a rigid frame castor and has an aluminium wheel. This rigid castor is part of our 300 series plate range and can safely take loads up to 200kg. The R4059 is assembled with oilless bushs on the castors axle and is plate mount. The rigid frame design of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The aluminium wheel diameter is 100mm, the wheel width is 36mm and you can order separately (Part Number: AL473).
Description
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | R4059 |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Rigid |
| Wheel Width (mm) | 36 mm |
| Wheel Type | Aluminium |
| Wheel Code | AL473 |
| Wheel Bearing Type | Oilless DU Bush |
| Castor Height (mm) | 130 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 150 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Temperature range (°C) | -30° to 280° |
| Download CAD Drawing (STEP file) | Download |
|---|
