100mm Aluminium Wheel 180kg Capacity Castor (R4141)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

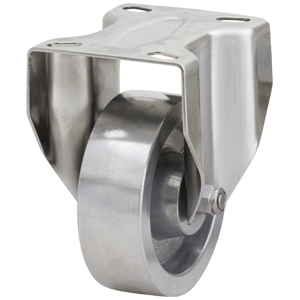

The R4141 from Richmond is a rigid frame castor and features an aluminium wheel. This rigid castor is one of our stainless steel excel plate range and can safely take loads up to 180kg. The R4141 uses plain bearings for wheel rotation and is baseplate mount. The rigid frame of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The outside diameter of the aluminium wheel is 100mm, the wheel width is 35mm and can be ordered separately (AL474).


Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

Product Code R4141
Wheel Diameter (mm) 100
Frame Type Rigid
Wheel Width (mm) 36
Wheel Type Aluminium
Wheel Code AL474
Wheel Bearing Type Oilless DU Bush
Castor Height (mm) 133
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 110
Download CAD Drawing (STEP file) Download
Grade 304 Stainless Steel

Grade 304 Stainless Steel
