THE POWERHOUSE IN YOUR WAREHOUSE

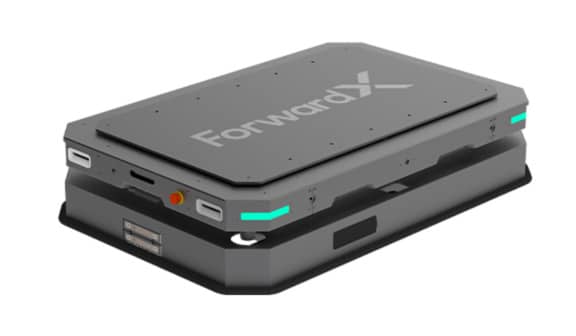

MAX 600-L
The Max series brings all the flexibility of the Flex Series AMRs in a heavier duty package. The max features one of the highest load capacities offered among AMR-enabled picking solutions. It also features a wide platform, making it perfect for handling the larger and heavier goods in your warehouse.
Max series AMRs are well suited to pallet and case picking for B2B retail store replenishment and B2C eCommerce fulfilment.
The Max 600-L is equipped with a lifting function that allows the AMRs to autonomously locate pallets or larger racks and work with forklifts to automate receiving, putaway, replenishment, and shipping workflows.

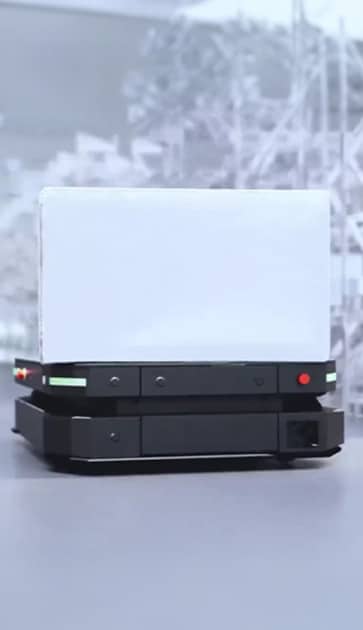

1,200kg Load Capacity
One of the highest capacities offered among AMR-enabled picking solutions.
A high load capacity makes the Max suitable for case-and pallet-loads.

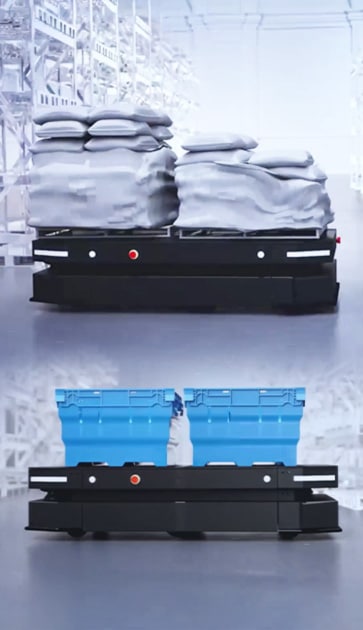

Spacious Platform Size
Maximum load surface up to 1380 x 900 x 320mm.
The large surface makes the Max the most versatile AMR for your larger goods.
360° Obstacle Avoidance
Equipped with laser scanners, depth cameras, 2D cameras, and more.
Full 360° obstacle detection and avoidance means guaranteed safety.

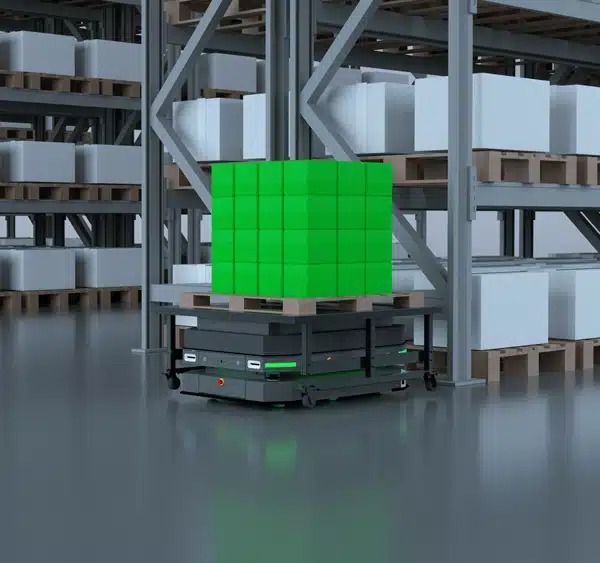

Lifting Functionality
Equipped with functions for racks or pallets.
Autonomous pallet or rack pick-up and drop-off significantly reduces labour intensity.
What is an AMR?
AMRs (Autonomous Mobile Robots) are a type of autonomous robot that uses built-in sensors and technology to autonomously move goods around factories and warehouses without the need for guides and markers.
AMRs are an adaptable, flexible, and accessible solution for improving order picking, packing, pallet transport, trolley/cage towing, production line handling, and more! With a good AMR in place, you will increase picking productivity and reduce wasted movement in your operations, making you and your team more efficient.
IMPROVE YOUR OPERATIONS WITH THE MAX 600
The Max AMRs to autonomously locate pallets or larger racks and work with forklifts to automate receiving, putaway, replenishment, and shipping workflows.
Case- and Pallet-Picking
Rack and Pallet Movement
Workstation Docking
Max 600
Max 600-L
DIMENSIONS
Length
Width
Height
Height (with extension)
Ground Clearance
1,380 mm (58.33 in)
900 mm (35.43 in)
320 mm (12.60 in)
–
35 mm (1.37 in)
1,380 mm (58.33 in)
900 mm (35.43 in)
320 mm (12.60 in)
335 mm (13.18 in)
35 mm (1.37 in)
LOAD CAPACITY
Max. Load Capacity
Configuration
Lifting Height
1,200 kg
–
–
1,200 kg
●
60mm (2.36 in)
NAVIGATION & POSITIONING
Navigation Mode
Positioning Mode
Natural/Road Network/Hybrid/Flow
Laser SLAM/Visual Tag/Visual Semantics
COMMUNICATION
Wi-Fi and Cellular Network
Yes (4G/5G, Optional)
ACCESSORIES
