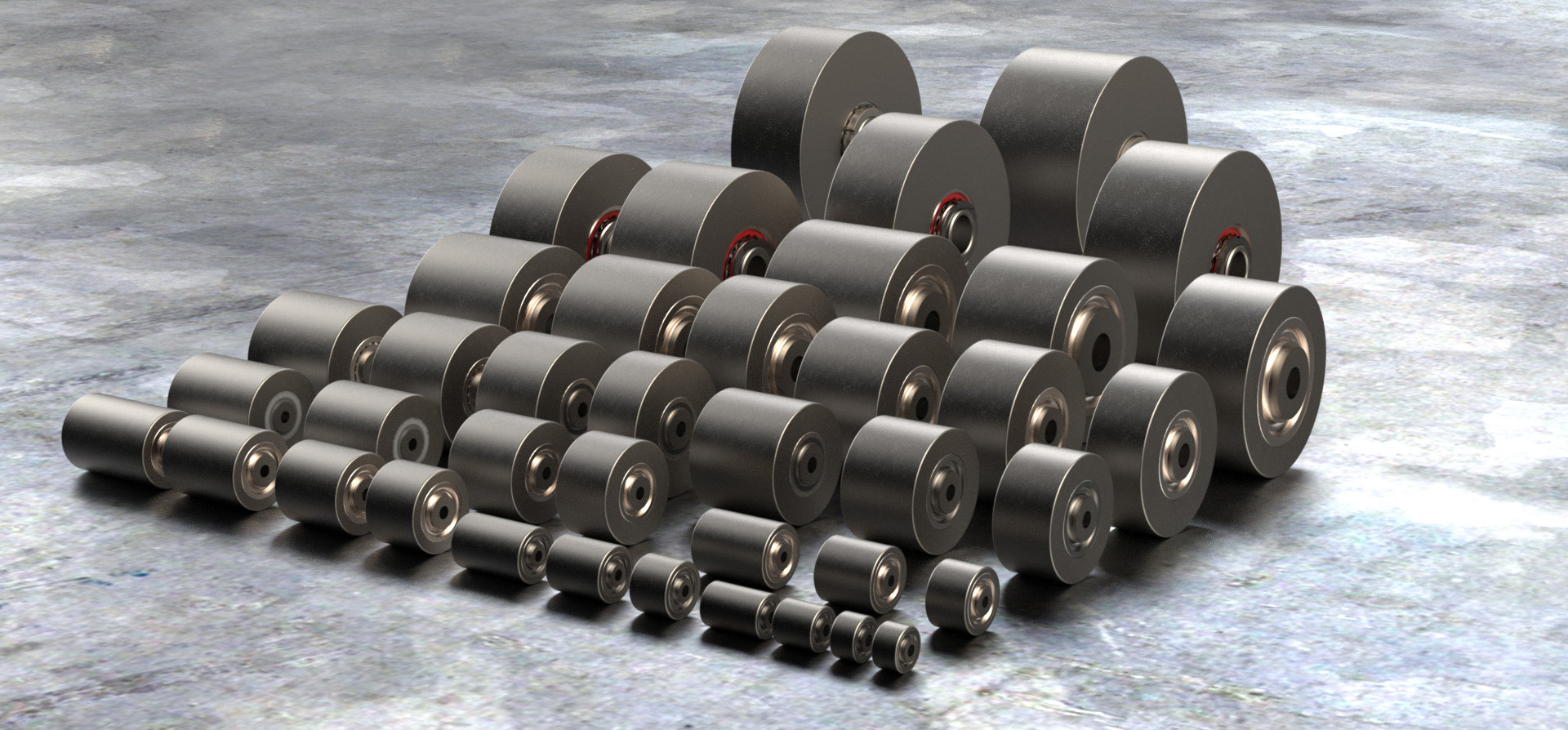

Solid steel wheels offer the highest wheel load capacity for a given wheel size. They are extremely durable for heavy duty wheel applications such as supporting the rotation of process and manufacturing equipment, or trolley wheels traveling on reinforced concrete or steel surfaces. Steel wheels offer the lowest rolling resistance of any wheel material, reliably carrying high to extremely high loads. Our standard steel wheels are CNC machine turned from solid billet forgings. This creates the toughest, most durable wheel with no risk of brittleness which is common in comparable cast iron wheels.

Each standard configuration is supplied with reducer bushings as standard, allowing you to incorporate a standard commercial bolt as the wheel axle (securing the wheel between 2 side plates). Alternatively, the reducers can be removed, allowing the wheel to be mounted to a machined axle which may better suit your fitment/project requirements.

Not sure what you need? Call our engineering team now on 1300 474 246.

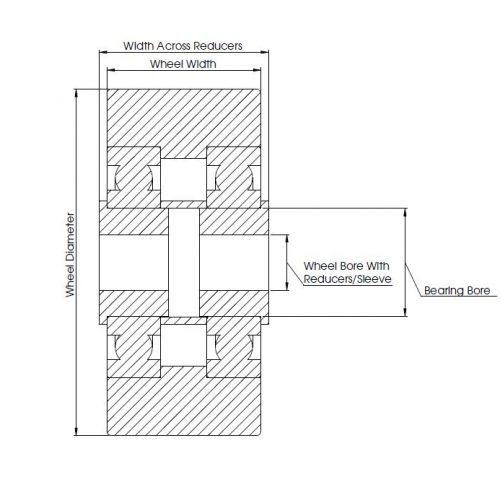

Standard Dimensions

Part Number Wheel Diameter (mm) Wheel Width (mm) Bearing Bore (mm) Wheel Bore w/ Reducers/Sleeve Wheel Width Across Reducers (mm) Wheel Load Capacity (kg) PDF Download CAD Model Download
ST50X30 50 30 20MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 36 350 Download Download
ST50X50 50 50 20MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 56 500 Download Download
ST50X75 50 75 20MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 81 500 Download Download
ST65X50 65 50 20MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 56 800 Download Download
ST65X75 65 75 20MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 81 1000 Download Download
ST65X100 65 100 20MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 106 1200 Download Download
ST75X50 75 50 25MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 56 1200 Download Download
ST75X75 75 75 25MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 81 1500 Download Download
ST75X100 75 100 25MM BB 13MM ID (TO SUIT M12 OR 1/2" BOLT) 106 1500 Download Download
ST100X75 100 75 30MM BB 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 81 1800 Download Download
ST100X100 100 100 30MM BB 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 106 2000 Download Download
ST100X125 100 125 30MM BB 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 131 2000 Download Download
ST100X150 100 150 30MM BB 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 156 2000 Download Download
ST125X75 125 75 30MM BB 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 81 1800 Download Download
ST125X100 125 100 30MM BB 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 106 2000 Download Download
ST125X125 125 125 30 DOUBLE ROW ANGULAR CONTACT BBs 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 131 2500 Download Download
ST125X150 125 150 30 DOUBLE ROW ANGULAR CONTACT BBs 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) 156 2500 Download Download
ST150X75 150 75 40MM BB 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) 85 2750 Download Download
ST150X100 150 100 40MM BB 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) 110 2750 Download Download
ST150X125 150 125 40 DOUBLE ROW ANGULAR CONTACT BBs 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) 135 3500 Download Download
ST150X150 150 150 40 DOUBLE ROW ANGULAR CONTACT BBs 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) 160 3500 Download Download
ST175X75 175 75 40 DOUBLE ROW ANGULAR CONTACT BBs 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) 80 3500 Download Download
ST175X100 175 100 40 DOUBLE ROW ANGULAR CONTACT BBs 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) 110 3750 Download Download
ST175X125 175 125 40 DOUBLE ROW ANGULAR CONTACT BBs 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) 135 4000 Download Download
ST175X150 175 150 40 DOUBLE ROW ANGULAR CONTACT BBs 24.2MM ID (TO SUIT M24 BOLT) 160 4000 Download Download
ST200X75 200 75 50MM BB 30.2MM ID (TO SUIT 30MM BOLT) 85 4500 Download Download
ST200X100 200 100 50MM BB 30.2MM ID (TO SUIT 30MM BOLT) 110 5000 Download Download
ST200X125 200 125 50MM BB 30.2MM ID (TO SUIT 30MM BOLT) 135 5500 Download Download
ST200X150 200 150 50MM BB 30.2MM ID (TO SUIT 30MM BOLT) 160 5250 Download Download
ST225X100 225 100 70MM BB 36.2MM ID (TO SUIT M36 BOLT) 110 5500 Download Download
ST225X150 225 150 70MM BB 36.2MM ID (TO SUIT M36 BOLT) 160 6000 Download Download
ST225X175 225 175 70MM BB 36.2MM ID (TO SUIT M36 BOLT) 185 6500 Download Download
ST225X200 225 200 70MM BB 36.2MM ID (TO SUIT M36 BOLT) 210 7500 Download Download
ST250X125 250 125 80MM BB 42.2MM ID (TO SUIT M42 BOLT) 145 7750 Download Download
ST250X150 250 150 80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT 42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC 170 8500/1200/15000 Download Download
ST250X200 250 200 80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT 42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC 220 9500/1350/16500 Download Download
ST300X125 300 125 100MM BB/80MM SPHERICAL ROLLER + HT M52 PRECISION BOLT BY RWC 160 10000/14000 Download Download
ST300X150 300 150 100MM BB/80MM TAPERED ROLLER OR SPHERICAL ROLLER + HT M52 PRECISION BOLT BY RWC 175 120000/1750 Download Download
ST350/125 350 125 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT M60 PRECISION BOLT BY RWC 160 1400/20000 Download Download
ST350X150 350 150 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT M60 PRECISION BOLT BY RWC 175 1600/25000 Download Download
ST350X200 350 200 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT M60 PRECISION BOLT BY RWC 220 18000/28000/32000 Download Download
ST400X150 400 150 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT M60 PRECISION BOLT BY RWC 185 2500/30000/3500 Download Download
ST400X200 400 200 100MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER/ + HT/ + HIGH TENSILE HT M70/M80 PRECISION BOLT BY RWC 225 30000/3500/40000 Download Download

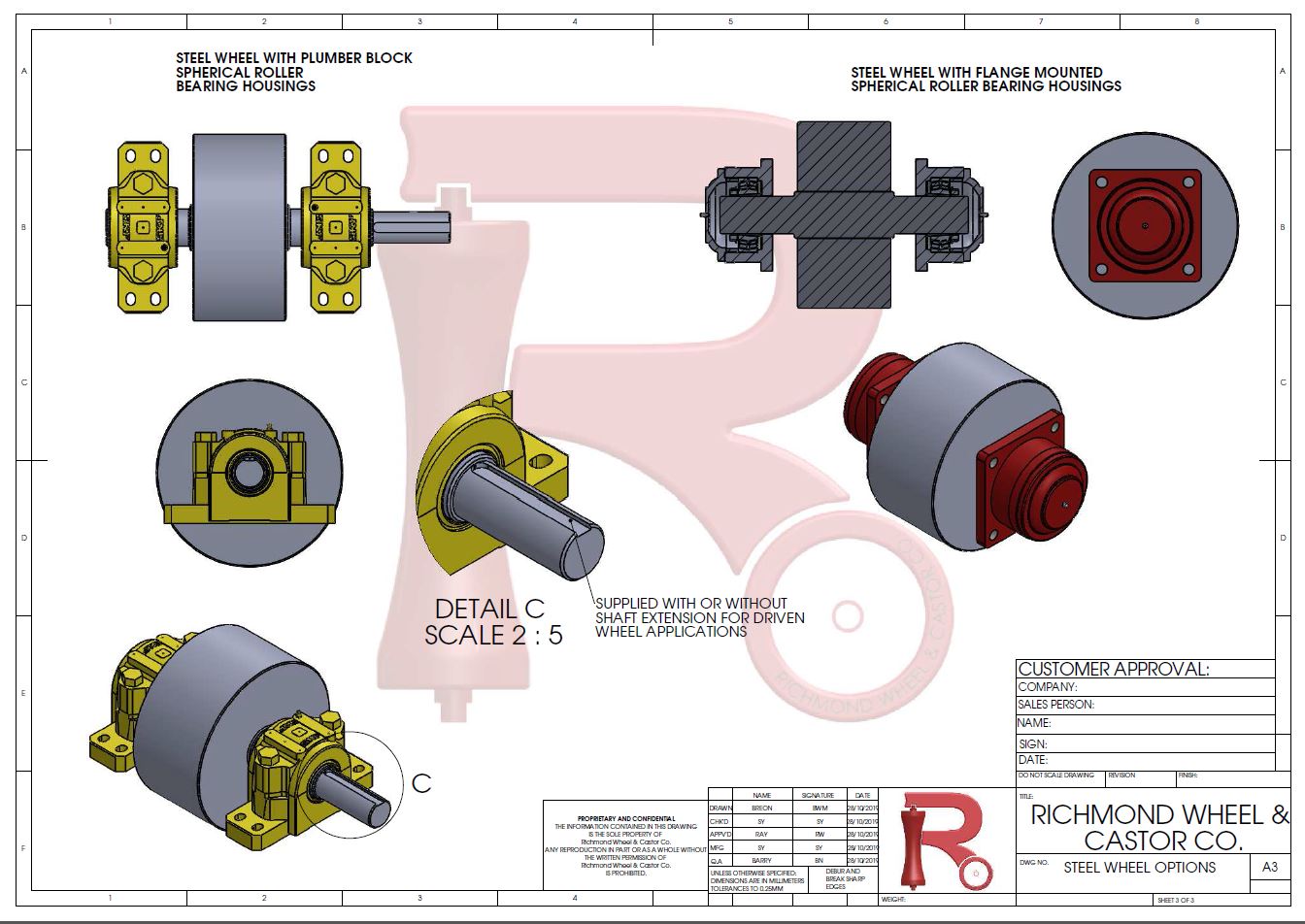

Standard Wheel Configuration Options

If our standard wheel configuration/capacity options don’t quite meet your project requirements, below are some examples of typical steel wheel configurations we can manufacture.

Steel Wheels — the Perfect Choice for Extreme Use

If you need to move heavy loads, particularly on guided tracks such as metal rails, steel wheels from Australia are the perfect choice. They’re highly resilient and can handle exceptionally heavy loads in a variety of extreme conditions.

Considerations when Choosing the Correct Steel Wheels

Careful selection is essential to get the correct wheels since a failure to operate as required will be very serious. Whilst practical tests may be necessary in some cases, certain factors have to be taken into account and will aid your final choice:

  • Load capacity. Consider the maximum weight to be carried (tare plus load weight) and apportion this to the number of wheels to determine the required loading on each one. Since all wheels may not carry the load equally if the floor is uneven, you should allow for this by, for example, dividing by three rather than four wheels to determine the maximum load per wheel. Also note that specified capacities will be based on stated temperatures and speeds as well as on an even floor surface, so you should make allowances for this. Steel wheels have a very high load capacity. If the tracks cross or there are other sources of unevenness, this can cause impacts that exceed the load rating and result in damage. To avoid this, select wheels with a load capacity which exceeds that normally expected and so allow a reserve amount.
  • Resistance. Both the tractive resistance (the force needed to start a wheel moving) and the rolling resistance (the power need to keep it moving) depend on the wheel’s size, bearing and the surface composition of the floor. Bear this in mind when choosing and be aware that steel wheels have a very low resistance that results in smoother rolling.
  • Environmental. If wheels are required to operate in wet conditions, high temperatures or where chemicals are present, corrosion or other deterioration may result. Choosing wheels that are suitable for these conditions will avoid problems.

Get the Best Steel Wheels in Australia

By considering all characteristics and choosing correctly from our range of steel wheels, you can fit wheels that:

  • are suitable for applications where there is exposure to chemicals or where sparks cannot be tolerated due to the risk of explosion
  • are guided on tracks, beams or in channels
  • are exposed to high humidity or are fully immersed in liquid
  • have low rolling and tractive resistance so they start easily and run smoothly
  • can operate in extremes of temperature, from -50 to +800 degrees Celsius
  • suffer low wear and have a long working life
  • can be run on a variety of tracks of different materials and profiles.

Our stock of steel wheels is so wide and varied that you can find the right ones, whatever the application and the conditions under which they are to be used. If you are unsure, we can provide advice and technical support to help you select the most suitable wheels. The hardness, tensile strength and build quality mean every wheel is extremely durable and able to withstand the most testing of working environments.
