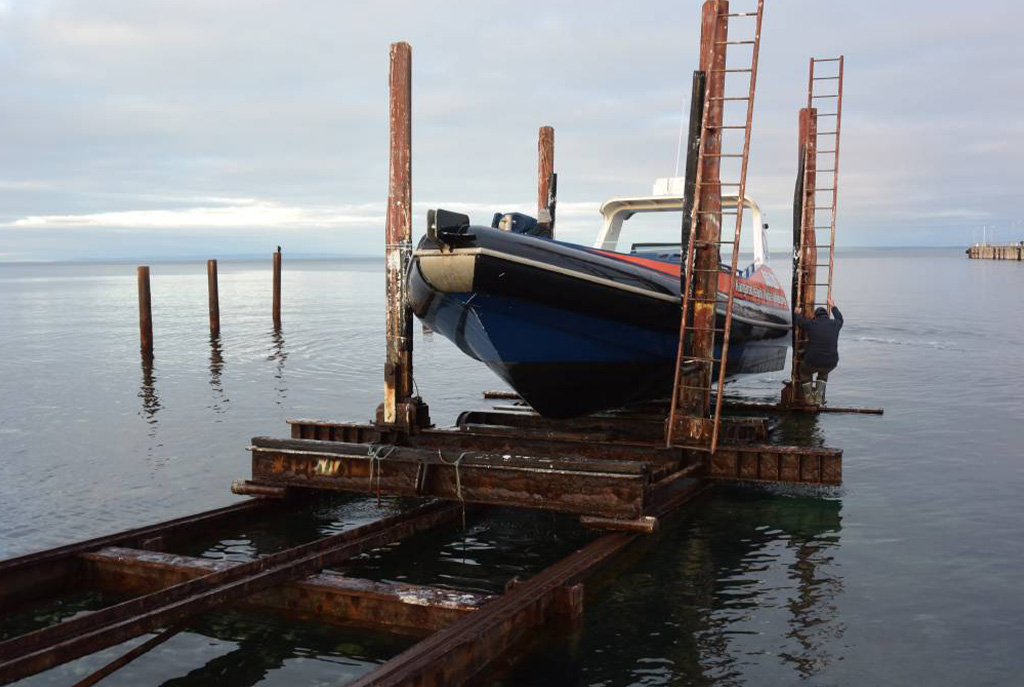

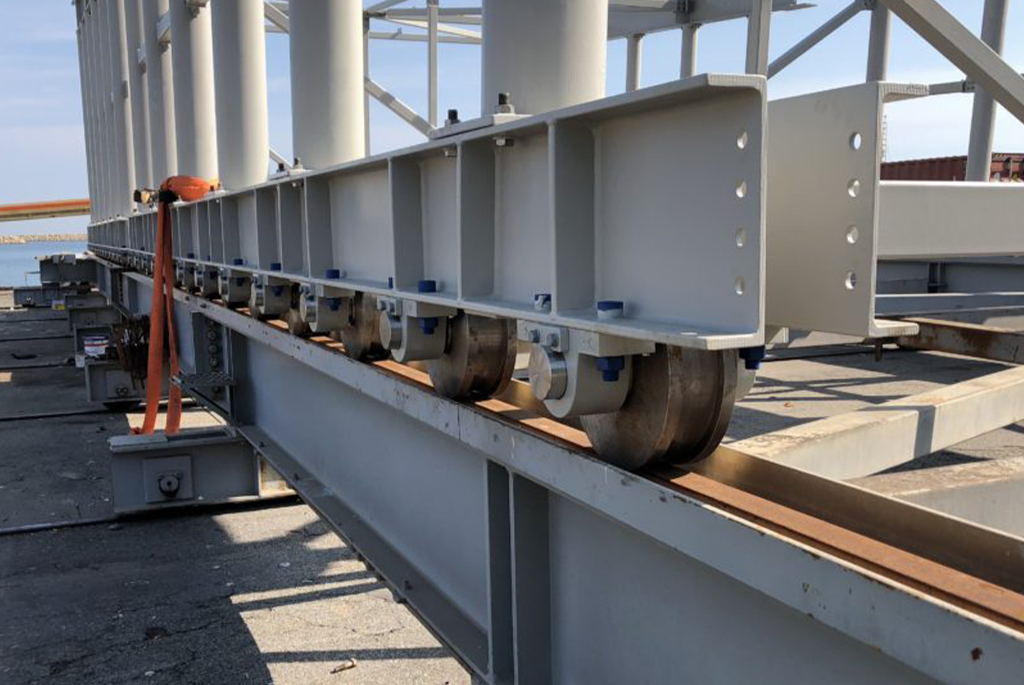

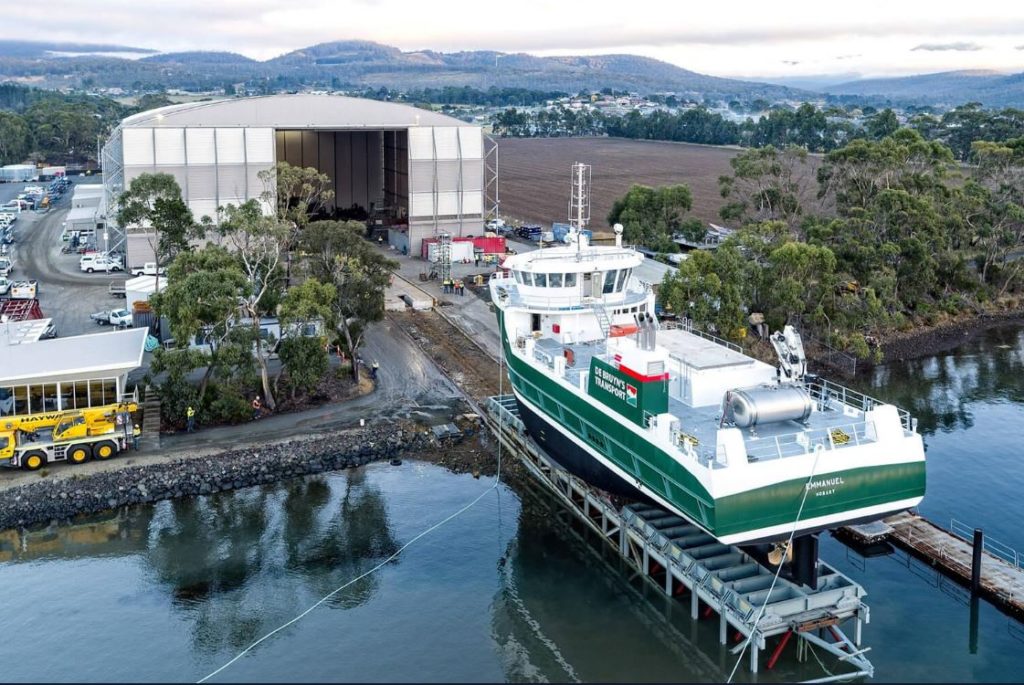

Our team has been manufacturing marine application wheel assemblies for fully and semi-submerged applications and vessel transport/slipways for over 5 decades. Applications range from light-duty council applications and private yacht club dry docking to super heavy-duty 1000 ton + capacity transport solutions for the biggest ship builders in the southern hemisphere.

Not sure what you need? Call our engineering team now on 1300 474 246.

Part
Number
Wheel Diameter (mm) Width Between Flanges (mm) Width Across Flanges (mm) Flange Diameter (mm) Axle
Diameter
Load Capacity (kg) Bearing
Type
PDF Download CAD Drawing Download
Marine Application Wheel Assembly 05 200 65 95 237 65mm (Imperial and alternative sizes available) 5000 + 2.5 X FOS Plain Bearing (Maintenance free & seal options avaliable) Download Download
Marine Application Wheel Assembly 10 250 65 95 287 75mm (Imperial and alternative sizes available) 10000 + 2.5 X FOS Plain Bearing (Maintenance free & seal options avaliable) Download Download
Marine Application Wheel Assembly 20 300 70 110 347 80mm (Imperial and alternative sizes available) 20000 + 2.5 X FOS Plain Bearing (Maintenance free & seal options avaliable) Download Download
Marine Application Wheel Assembly 40 350 85 135 397 100mm (Imperial and alternative sizes available) 40000 + 2.5 X FOS Plain Bearing (Maintenance free & seal options avaliable) Download Download
Marine Application Wheel Assembly 60 450 110 160 497 120mm (Imperial and alternative sizes available) 60000 + 2.5 X FOS Plain Bearing (Maintenance free & seal options avaliable) Download Download

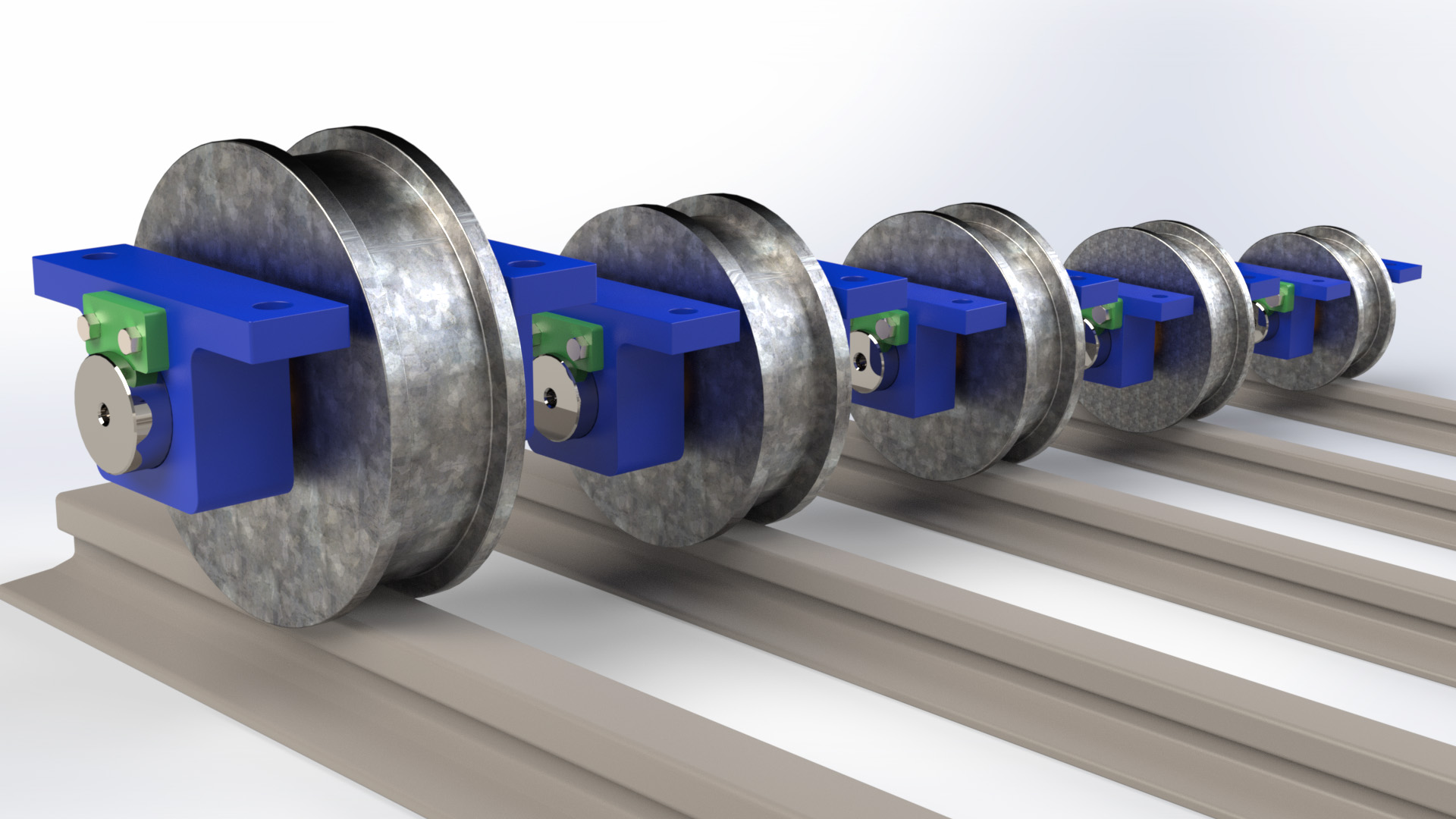

Standard Wheel Configuration Options

This series is typically made-to-order, allowing our team of onsite engineers to alter design elements such as geometry, mounting methods and any other specific design requirements, such as complete bolt-on wheel assemblies. We offer a range of finishes including steel. galvanised steel, stainless steel and fluropolymer coatings.
