| Product Code | S4354 |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 32 mm |
| Wheel Type | High Temp Polymer |
| Wheel Code | HT481 |
| Wheel Bearing Type | Oilless DU Bush |
| Castor Height (mm) | 133 mm |
| Swivel Radius (mm) | 90 mm |
| Maximum Load Capacity (kg) | 200 kg |
| Recommended Load Capacity (kg) | 175 kg |
| Frame Material | Zinc Plated Steel |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Mounting Type | Plate Mount |
| Recommended Bolt Size | 8 mm |
| Temperature range (°C) | -20° to 280° |

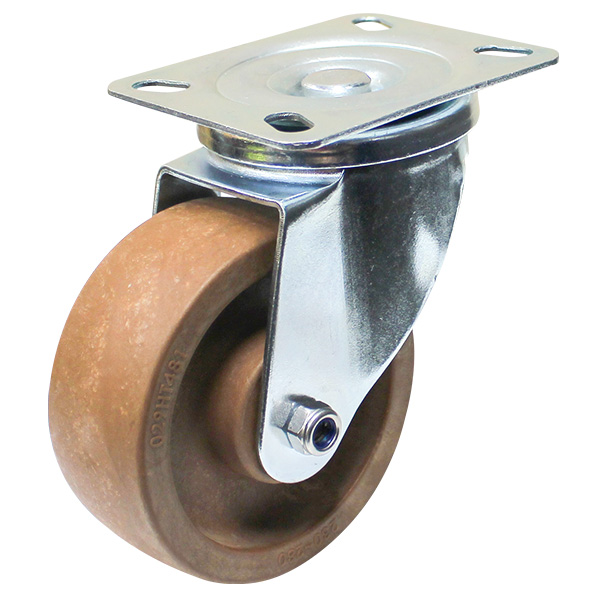

100mm High Temp Polymer Wheel, 200kg Capacity Swivel Castor (S4354)
$53.42 ex. GST
$58.76 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
