Frequently Asked Questions
What is a cantilever gate and how does it work?
A cantilever gate is a sliding gate suspended on carriages mounted to posts, with a steel channel underneath that glides over the fixed carriages. This allows smooth, trackless operation across uneven or obstructed ground.
What’s the difference between a cantilever gate and a tracked sliding gate?
A tracked gate rolls on a ground track, which can collect debris, while a cantilever gate hangs above the ground and glides over fixed carriages. Cantilever designs suit uneven surfaces but need more space and material due to their longer structure.
What is the channel in a cantilever gate system?
The channel is a C-shaped steel profile fixed to the underside of the gate, running the full length including the counterbalance. As the gate moves, the channel glides over carriage wheels, protecting moving parts from dirt and weather.
What is the counterbalance, and why is it important?
The counterbalance is the tail section behind the post that offsets the gate’s weight. It keeps the gate stable as it glides, preventing sagging or binding.
How do I choose the right channel for my gate?
Channel choice depends on gate weight and wind load. The GTR024-2 suits gates up to 1200 kg, while the GTR025-2 supports up to 1800 kg. Solid infill or windy sites may require the heavier channel even for lighter gates.
What wheel sets match the GTR channels?
The GTR024-2 uses the GTR027 5-wheel carriage set, while the GTR025-2 uses the GTR028 5-wheel set. Each is designed to fit its matching channel for safe operation.
Can I cut the cantilever channel to length?
Yes, channels come in 5.8 m lengths and can be cut, but only after calculating the full required length including counterbalance. Cutting incorrectly can result in an unsafe gate.
Does the ground under the gate need to be level?
No. Cantilever gates operate above the ground, so they can run over slopes, gravel, or grass. However, the gate and carriages must be installed level and plumb.

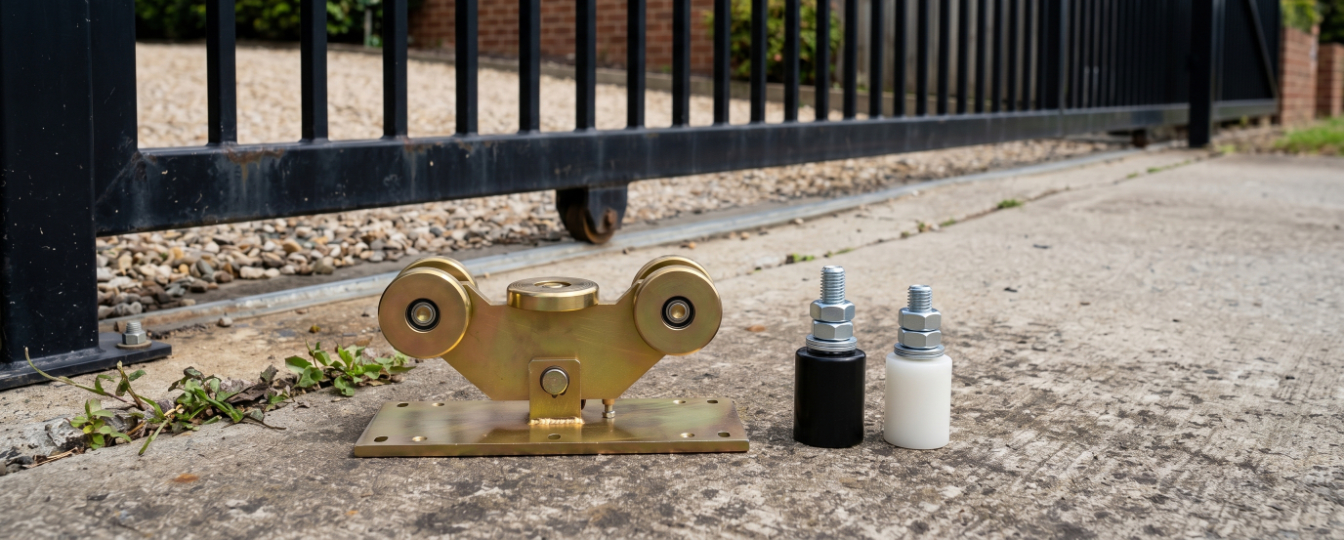

Cantilever Gate Hardware
Richmond supplies a professional range of Cantilever Gate Hardware designed for trackless sliding gate systems used across residential, commercial and industrial properties. Cantilever gates operate without a ground track, making them ideal for sites where uneven surfaces, debris, mud, gravel or heavy vehicle traffic make traditional sliding gate systems unsuitable.
Unlike standard sliding gates that rely on wheels running along a ground track, cantilever gates are fully supported by overhead or side-mounted roller systems. This allows the gate to “float” above the driveway surface while moving horizontally. The result is a low-maintenance sliding gate system that continues operating reliably in harsh outdoor and industrial environments.
Richmond’s Cantilever Gate Hardware range includes cantilever rollers, guide channels, mounting brackets and gate support components suitable for both manual and automated gate systems. These components are engineered for smooth gate travel, long-term outdoor durability and reliable operation under load.
Richmond also supplies Gate Hardware, Gate Motors, Automatic Gate Hardware, Sliding Gate Hardware, Swing Gate Hardware, Gate Post Caps and Hanging Door Hardware for complete gate and access system solutions.
Trackless Sliding Gate Systems for Industrial & Commercial Applications
Cantilever Gates are commonly used where traditional sliding gate tracks are impractical or difficult to maintain. Because the gate is suspended above the ground rather than rolling along a track, cantilever systems avoid issues caused by dirt, stones, water, mud, snow, leaves and general debris buildup.
This makes Cantilever Gate Hardware particularly suitable for industrial facilities, commercial sites, farms, logistics centres and high-traffic access points where forklifts, trucks and heavy vehicles regularly cross gate openings. Without a ground track, there is less risk of impact damage, obstruction or ongoing maintenance requirements.
Cantilever systems are also beneficial on sloped driveways, uneven surfaces or sites with poor drainage where conventional sliding gate tracks may become unreliable over time.
Product Types by Application
Cantilever Gate Rollers
Cantilever Gate Rollers support the full weight of the gate while allowing smooth horizontal movement during opening and closing.
Heavy-duty roller assemblies are designed for reliable long-term performance across industrial and outdoor environments.
Cantilever Guide Channels
Cantilever Guide Channels are mounted beneath the gate frame and engage with the roller system during operation.
These channels provide structural support and controlled gate alignment throughout gate travel.
Mounting Brackets & Support Hardware
Mounting brackets and structural support components assist with securing Cantilever Gate systems to posts and support structures.
These components help maintain correct gate positioning and stable operation under load.
Cantilever End Stops & Gate Guides
End stops and guide hardware assist with controlling gate travel limits and maintaining safe operation.
These components help reduce impact forces while supporting smooth and controlled gate movement.
Manual & Automated Cantilever Gates
Richmond Cantilever Gate Hardware is suitable for both manually operated and automated gate systems.
The hardware range is compatible with Richmond Gate Motors and Automatic Gate Hardware systems.
Heavy Duty Industrial Gate Systems
Cantilever systems are widely used for larger industrial and commercial gates requiring reliable operation across demanding environments.
Heavy-duty construction supports high-cycle gate use and larger gate frame loads.
Key Features of Richmond Cantilever Gate Hardware
Trackless Gate Operation
Cantilever Gates operate without a ground track, allowing gates to move freely above the driveway surface.
This reduces maintenance requirements and helps prevent operational issues caused by debris and surface obstructions.
Suitable for Uneven & Harsh Environments
Cantilever systems are ideal for gravel, dirt, sloped or uneven surfaces where traditional sliding gates may struggle to operate reliably.
This makes them suitable for industrial sites, rural properties and commercial access points.
Heavy Duty Roller Systems
Richmond Cantilever Rollers are designed for supporting heavy gate loads while maintaining smooth gate movement.
Sealed bearing systems assist with long-term outdoor performance and reduced maintenance.
Corrosion Resistant Outdoor Construction
Galvanised and zinc-coated steel components assist with protecting hardware against outdoor exposure and corrosion.
This supports reliable long-term use across Australian environmental conditions.
Compatible with Gate Automation Systems
Cantilever Gate Hardware can be integrated with Richmond Automatic Gate Motors and access control systems.
This allows businesses and property owners to create complete automated gate solutions.
Low Maintenance Gate Operation
Without a ground track to clean or maintain, Cantilever Gates generally require less ongoing maintenance compared to conventional sliding gates.
This helps reduce operational downtime and maintenance costs over time.
Applications by Industry
- Industrial Facilities: Cantilever Gate Hardware for heavy-duty vehicle access and secure industrial entry points.
- Commercial Properties: Trackless sliding gate systems for business premises and operational yards.
- Warehousing & Logistics: Automated cantilever gates for truck access and high-traffic loading areas.
- Rural & Agricultural Properties: Cantilever gates for farms, paddocks and remote access points.
- Residential Driveways: Low-maintenance sliding gate systems for homes and private properties.
- Infrastructure & Government Sites: Secure automated gate systems for controlled facility access.
- High Traffic Vehicle Access Areas: Sliding gate systems where forklifts, trucks and machinery regularly cross entrances.
Gate Hardware Solutions Across Australia
Richmond supplies a wide range of Cantilever Gate Hardware, Sliding Gate Systems and Automatic Gate Hardware across Australia. Our range is designed to support reliable gate operation, low-maintenance access control and long-term outdoor durability across residential, commercial and industrial environments.
With nationwide supply, in-house expertise and extensive experience supporting Australian gate and access industries, Richmond can assist with selecting suitable Cantilever Gate components and automation systems for your project requirements.
