Powered Electric Tug - 4000kg Capacity (TTR4000)

$9,500.00 ex. GST
$10,450.00 inc. GST

Available Online

International Shipping Available

Estimeted Freight Cost

Use my location

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Estimated Freight Cost

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

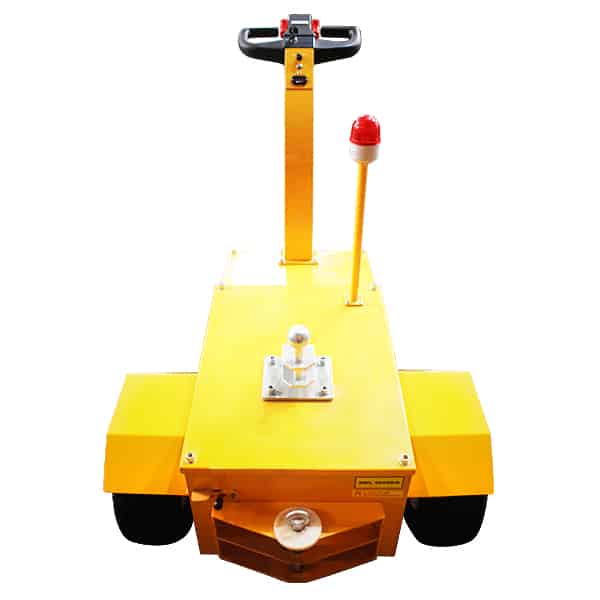

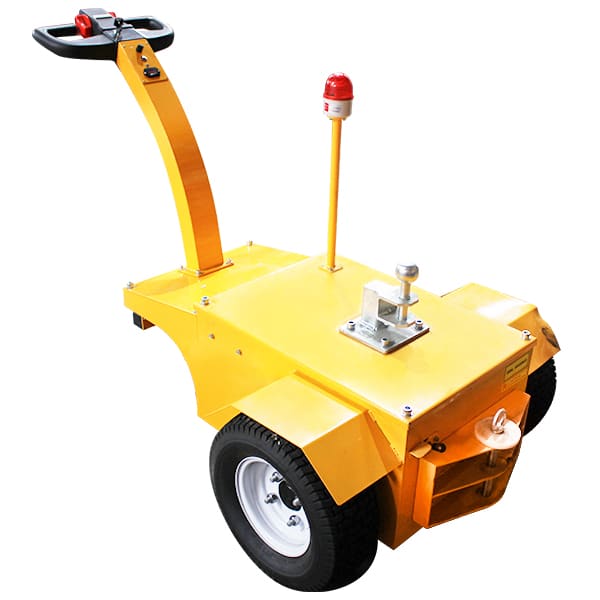

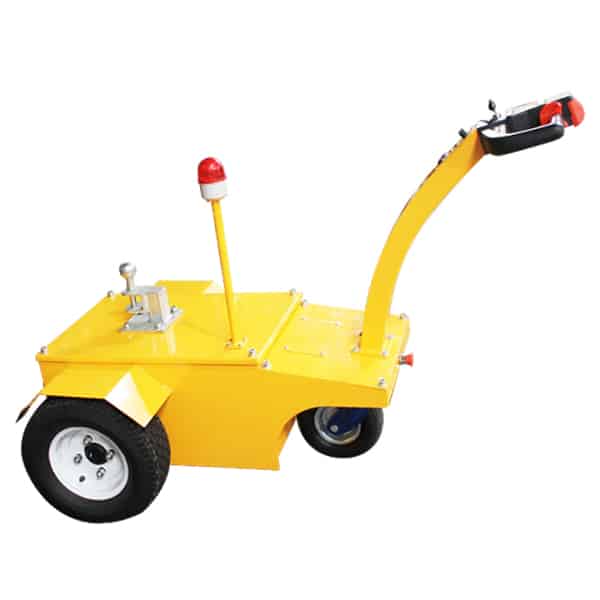

Heavy-duty electric tug for moving wheeled loads up to 4000kg in warehouses, production areas and commercial facilities.

  • 4000kg towing capacity: for heavy industrial loads
  • Battery-powered motor: for quiet, emission-free operation
  • Walk-behind control system: with ergonomic throttle
  • Compact and manoeuvrable design: for confined spaces
  • Emergency stop and warning horn: built in

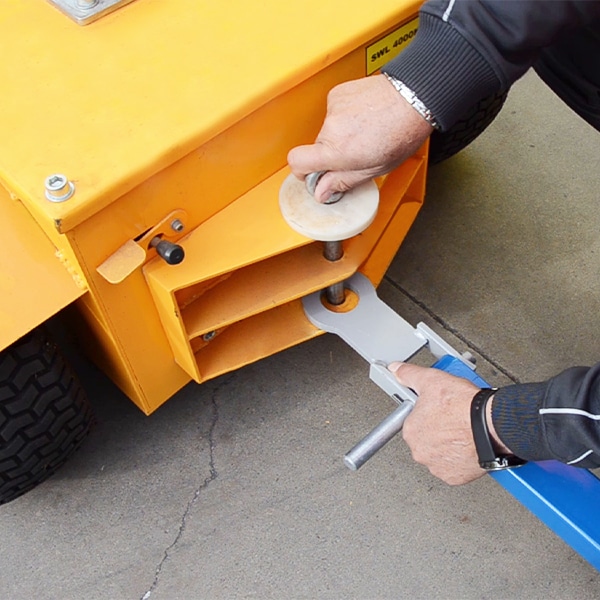

  • Tow hitch compatibility: with a range of Richmond trolleys and bins

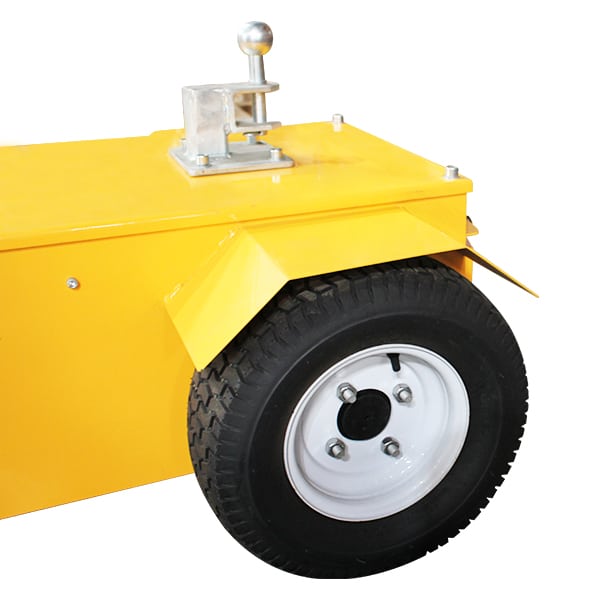

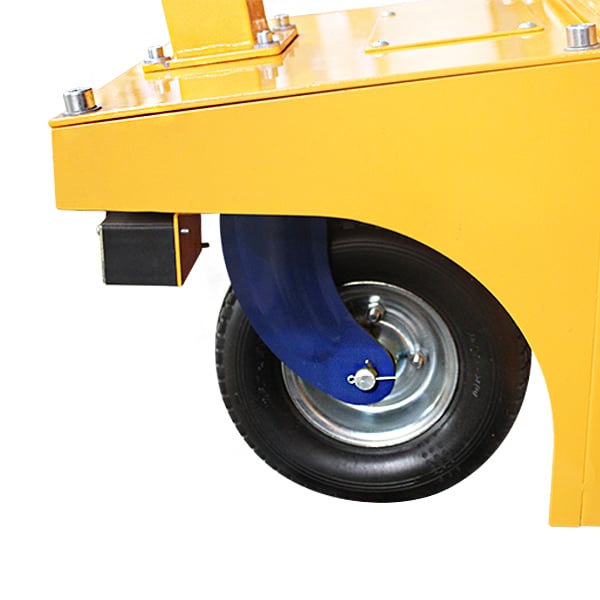

  • Non-marking drive wheels: suitable for indoor flooring

Description

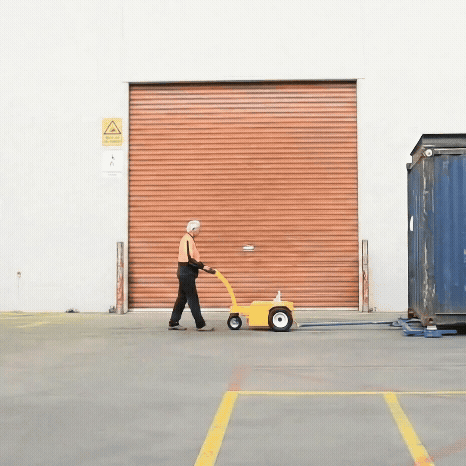

The TTR4000 is Richmond’s heavy-duty battery-powered electric tug, designed to move wheeled loads of up to 4000kg across sealed, flat surfaces. Built for controlled handling of heavy equipment in industrial environments, it allows a single operator to safely transport large trolleys, bins or mobile machinery with minimal effort. The walk-behind design provides excellent visibility and fine control in tight indoor spaces, making it ideal for warehouses, production floors and commercial facilities.

Towing performance depends on both the surface and the wheels supporting the load. For example, loads on steel wheels running on steel tracks require significantly less force than those on soft rubber wheels on asphalt. On flat surfaces, the TTR4000 can move up to 4000kg. On a 3-degree incline, it can tow up to 2000kg. On a 6-degree incline, capacity reduces to 1000kg. Stopping distances will vary depending on speed, gradient and surface. For any loads over 2000kg, Richmond recommends using braked trolleys or trailers, unless deemed safe to do otherwise.

Manual handling risks are not limited to lifting. Strain can also result from pushing, pulling, holding or manoeuvring equipment, especially in high-use environments. The TTR4000 is designed to reduce physical effort and minimise injury risks by providing a safe and controlled alternative to manual movement. Changes to workplace design, like introducing powered movement systems, are proven to be the most effective way to reduce injury and fatigue.

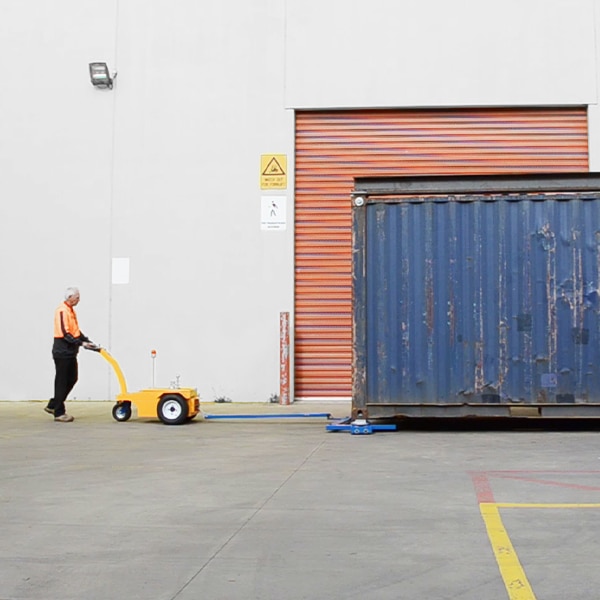

This unit is well suited to short-distance towing tasks in settings such as supermarkets, warehouses, factories, hospitals and airports. It is commonly used to move supermarket trolleys, luggage trailers, linen cages, roll cages and mobile racks. With a clean electric power system and intuitive control interface, the TTR4000 delivers safe, efficient and low-effort load movement in OH&S-conscious environments.

Product FAQs

The TTR4000 is rated to tow up to 4000kg on flat, sealed surfaces

It is compatible with a wide range of wheeled trolleys, dollies, skates and bins. Custom tow hitches can be supplied if required.

It is designed for indoor use. Outdoor use is possible on smooth and even ground, but not recommended for rough surfaces.

Yes. The TTR4000 includes a rechargeable battery system for cordless operation.

The operator walks behind the tug and uses a hand throttle to control speed and direction.

Product Code TTR4000
Towing Capacity (kg) 4000kg (based on operation on smooth dry concrete or bitumen surfaces)
Height (mm) 1020
Dimensions (mm) 1550 x 840 x 970
Motor (V) 36V / 1500W
Charger (V) 36V / 8A
Batteries 3 x 12V 55Ah
Moving Speed (km/h) Variable controller range from 5-8km/h
Weight (kg) 262
