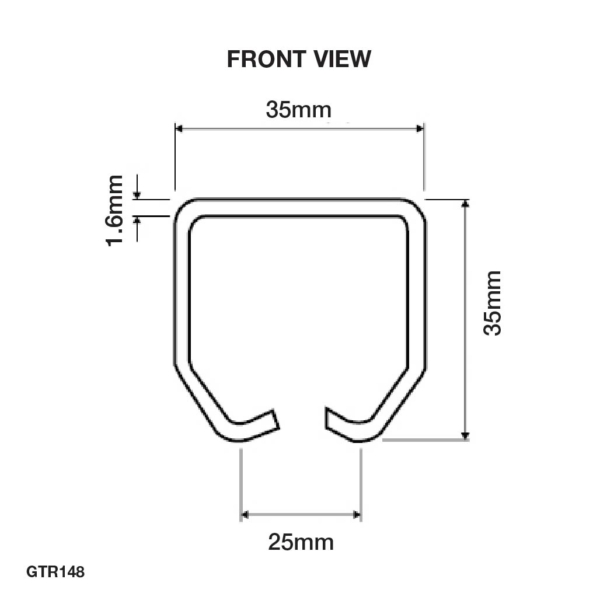

Durable 35mm wide hanging gate roller channel designed to support sliding or hanging gates and doors up to 260kg in industrial, factory, or commercial settings.
Heavy-duty design: Supports doors or gates weighing up to 260kg when installed with a minimum of three brackets (spaced no more than 966mm apart).
Durable construction: Built for long-term use in industrial and commercial environments.
Flexible mounting: Compatible with both roof and wall-mounted hanging channel brackets.
Length: 3m section ideal for medium to large doors or gates.
Expandable system: Two channels can be joined using a hanging joint support bracket.
Low-maintenance setup: Keeps rollers and moving parts elevated and out of loading zones or traffic areas.
Description
This 35mm wide hanging gate roller channel provides a robust and reliable guide track for sliding or hanging gates and doors. Manufactured for compatibility with Richmond’s 2-wheel and 4-wheel roller sets, it delivers smooth and stable operation in high-use environments such as factories, warehouses, garages, and commercial loading areas. Its 3m length provides a practical option for medium-span openings, while maintaining excellent structural integrity and alignment.
The channel is engineered to handle doors up to 260kg when supported by at least three hanging channel brackets spaced no more than 966mm apart. Additional options are available, including joining brackets to extend track runs. This system allows for flexible installation, keeping the rollers elevated and out of operational zones ideal for truck doors, space dividers, and large industrial door systems.
