Heavy-duty 3-sided roll cage trolley with full swing door for secure stock transport in warehousing, logistics, and commercial environments.
A-Frame Base: A-frame design for compact nesting in a straight line to save space
High Load Capacity: Heavy duty cage with 500kg safe working load
Includes Swing-up Shelf: For separating goods and multi-level storage. Shelf can be raised out of the way when not required and back down when needed..
Includes 1x Full Swing Door: Provides added security and containment with full-height door that can be opened for easy loading/unloading
Durable Steel Frame: Fully welded zinc-plated steel frame for corrosion and wear resistance
Improved Strength: High quality rounded steel hinges on all doors & latches

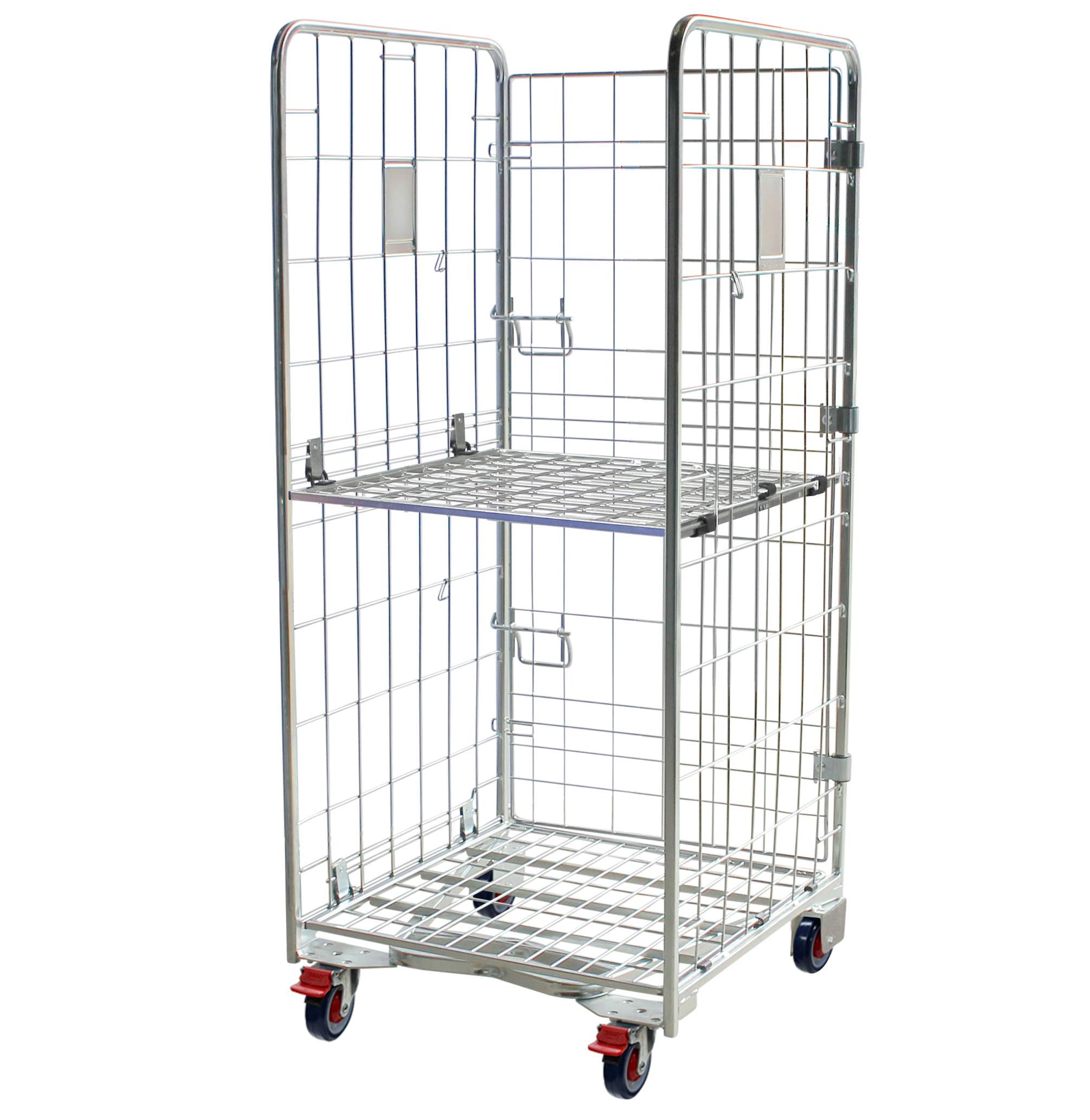

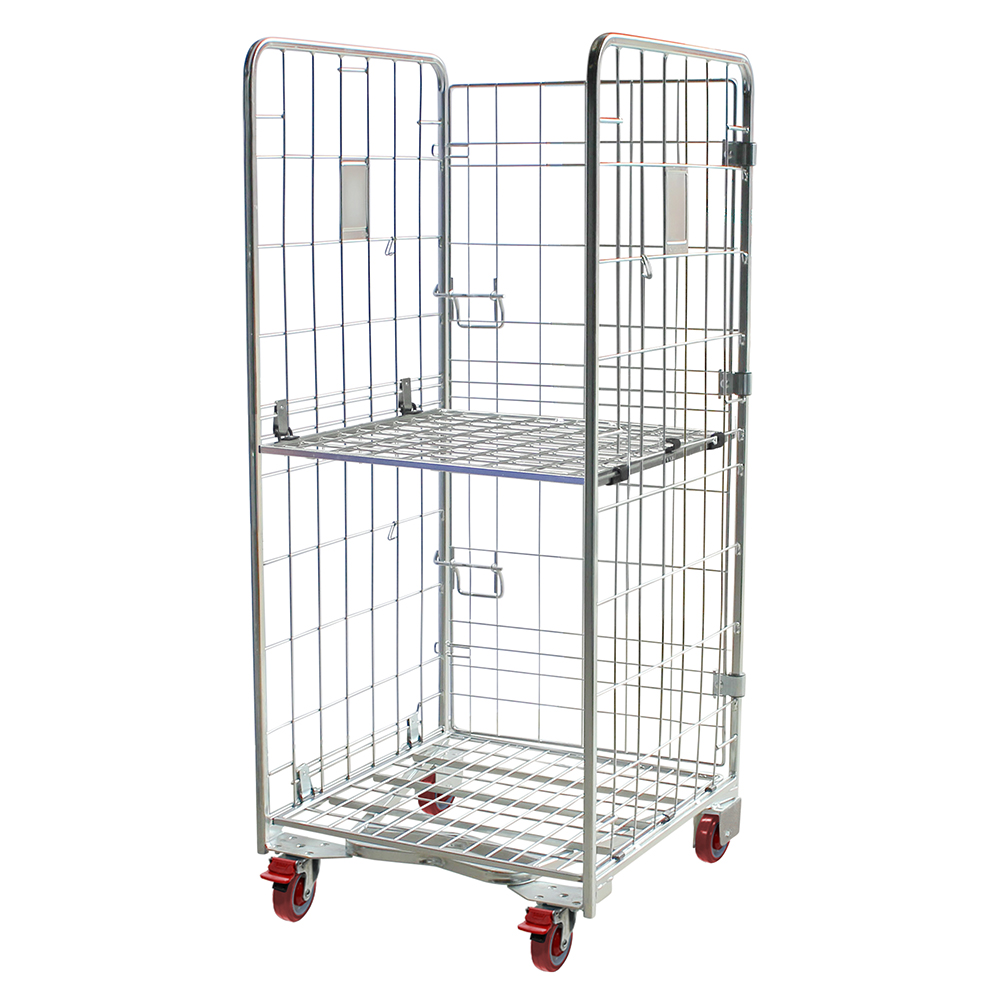

The RCR301 3-Sided Roll Cage with Full Door is designed to streamline goods movement while offering additional security and containment. With a 500kg load capacity, this robust unit is ideal for demanding handling environments across warehousing, logistics, retail, and manufacturing operations.
Its zinc-plated steel frame resists corrosion and features a fully welded design with the uprights mounted externally to maximise internal volume. The A-base frame nests in a straight line when not in use, allowing multiple units to be stored efficiently.

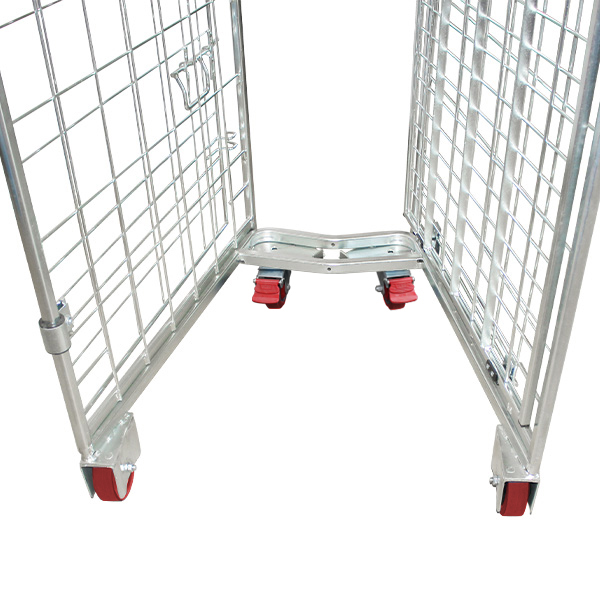

This model includes a full-height swing door, secured by high-quality rounded steel hinges and latches, improving durability over time and allowing quick access when loading or unloading. Fitted with two 125mm rigid castors and two 100mm swivel castors with brakes, all using rebound polyurethane wheels, this trolley offers excellent manoeuvrability and noise reduction on hard surfaces.
Supplied fully assembled and ready to use, the RCR301 is a reliable choice for operations requiring a balance of security, access, and storage efficiency.
Product FAQs
Yes. The RCR301 comes with a full swing door that can be opened or removed if open access is preferred, or additional doors can be fitted to transform this into a 4-sided roll cage depending on your requirements. Contact our team to discuss configuration options and compatible accessories.
This cage uses rebound polyurethane wheels on the castors: 2 x 125mm rigid and 2 x 100mm swivel with brakes.
Yes. The A-base design allows multiple units to nest in a straight line to save space.
A-Base or H-Frame Roll Cages
The letter refers to the base/chassis frame – they are either an “A” or also known as “H” shape.
The “A” frame nest in a straight line for easy storage and transportation.
High quality design & manufacture with zinc plated finish.
Easily add extra shelves or accessories as required.
Multiple choice of wheel types available.
Z-Base Roll Cages
The base of the roll cages is in a “Z” shape and only nests with other “Z” base cages/trolleys.
High quality design & manufacture with zinc plated finish.
All door hinges & latches are enclosed within a smooth plastic casing for improved OH&S.
The castors of the “Z” base roll cages are all bolted to an underside channel – this allows the castors to be bolted on/off.
The RCR301 is made from a fully welded zinc plated steel frame for durability and corrosion resistance and durability in commercial and industrial settings.
Yes. While this unit comes standard with 100mm rebound polyurethane wheels, other wheel types may be fitted on request depending on your floor surface and operational needs. Our team can help recommend the most suitable configuration for your environment.
Our roll cages feature bolt-on castors for easy replacement and ongoing maintenance.Meaning its easy to upgrade your wheels or replace your castors when required.
