The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 15kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth.
Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Steel Manufacture and Rapid Moving production lines, all due to the reliability and performance of this robust castor.

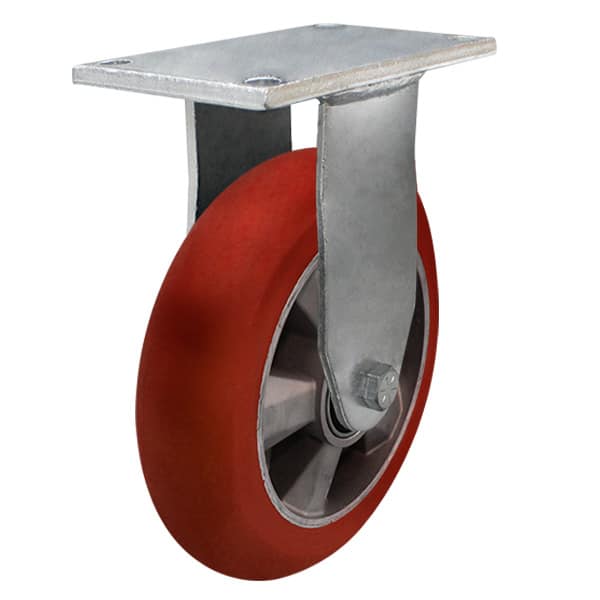

The R8261M3 from Richmond Wheel and Castor Co. is a rigid frame castor and has a polyurethane wheel. This rigid castor is one of our 500 series range and can hold loads up to 500kg. The R8261M3 is assembled with ball bearings on the castors axle. The rigid frame allows for steering only when used with swivel castors. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (PU815).
| Product Code | R8261 |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Rigid |
| Wheel Width (mm) | 50 |
| Wheel Type | Polyurethane Tyred Aluminium Centred |
| Wheel Code | PU815 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 248 |
| Maximum Load Capacity (kg) | 250 |
| Recommended Load Capacity (kg) | 200 |
| Towable | Yes |
| Download CAD Drawing (STEP file) | Download |
|---|
