200mm Cast Iron 500kg Capacity Castor (R8431)

International Shipping Available

Wheel Diameter: 200mm

Castor Frame Type: Rigid

Wheel Width: 50mm

Wheel Type: Cast Iron

Wheel Code: Ci852-

Wheel Bearing Type: Ball Bearing

Castor Height: 248mm

Maximum Load Capacity: 500kg

Recommended Load Capacity: 380kg

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

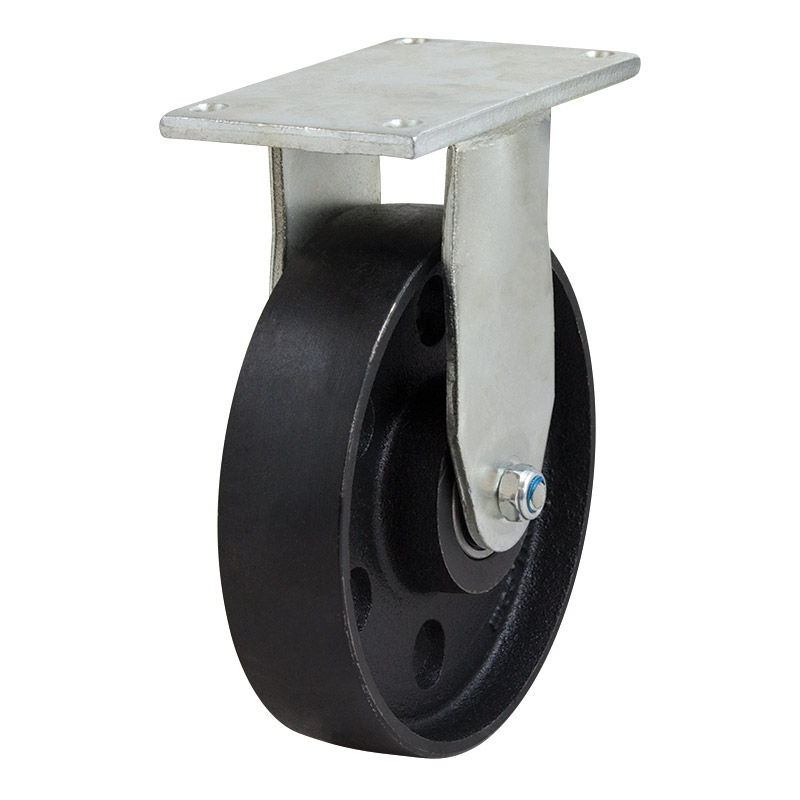

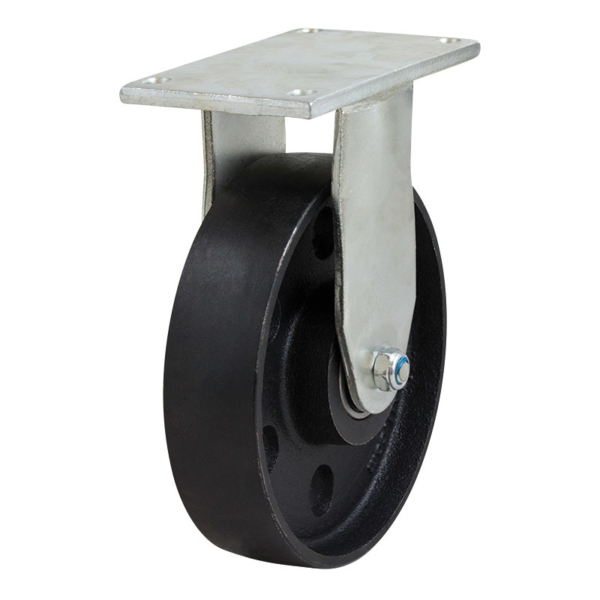

The R8431 from Richmond Rolling Solutions is a rigid frame castor and features a cast iron wheel. This rigid castor is part of our 500 series range and has a top load capacity of 500kg. The R8431 uses ball bearings for wheel rotation. This castors rigid frame only allows linear movement unless used with swivel castors. The cast iron wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: Ci852-).
