The Richmond Rolling Solutions team have developed a multi-purpose low-profile pipe roller for use in the installation of gas lines and pipe launching projects. The economical combination of large diameter heavy-duty polyurethane rollers, transportable base, and 1″ increment adjustability allows for multiple installations – making these pipe rollers reusable.

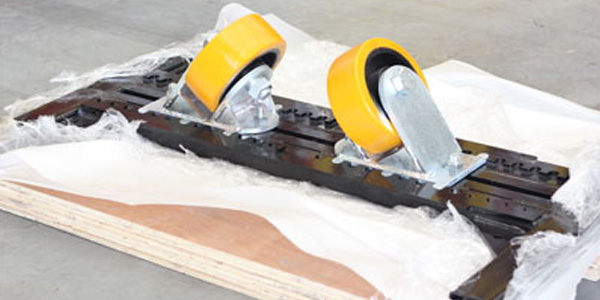

Precision Adjustable Pipeline Rollers
These pipe rollers feature a transportable base and 1″ increment adjustability, making them reusable for multiple projects.
Adjustment of these rollers takes approximately 5 minutes per frame.
The adjustment is performed in three simple steps:
- Loosen the bolts that hold the roller frames to the base frame.
- Slide the frame wideways until the arrow on the base plate aligns with the reference number that refers to the nominal bore size of the pipe you wish to launch.
- Tighten the bolts to secure the frame to the base. The rollers are now secured in the correct position in order to safely launch the required pipe dirameter.
Depending on your requirements, we offer 4,000kg or 10,000kg models to suit pipe diameters from:
• 8-20″ nominal bore
• 8-40″ nominal bore
• 8-88″ nominal bore.
