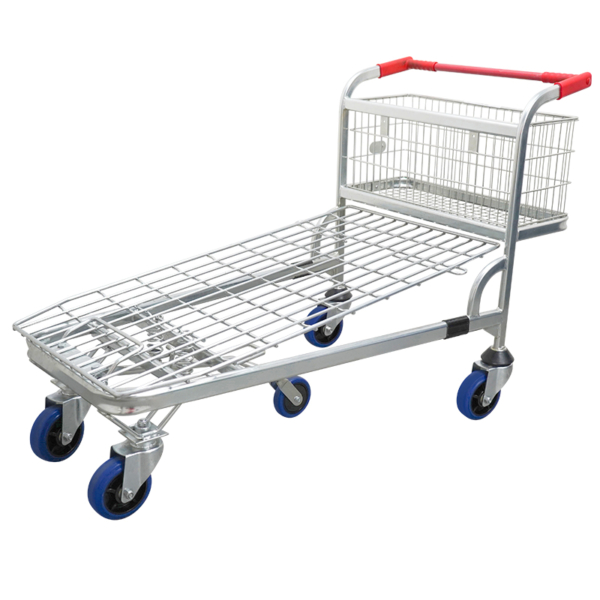

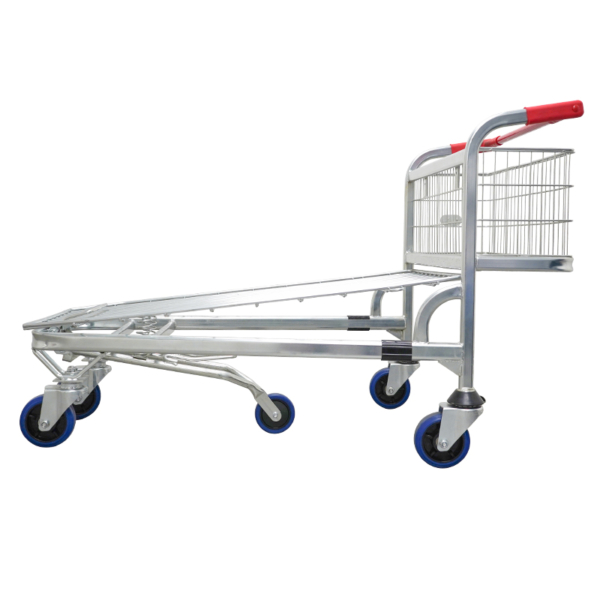

Spring Wire Mesh Platform Trolley with Fifth Wheel (PFS001)

Featuring a spring-loaded base and a central fifth wheel, this trolley provides enhanced control and efficient loading for large retail operations, warehousing, nursery, and industrial applications.

  • Spring-Loaded Platform to Support Loads: Base lowers slightly under load to provide a stable surface and reduce the lift height required during loading and unloading.

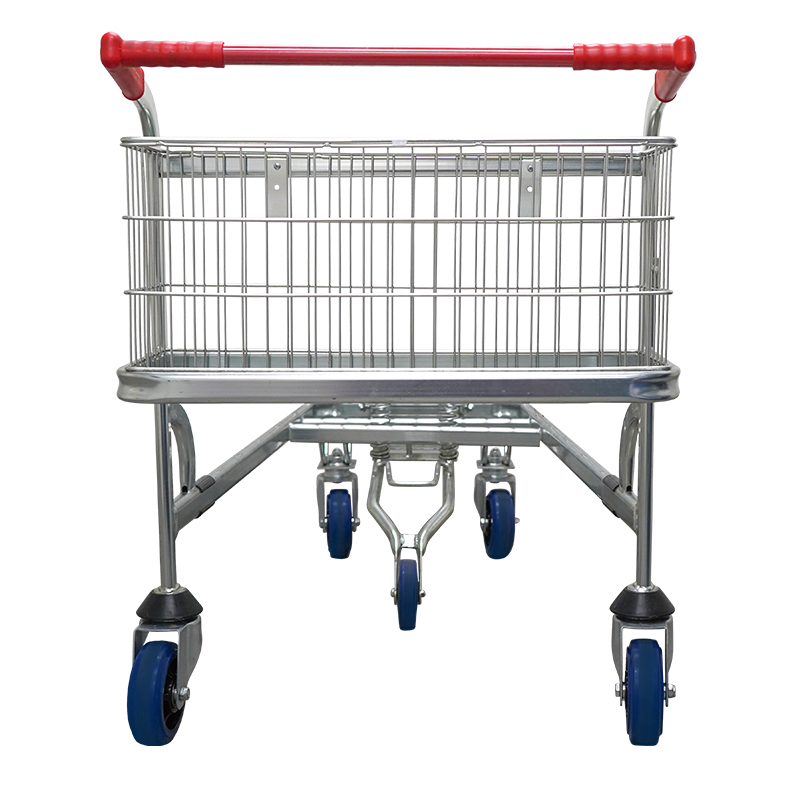

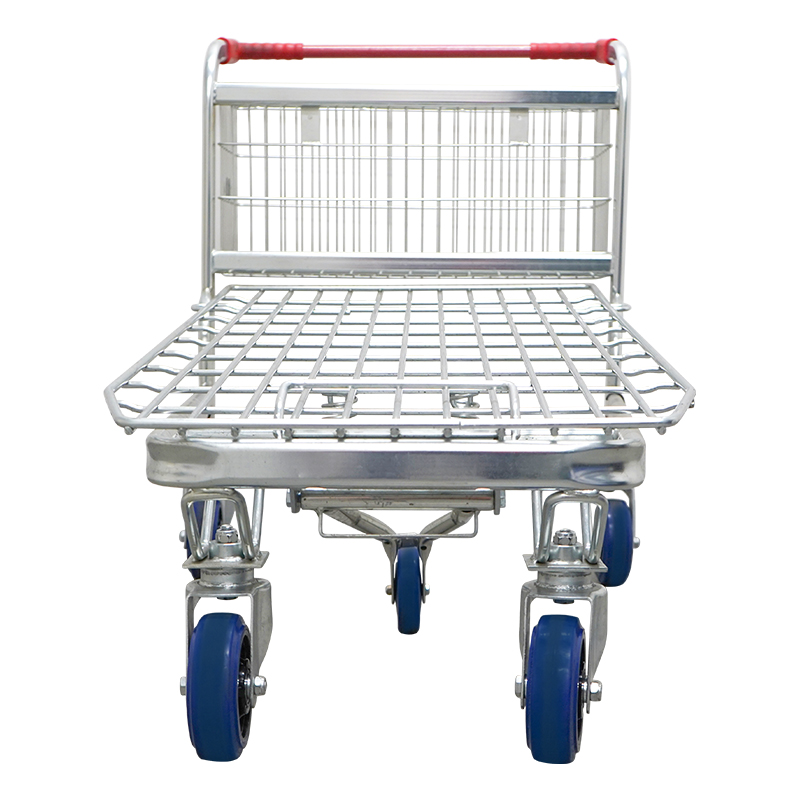

  • Central Fifth Wheel: The rigid rebound rubber wheel at the centre supports weight and improves control, while allowing a tighter turning radius and easier manoeuvrability in confined spaces.

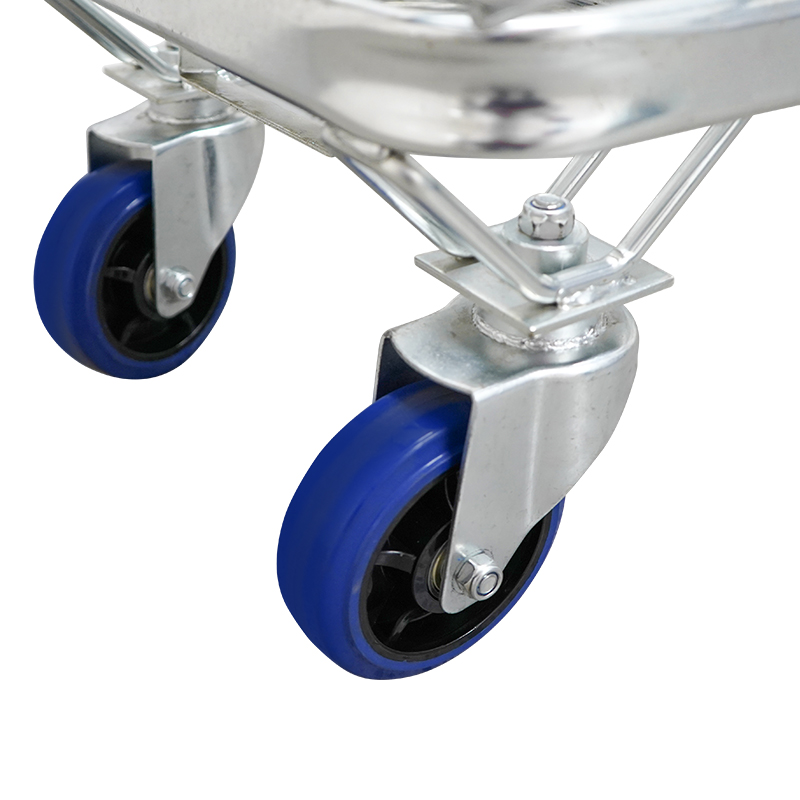

  • Rebound Rubber Wheels: Fitted with shock-absorbing rebound rubber wheels for smooth, non-marking performance
  • Large Wire Mesh Platform: Durable steel mesh platform supports heavy loads and bulky items

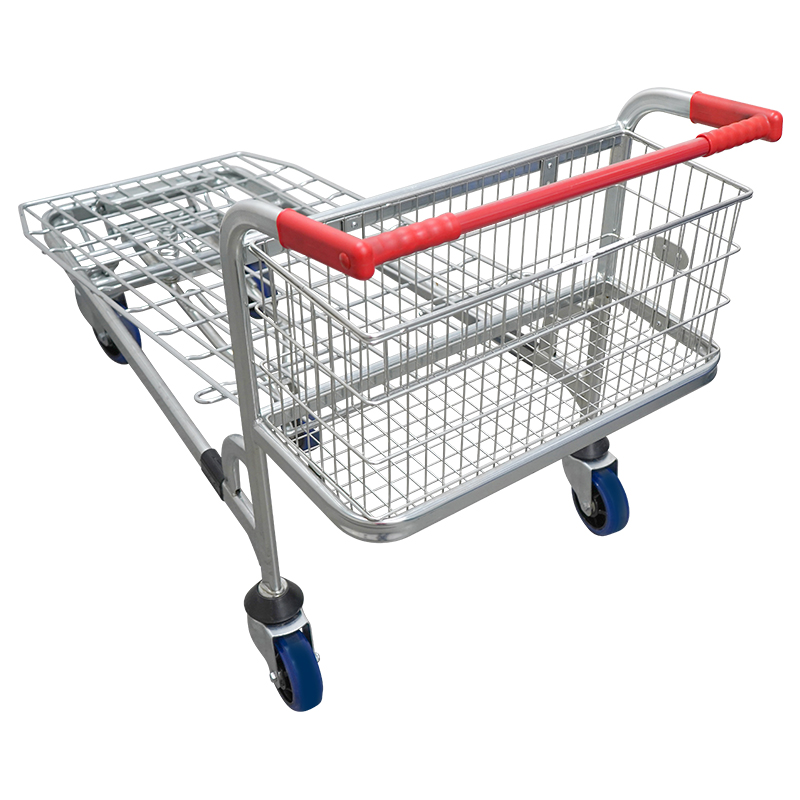

  • Rear Storage Basket: Feaures a mesh basket beneath the handle for added item storage and sorting
  • Heavy Duty Construction: Fully welded steel frame for industrial use in logistics, retail, healthcare and warehousing

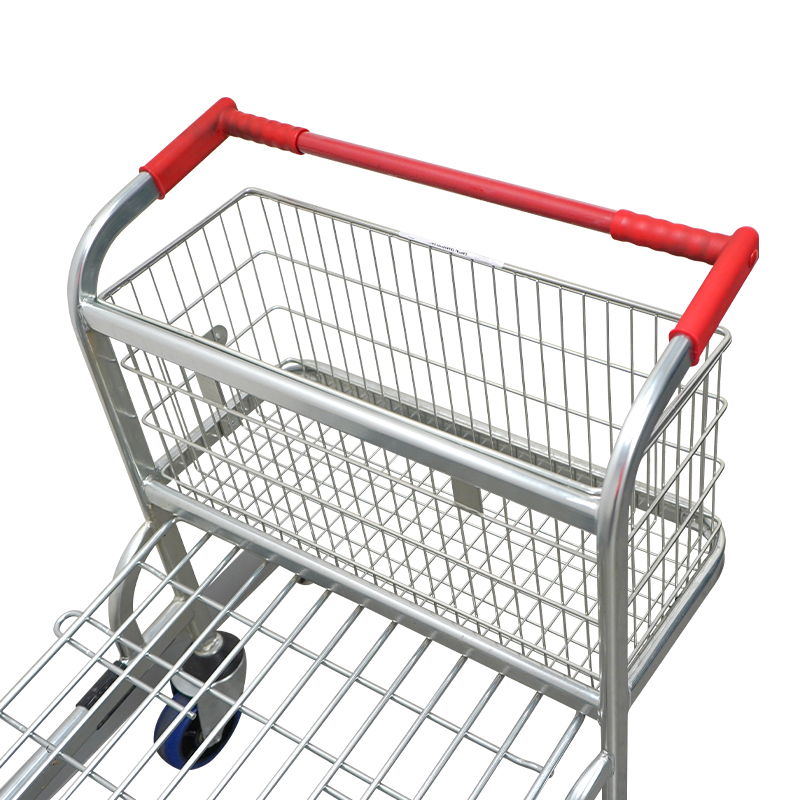

  • Ergonomic Handle: Fitted with red plastic grip for operator comfort and directional control
  • Compact Storage: Trolleys nest together when not in use, saving space in trolley bays or storage areas
  • Rear Castor Guards: Black plastic shrouds over rear wheels to protect castors and reduce impact damage
  • Supplied Fully Assembled: Ready to use straight away with no setup required

Description

Richmond’s Fifth Wheel Spring Trolley is designed for demanding retail, warehouse, and industrial environments. Its spring-loaded platform lowers under load, providing a stable base that helps keep goods at a practical working height during loading and unloading.

Fitted with shock-absorbing rebound rubber wheels and a central rigid castor, the trolley combines smooth rolling performance with dependable load support. The rigid castor steadies the platform and carries weight efficiently, while the outer wheels ensure easy handling and manoeuvrability in tight aisles or confined spaces. A durable steel frame and wire mesh platform make it well-suited to transporting heavy or bulky items typically encountered in-store or across logistics operations.

Product FAQs

The central fifth wheel castor provides a central point for better control and tighter turning, ideal for navigating narrow aisles or congested environments.

A spring-loaded platform lowers slightly under load, creating a stable base that helps steady goods during transport. By reducing the height difference when lifting or placing items, it makes handling easier, minimises strain, and supports safer, more efficient loading and unloading.

Yes. The design allows multiple units to nest together, making it easy to store efficiently when not in use.

Yes. Richmond offers replacement rebound rubber wheels and compatible castor components.

Looking to customise your trolley? A wide range of alternative wheel types are available to suit different environments and surfaces. Contact our team to discuss your requirements.

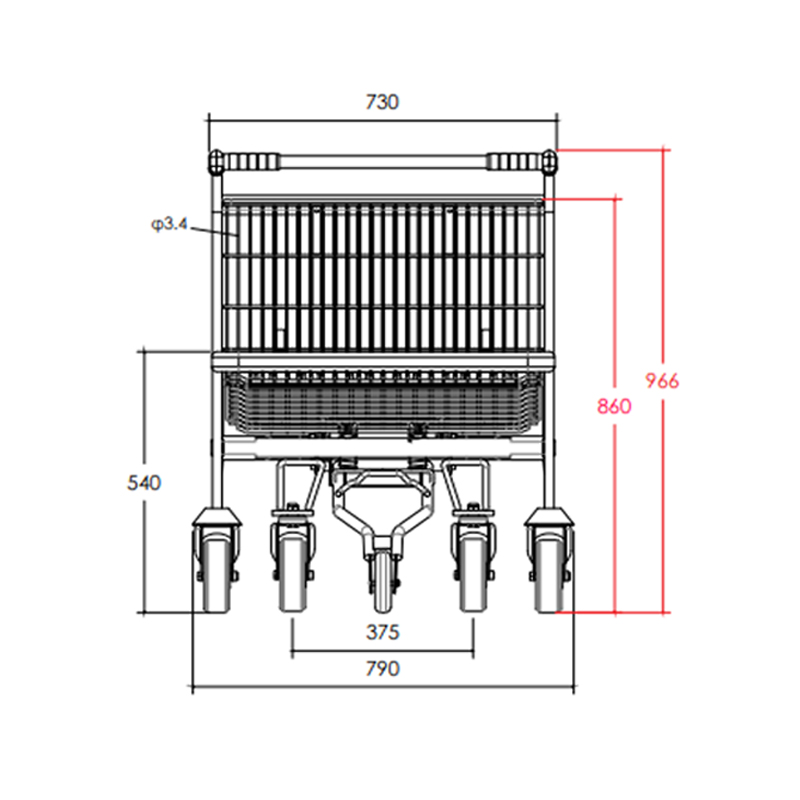

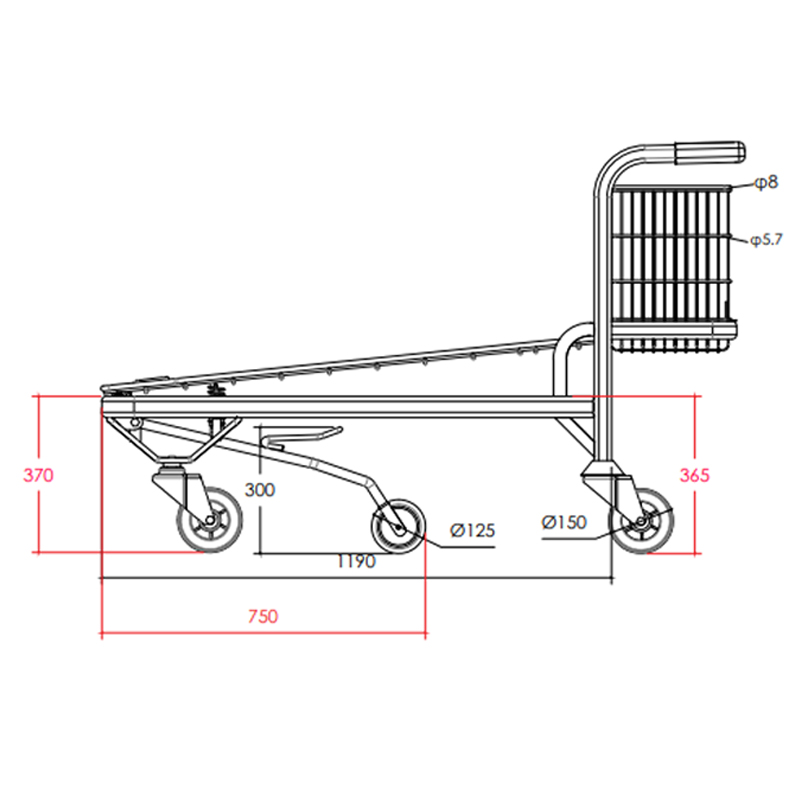

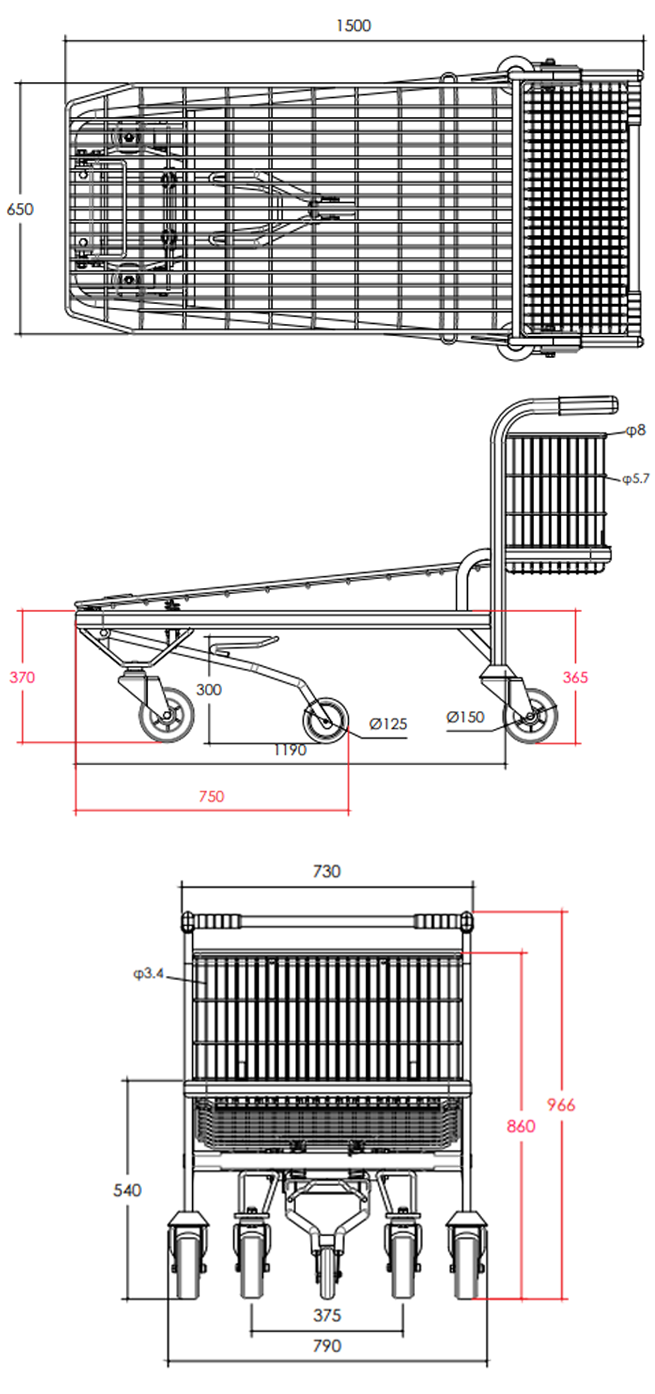

Product Code PFS001
Length (mm) 1500
Width (mm) 790
Height (mm) 966

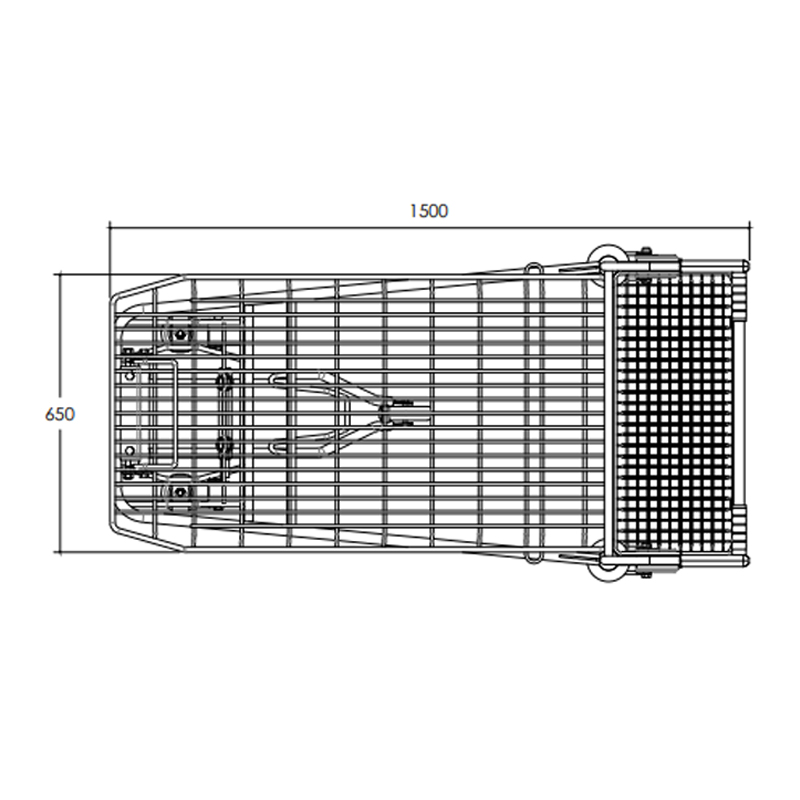

Platform Size (mm) 650 x 1190
Outer Wheel Diameter (mm) 150
Centre Wheel Diameter (mm) 125
Wheel Material Rebound Rubber
