Heavy-duty 3m polyvee-driven roller conveyor for smooth, low-noise transport of boxed goods and totes in automated production and warehouse systems.

  • Stainless steel rollers: Ø50 x 600mm 201 stainless steel rollers provide smooth, corrosion-resistant handling.
  • Polyvee drive system: 24V belt-driven rollers deliver quiet, efficient power with minimal maintenance.
  • Heavy-duty frame: Powder-coated tubular steel construction for long-lasting strength and rigidity.
  • Extended 3m length: Incorporates 34 rollers with 90mm pitch spacing for consistent load support. 3 Drive Rollers and 31 Driven Rollers.
  • Adjustable feet: 850–900mm height range with 40 x 40mm support legs for easy levelling.
  • Integrated drum motor: 24V 80W Ø50mm drive roller provides compact and safe operation.
  • Variable speed control: 240V single-phase controller enables fine speed adjustment for different workflows.
  • High load capacity: Supports up to 50kg per metre for light to medium-duty industrial use.

Description

Richmond’s 3m polyvee-driven roller conveyor is built for reliable, low-noise product handling in automated systems across logistics, manufacturing, and packaging operations. Constructed from heavy-duty powder-coated tubular steel, it features 34 x stainless steel Ø50mm rollers spaced at 90mm intervals, providing consistent and stable transport across the full 650mm width. The integrated 24V 80W drum motor powers the rollers via a polyvee belt system, ensuring smooth, efficient, and low-maintenance performance for boxed goods, totes, or trays.

This 3m conveyor is supplied pre-assembled and pre-wired to reduce installation time—only the adjustable legs need to be attached on-site. Height adjustment (850–900mm) allows easy integration with existing conveyor lines or workstations, and the variable speed controller provides precise operational flexibility. Suitable for light to medium-duty workflows, this conveyor delivers dependable performance in distribution centres, production lines, and e-commerce environments where reliability and quiet operation are essential.

Length (mm) 3000
Overall Width (mm) 650
Height (mm) 850-900 (adjustable feet)
Roller Diameter (mm) 50
Roller Material 201 Stainless Steel
No of Rollers 34
Max Load Capacity (kg) 50kg per metre
Frame Material Powder coated Tubular Steel Construction
Roller Pitch (mm) 90
Motor Ø50mm Drum Motor 24V 80W
Controller 240V single phase variable speed controller
Support Leg (mm) 40 x 40 2.0mm square tube
specs_image

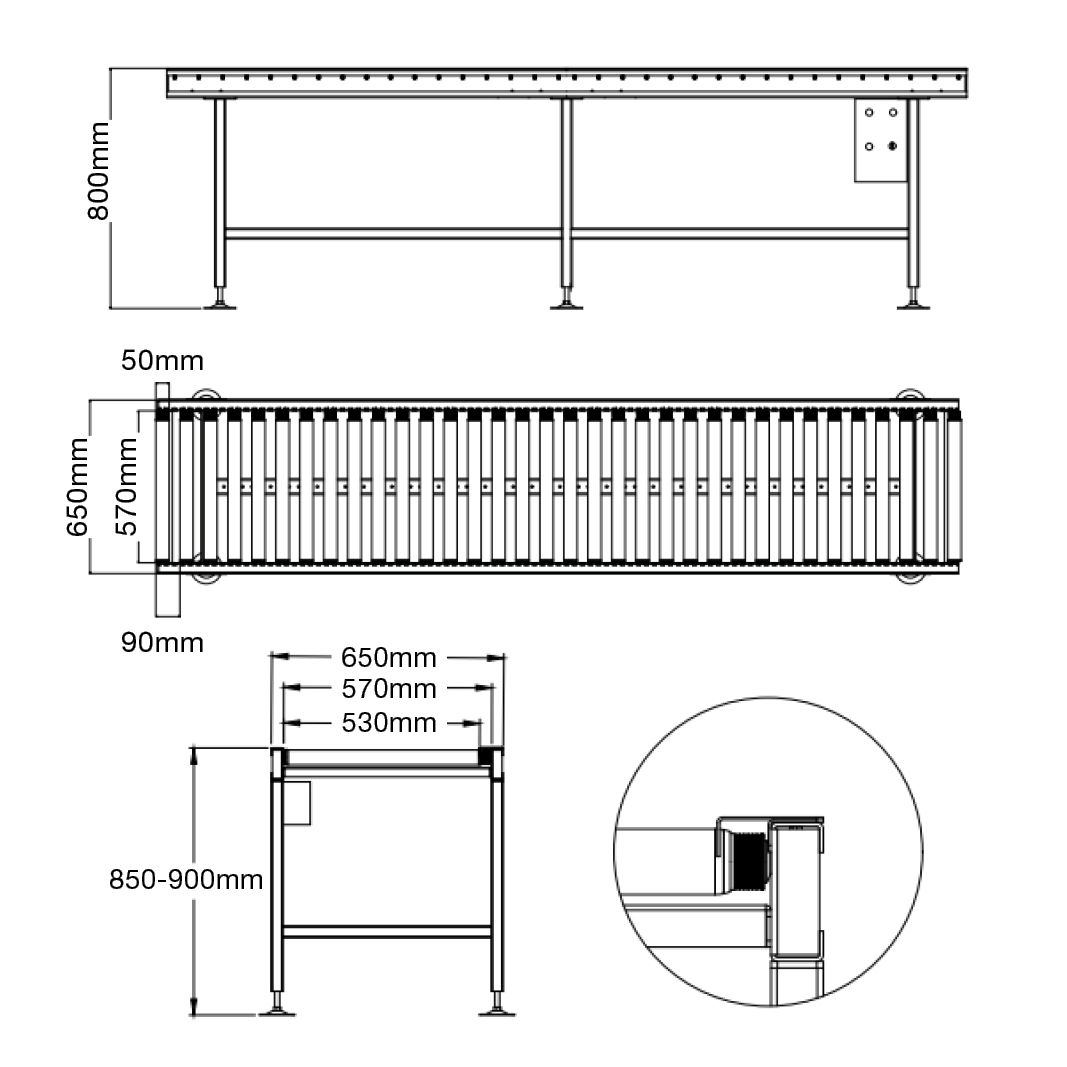

CPR101 Conveyor Dimensions Download
