This conveyor suits automated workflows across logistics, warehousing, and production.
Designed for efficiency and built to withstand demanding operational environments, these conveyors are delivered pre-assembled and pre-wired, requiring minimal setup.
Quick and Easy Installation
Smooth and Quiet Operation – suitable for busy work areas.
height adjustable feet to integrate into existing systems.
Heavy duty Construction to withstand rigorous use.
Other sizes available on request
Stainless steel models available on request
Description
Richmond’s powered belt conveyor series is engineered to streamline material handling processes across various industrial applications. Designed for efficiency and built to withstand demanding operational environments, these conveyors are delivered pre-assembled and pre-wired, requiring minimal setup apart from attaching the adjustable legs.
This 3m belt conveyor from Richmond is built for dependable transfer of goods in busy production or dispatch lines. Constructed with a heavy-duty steel frame and equipped with a PVC belt, it delivers consistent motion and belt alignment. The integrated motor ensures quiet and efficient drive, supported by a 240V variable controller.
Designed for ease of installation, the conveyor features legs with height-adjustable feet (850–900mm), allowing accurate levelling across different floor types. It performs reliably in applications where controlled movement, spacing, and product flow are critical.
Benefits
Simplifies system integration for OEMs and facility upgrades
Handles loads up to 25kg per metre with consistent belt tracking
Suitable for light to medium duty industrial applications
Supported nationally by Richmond’s service and parts network
Applicable Industries
Assembly Line
Food Industry (Custom food-grade conveyor belts are available to meet food-grade compatibility requirements)
Pharmaceutical Industry
Warehouse
Transport and Logistics Centres

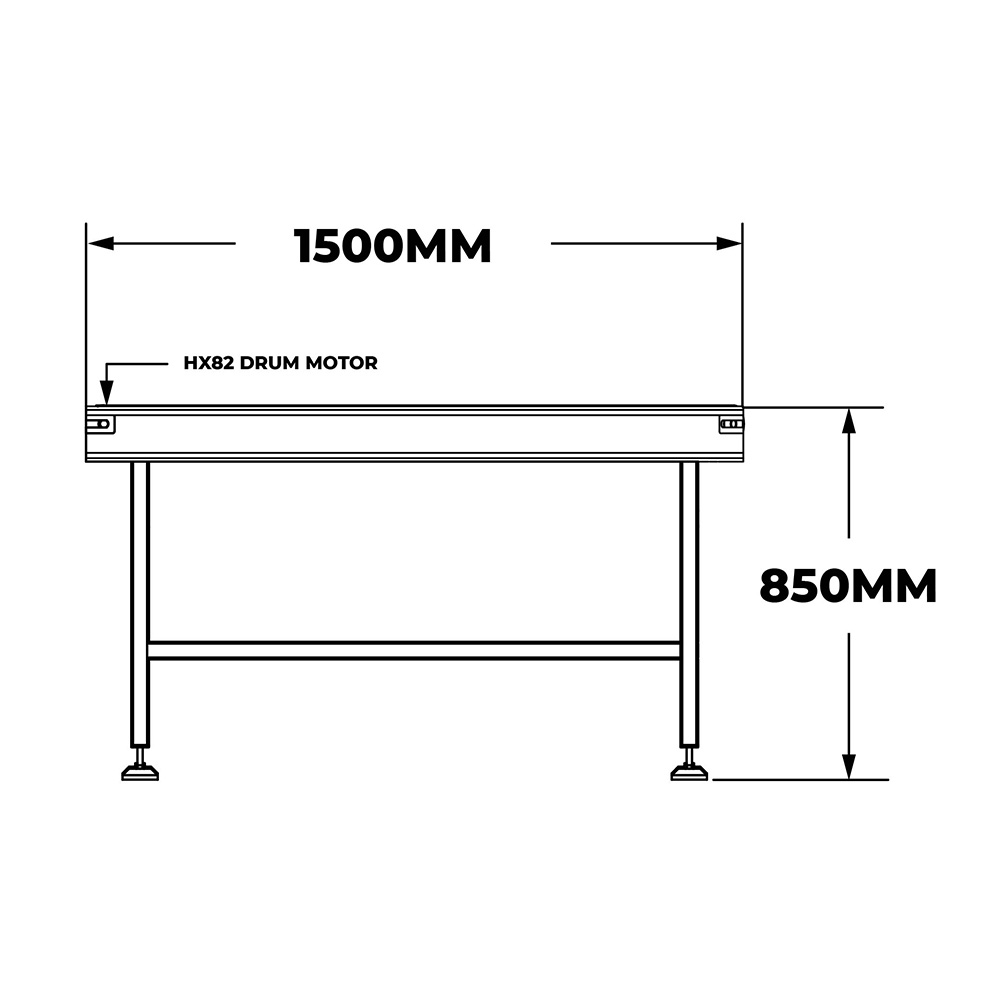

Length (mm)
1500

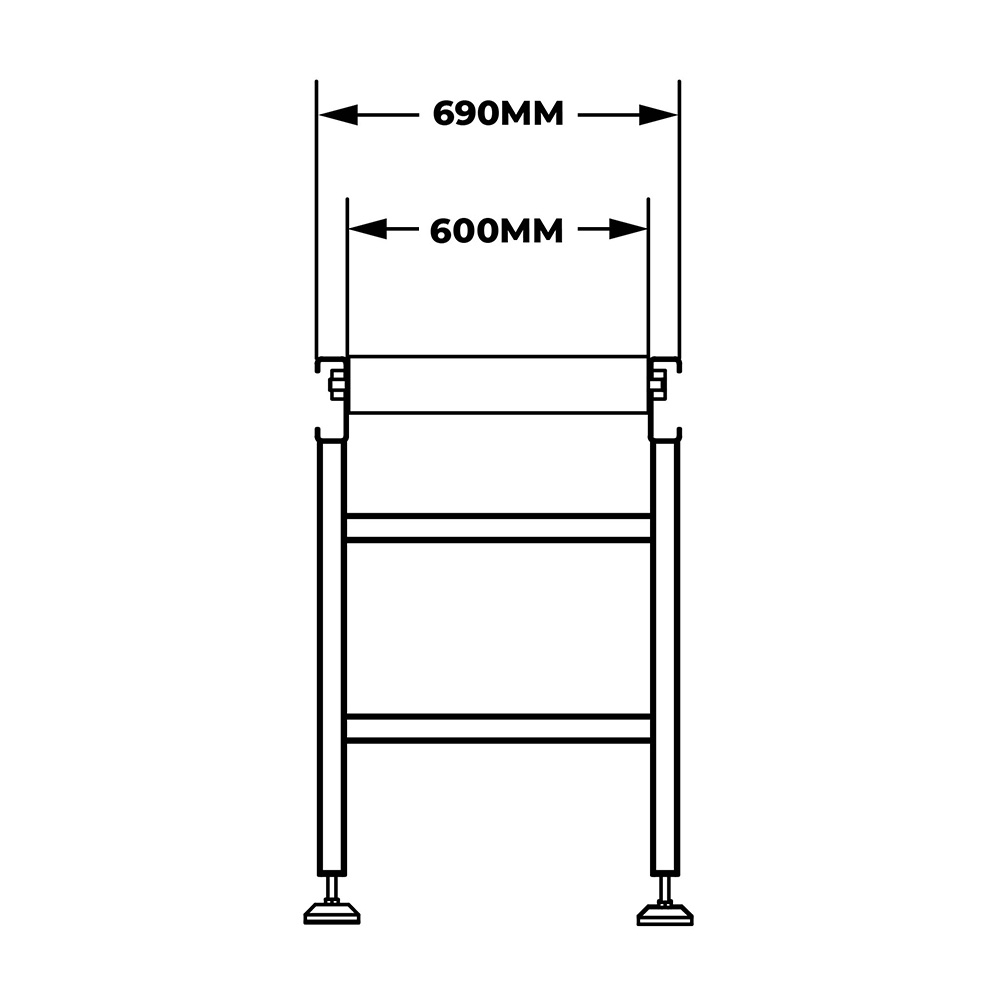

Overall Width (mm)
690
Belt Width (mm)
600
Height (mm)
850-900 (adjustable feet)
Motor
Ø82mm Drum Motor 200W 230V AC
Speed Per Min
0-25 metres (adjustable)
Belt Max Load Capacity (kg)
25kg per metre
Frame
Powder coated Tubular Steel Construction
Support Leg (mm)
40 x 40 2.0mm square tube
Belt Material
2.0mm Green PVC
Controller
240V single phase variable speed controller
