10 Tonne Hydraulic Toe Jack (TJR010T)

$600.00 ex. GST
$660.00 inc. GST

Available Online

International Shipping Available

Estimeted Freight Cost

Use my location

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Estimated Freight Cost

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

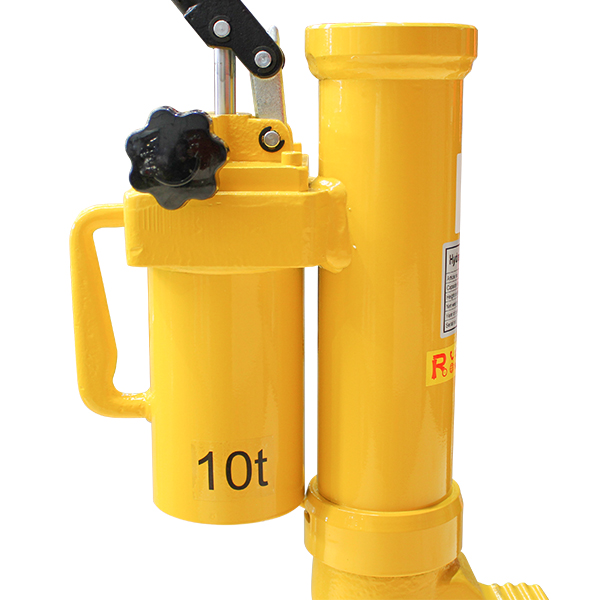

Heavy-duty hydraulic toe jack engineered for lifting extremely heavy machinery with minimal clearance.

  • 10 tonne lifting capacity: for industrial loads and equipment
  • Dual lift points: use toe for low-clearance loads or head for elevated lifting
  • Compact footprint: ideal for tight access installations
  • Rugged steel construction: built to withstand harsh working conditions
  • Controlled hydraulic operation: ensures smooth, safe lifting and lowering

Description

The Richmond 10 Tonne Hydraulic Toe Jack is designed for serious heavy lifting where forklifts or cranes aren’t practical. Featuring both a low-profile toe and a raised head lift point, this jack provides flexibility when working with different machinery types or installation conditions. The compact body allows access underneath low-clearance loads, while the wide base improves stability and safety during operation.

Built with rugged steel construction and a precision hydraulic pump, the TJR010T delivers reliable lifting power and controlled lowering. It’s commonly used in heavy manufacturing, machinery relocation, rigging work, and maintenance operations. This jack is suitable for environments where safety, load control, and minimal downtime are critical.

Product FAQs

This model is rated for a maximum load of 10 tonnes, whether lifting from the toe or the head. Ensure the load is centred and stable to prevent tipping or overload.

The toe allows lifting very low-clearance loads (e.g. machines sitting directly on floors), while the head provides a standard top-lift function for taller or raised objects. Both are rated to full capacity.

This jack is ideal for heavy equipment installation, rigging, machinery relocation, and servicing tasks where lifting clearance is limited and precise load control is required.

Inspect for leaks, check fluid levels periodically, and keep the piston and toe plate clean. Store the unit in a dry, protected area and follow the manufacturer’s maintenance schedule for best results.

Capacity (tonne) 10 tonnes
Lifting Range of Foot (mm) 30-260
Lifting Range of Head (mm) 420-650
Max Lever Force (kg) 40
Product Weight (kg) 35
TJR010T Instruction Manual Download
Hydraulic Jack Safety Download
