Castors For All Applications
Available in a wide variety of wheel types, our castors range in capacity from 20kg to 20,000kg
Furniture & Bed Castors
Mini Series Castors
Utility Series Bolt Castors
Utility Series Plate Castors
Utility Series Twin Wheel Castors
Light Industrial Series Castors
Commercial Series Castors
200 Series Castors
Zinc Durolite Plate Castors
Zinc Durolite Bolt Castors
Stainless Steel Elite Plate Castors
Stainless Steel Elite Bolt Castors

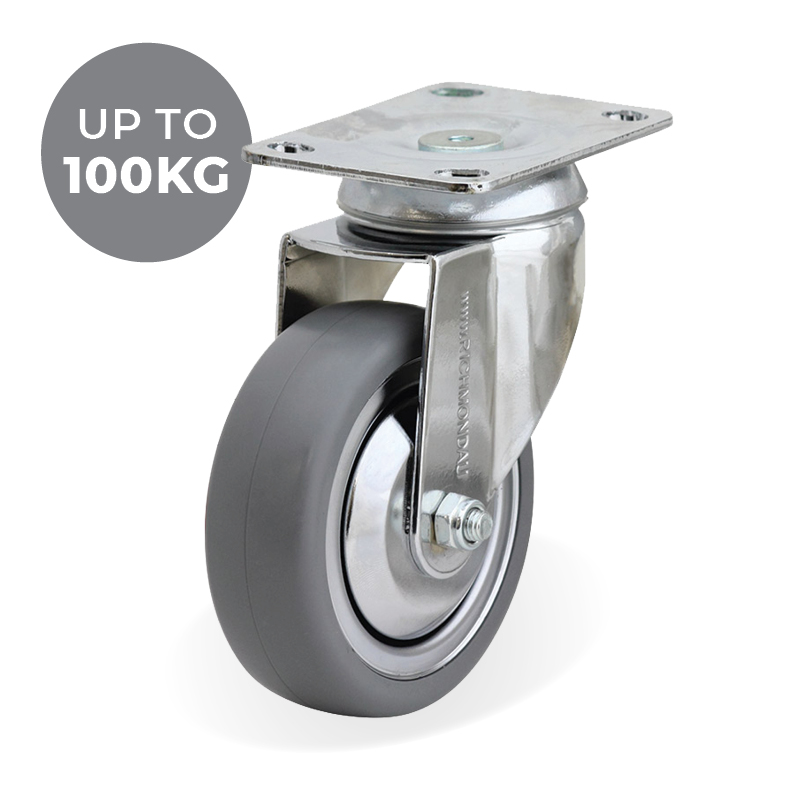

Chrome Durolite Plate Castors
Chrome Durolite Bolt Castors
300 Series Plate Castors
300 Series Bolt Hole Castors
Stainless Steel Excel Plate Castors
Stainless Steel Excel Bolt Castors
Heavy Industrial Castors & Wheels
Stainless Heavy Industrial Castors
Pneumatic Series Castors
Puncture Proof Series Castors
Spring Loaded Shock Absorbing Castors
Heavy Duty Welded Series Castors
500 Series Castors
Waste Bin Castors
1000 Series Castors
Forged Head Series Castors
High Performance Series Castors
5000 Series Castors
Extra High Performance Series Castors
Cargo Series Castor
High/Low Temperature Castors
Tricastor Stage Dollies
Low Profile Castors
Glass Handling Ball Transfer Castors
Spring Loaded Gate Castors
Gate Track Wheels
Site Box Castors
Container Locking Castor Kits
Leveling Stand Castor
Base Plate Mounts
Heavy Duty Rubber Wheel

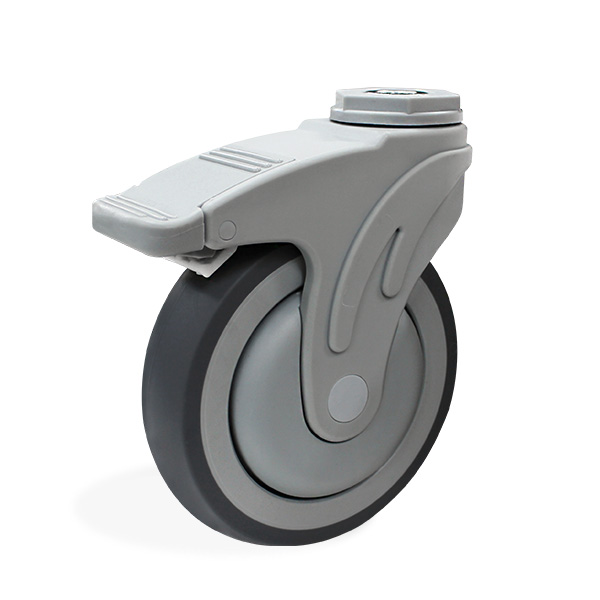

Non Marking Caster Wheels
5 VARIABLES TO CONSIDER WHEN CHOOSING YOUR CASTOR
Heavier loads will require larger capacity castors with wheels made from higher density materials.
Sudden impacts that the wheel or castor may encounter during transport should also be considered. These sudden loads will add to the amount of force that is applied to the castor during transport.
To calculate the minimum load capacity, divide the typical weight by the number of castors to be used on the item. This number will give you the capacity for an evenly distributed load
Wheels and castors perform differently depending on the floor surface.
Nylon wheels are the best option due to the decreased rolling resistance.
CONCRETE OR TILES:
Polyurethane, rebound rubber or other compound rubber wheels are the best option.
May lead to irregular weight distribution and temporarily increase the load on the castors.
WOOD, VINYL, CORK & EPOXY FLOORS:
Non-marking wheels such as grey rubber, rebound rubber and polyurethane are best suited for these surfaces.
EASILY MARKED SURFACES:
To prevent marking of the floor, polyurethane, rebound polyurethane, grey rubber, donut profile, or rebound rubber wheels are the best options.
Richmond has a wheel type to suit all floor surfaces. If you need information, please contact our friendly staff.
The major factors that contribute to rolling resistance are:
- Wheel Diameter
- Wheel Hardness
- Floor Surface
The worse the floor, the bigger and softer the wheel needs to be
Rolling resistance can be improved by selecting the largest suitable wheel diameter for your application.
When unsure, speak with the knowledgeable store staff to advise you on the most suitable castor for your application.
Several requirements should be considered when choosing the right wheel or castor for your environment:
- Temperature to which the castor will be exposed, extreme heat or cold
(Cool rooms, freezers, ovens)
- Will the wheel or castor be used in wet/wash down areas?
- Harshness of the environment
(Sea water, dirt, sand, chemicals, clean room etc.)
Richmond’s high/low temperature wheels can perform in extreme temperatures from -30°C to 300°C
Are there any specific requirements or industry standards that your wheel/castor needs to meet? Below are some important things to consider when making a selection:
- Do the castors require brakes and/or directional locks?
- Is the load being towed, and if so at what speed?
- Wheel noise dampening
- Shock loads
Will the load be subject to sudden shocks whilst moving?
- Frequency of use
- Height/clearance restrictions
- Mounting requirements
Plate or bolt mount? Rigid, swivel, or brake frame?
For information on important factors to consider when choosing a castor, see our selecting a castor guide
Versatility is a highly valued trait, whether it’s in a person or a product, and castor wheels – otherwise known as castors – are one such product that can certainly be classed as versatile. Castors are single, double or compound wheels that facilitate easier multidirectional steering. However, it’s important to make the distinction between casters and wheels, as they are not technically one and the same; wheels rotate on an axle or shaft that passes through its centre. They come in a solid or spoked design and can be made from a vast range of materials. The wheel is actually one part of a larger component called a caster, which is formed when the wheel is attached to the caster frame. The frame can either be rigid or swivelled in design.
Castors can be used for a wide range of applications and products, which we’ll look at below. If you need caster wheels in Melbourne, Sydney or Brisbane, or elsewhere in Australia like Perth, Adelaide or Darwin, discover the huge range available from Richmond.
Uses For Castors
Used across many industries, institutions, facilities and even in households, castor wheels can be found on everything from shopping carts and hospital beds through to office chairs and trolleys. They are of the utmost importance when attached to mechanical equipment that’s designed to reduce manual labour, as their key purpose is to provide maximum load bearing capacity to various mechanical aids and allow workers to transfer goods easily from one place to another. This is why caster wheels consist of specialised components like castor cups, which make them strong and sturdy enough to be used on both flat and smooth or rough and uneven surfaces.
Safety Features and Considerations
One of the key safety features of casters is the use of brakes to stop the wheels from travelling unnecessarily. If you have casters on the mattress of your bed, for example, you won’t want your bed moving around the room as you toss and turn while you sleep. If you require seating while you’re in the shower, you’ll want assurance that the seat won’t move on the slippery surface, and brakes on your casters will ensure your seat in fixed in place.
If you’re looking to fix casters to an item, be aware that different castor wheels are capable of accommodating different weight loads. Be sure to add the weight of any people if necessary, for example if the castors are going to support not just a king sized mattress but also two people sleeping on it.
What To Look For And Consider When Buying Castor Wheels
Whether you’re located in Melbourne, Sydney, Brisbane, Adelaide, Perth or Darwin, there are numerous factors to consider when shopping for casters for a particular item or project. Castor wheels can positively affect productivity; select the right caster for the product or item and it will become significantly easier to move. You can find a wide range of casters with different wheel diameters, thicknesses and materials to suit your requirements.
Safety is also a crucial point of consideration, both from an ergonomic and an operative / functional point of view. Most injuries that occur when moving heavy items are typically a result of a pull bar being too high for the operator to comfortably handle, or else the equipment is particularly resistant to being moved. Castors help to offset or eliminate that risk of injury by enabling the item to be wheeled across the ground. But it’s important that the castor wheels are the right size and can comfortably carry the weight of the item being moved.
You’ll find that poorly surfaced floors, whether that comes down to age or poor workmanship, will affect the castors ability to roll on the floor. For caster wheels that have the best chance at protecting not just the floor but the transported cargo as well, look for casters with a soft rubber tread.
Discover Our Complete Range Of Castors
Richmond stocks Australia’s leading range of castor wheels for all types of applications. From furniture and bed castors to plastic and heavy duty steel caster wheels, we have options to suit all weight requirements and all needs. You’ll also find essential components like base plates, castor frames and much more. Richmond delivers to Melbourne, Sydney, Brisbane, Perth, Adelaide and Darwin, so browse our range and place you order today.
Browse Our Huge Selection of Castor Wheels Online
Any work environment requires a skilled group of employees equipped with the very best of equipment and accessories to help them to achieve the company goals. Any workplace that fails to recognise the need for mobility and ease of use places their workers in danger of incurring injuries or putting the health and maybe even the lives of those that they work with at risk. Castor wheels are a simple, effective solution that can transform any working environment and the good news is that they are readily accessible with a huge amount of customisation possible.
At Richmond Wheel & Castor Co, we lead the field in Australia with regards to the range and accessibility of castor wheel types. For over sixty years our family has worked tirelessly to enhance the variety of industrial wheels that we supply, as well as keeping track of the latest developments with regards to new materials that can bolster or further improve upon the quality standards that we have come to be known for to date.
Our reputation for excellence and quality precedes us and with decades of combined industry experience, you can trust that we have the knowledge and specialist insights that are required to transform even the most challenging of tasks into a much more user-friendly, mobile job. If your work engages with the movement or handling of goods, then the chances are that you can benefit from our superior products.
The Many Ways Casters Can Improve Your Operations
Each workplace has a different set of requirements, which means that not all wheel castor types will prove ideal. That’s why we believe that anyone with any doubt as to the specific product they should acquire will always gain confidence in their purchase by speaking with our experts first.
There are plenty of different things to think about when choosing castor solutions for your business. The floor conditions are one of the more obvious factors that must be considered. However, it’s always essential to think through the load capacity or weights that need to be moved from one location to another, regardless of whether that’s a few feet or much further.
What kind of business do you run? If your employees regularly move chemicals or other corrosive liquids then the choice you make needs to be specific. Or, maybe you need something that will keep noise levels to a minimum or perhaps you’re looking for non-marking caster wheels to protect your floors? No matter what the specific requirements you have are, rest assured that we have an extensive range of choices that will improve your operations immeasurably.
Caster wheels make Australia’s business community much more mobile, they increase productivity through streamlined processes, they keep employees healthy and happy and this will ultimately prove its worth in terms of a reduction in sick leave or absenteeism caused by physical strain.
Expert Advice Readily Available
Here at Richmond Wheel & Castor Co, you will find a business that is currently being managed by the 3rd generation of our family. We share and pass our knowledge on from one generation to the next so that our customers can benefit from decades’ worth of learning and high-quality problem-solving solutions that exceed expectations every time.
We are the ultimate experts that are worth talking to whenever you are looking for castor wheels in Australia and with multiple branches throughout the country as well as in New Zealand, rest assured that you will never have to depend on poor design, manufacture or supply of the castor solutions that you trust the safety and mobility of your business in again.
