Solid Steel Wheels
Solid steel wheels offer the highest wheel load capacity for a given wheel size. Extreme durability for heavy duty wheel application such as supporting the rotation of process and manufacturing equipment, trolley wheels traveling on reinforced concrete or steel surfaces. Steel wheels offer the lowest rolling resistance of any wheel material reliably carrying high to extremely high loads. Our standard steel wheels are CNC machine turned from solid billet forgings. This creates the toughest most durable wheel with no risk of brittleness which is a common risk in comparable cast iron wheels.
Each standard configuration is supplied with reducer bushings as standard, this allow you to incorporate a standard commercial bolt as the wheel axle (securing the wheel between 2 side plates). Alternatively, the reducers can be removed allowing the wheel to be mounted to a machined axle which may better suit your fitment/project requirements.

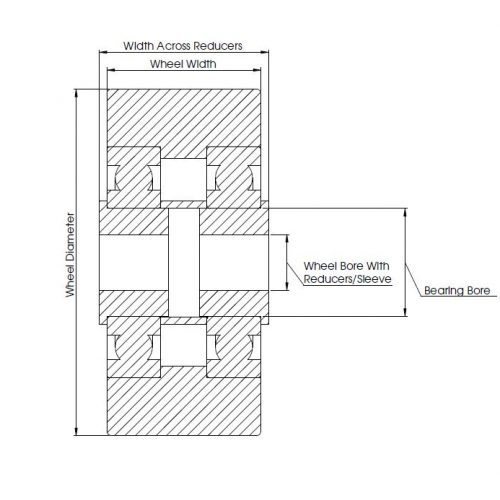

Standard Dimensions (refer to below table)
Product Specification Table
|Part Number||Wheel Diameter (mm)||Wheel Width (mm)||Bearing Bore (mm)||Wheel Bore w/ Reducers/Sleeve||Wheel Width Across Reducers (mm)||Wheel Load Capacity (kg)||PDF Download||CAD Model Download|
|ST50X30||50||30||20MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||36||350||Download||Download|
|ST50X50||50||50||20MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||56||500||Download||Download|
|ST50X75||50||75||20MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||81||500||Download||Download|
|ST65X50||65||50||20MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||56||800||Download||Download|
|ST65X75||65||75||20MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||81||1000||Download||Download|
|ST65X100||65||100||20MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||106||1200||Download||Download|
|ST75X50||75||50||25MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||56||1200||Download||Download|
|ST75X75||75||75||25MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||81||1500||Download||Download|
|ST75X100||75||100||25MM BB||13MM ID (TO SUIT M12 OR 1/2" BOLT)||106||1500||Download||Download|
|ST100X75||100||75||30MM BB||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||81||1800||Download||Download|
|ST100X100||100||100||30MM BB||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||106||2000||Download||Download|
|ST100X125||100||125||30MM BB||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||131||2000||Download||Download|
|ST100X150||100||150||30M BB||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||156||2000||Download||Download|
|ST125X75||125||75||30MM BB||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||81||1800||Download||Download|
|ST125X100||125||100||30MM BB||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||106||2000||Download||Download|
|ST125X125||125||125||30 DOUBLE ROW ANGULAR CONTACT BB'S||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||131||2500||Download||Download|
|ST125X150||125||150||30 DOUBLE ROW ANGULAR CONTACT BB'S||16.2MM ID (TO SUIT M16 OR 5/8" BOLT)||156||2500||Download||Download|
|ST150X75||150||75||40MM BB||20.2MM ID (TO SUIT M20 OR 3/4" BOLT)||85||2750||Download||Download|
|ST150X100||150||100||40MM BB||20.2MM ID (TO SUIT M20 OR 3/4" BOLT)||110||2750||Download||Download|
|ST150X125||150||125||40 DOUBLE ROW ANGULAR CONTACT BB'S||20.2MM ID (TO SUIT M20 OR 3/4" BOLT)||135||3500||Download||Download|
|ST150X150||150||150||40 DOUBLE ROW ANGULAR CONTACT BB'S||20.2MM ID (TO SUIT M20 OR 3/4" BOLT)||160||3500||Download||Download|
|ST175X75||175||75||40 DOUBLE ROW ANGULAR CONTACT BB'S||20.2MM ID (TO SUIT M20 OR 3/4" BOLT)||80||3500||Download||Download|
|ST175X100||175||100||40 DOUBLE ROW ANGULAR CONTACT BB'S||20.2MM ID (TO SUIT M20 OR 3/4" BOLT)||110||3750||Download||Download|
|ST175X125||175||125||40 DOUBLE ROW ANGULAR CONTACT BB'S||20.2MM ID (TO SUIT M20 OR 3/4" BOLT)||135||4000||Download||Download|
|ST175X150||175||150||40 DOUBLE ROW ANGULAR CONTACT BB'S||24.2MM ID (TO SUIT M24 BOLT)||160||4000||Download||Download|
|ST200X75||200||75||50MM BB||30.2MM ID (TO SUIT 30MM BOLT)||85||4500||Download||Download|
|ST200X100||200||100||50MM BB||30.2MM ID (TO SUIT 30MM BOLT)||110||5000||Download||Download|
|ST200X125||200||125||50MM BB||30.2MM ID (TO SUIT 30MM BOLT)||135||5500||Download||Download|
|ST200X150||200||150||50MM BB||30.2MM ID (TO SUIT 30MM BOLT)||160||5250||Download||Download|
|ST225X100||225||100||70MM BB||36.2MM ID (TO SUIT M36 BOLT)||110||5500||Download||Download|
|ST225X150||225||150||70MM BB||36.2MM ID (TO SUIT M36 BOLT)||160||6000||Download||Download|
|ST225X175||225||175||70MM BB||36.2MM ID (TO SUIT M36 BOLT)||185||6500||Download||Download|
|ST225X200||225||200||70MM BB||36.2MM ID (TO SUIT M36 BOLT)||210||7500||Download||Download|
|ST250X125||250||125||80MM BB||42.2MM ID (TO SUIT M42 BOLT)||145||7750||Download||Download|
|ST250X150||250||150||80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT||42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC||170||8500/1200/15000||Download||Download|
|ST250X200||250||200||80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT||42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC||220||9500/1350/16500||Download||Download|
|ST300X125||300||125||100MM BB/80MM SPHERICAL ROLLER + HT||M52 PRECISION BOLT BY RWC||160||10000/14000||Download||Download|
|ST300X150||300||150||100MM BB/80MM TAPERED ROLLER OR SPHERICAL ROLLER + HT||M52 PRECISION BOLT BY RWC||175||120000/1750||Download||Download|
|ST350/125||350||125||80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT||M60 PRECISION BOLT BY RWC||160||1400/20000||Download||Download|
|ST350X150||350||150||80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT||M60 PRECISION BOLT BY RWC||175||1600/25000||Download||Download|
|ST350X200||350||200||80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT||M60 PRECISION BOLT BY RWC||220||18000/28000/32000||Download||Download|
|ST400X150||400||150||80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT||M60 PRECISION BOLT BY RWC||185||2500/30000/3500||Download||Download|
|ST400X200||400||200||100MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER/ + HT/ + HIGH TENSILE HT||M70/M80 PRECISION BOLT BY RWC||225||30000/3500/40000||Download||Download|

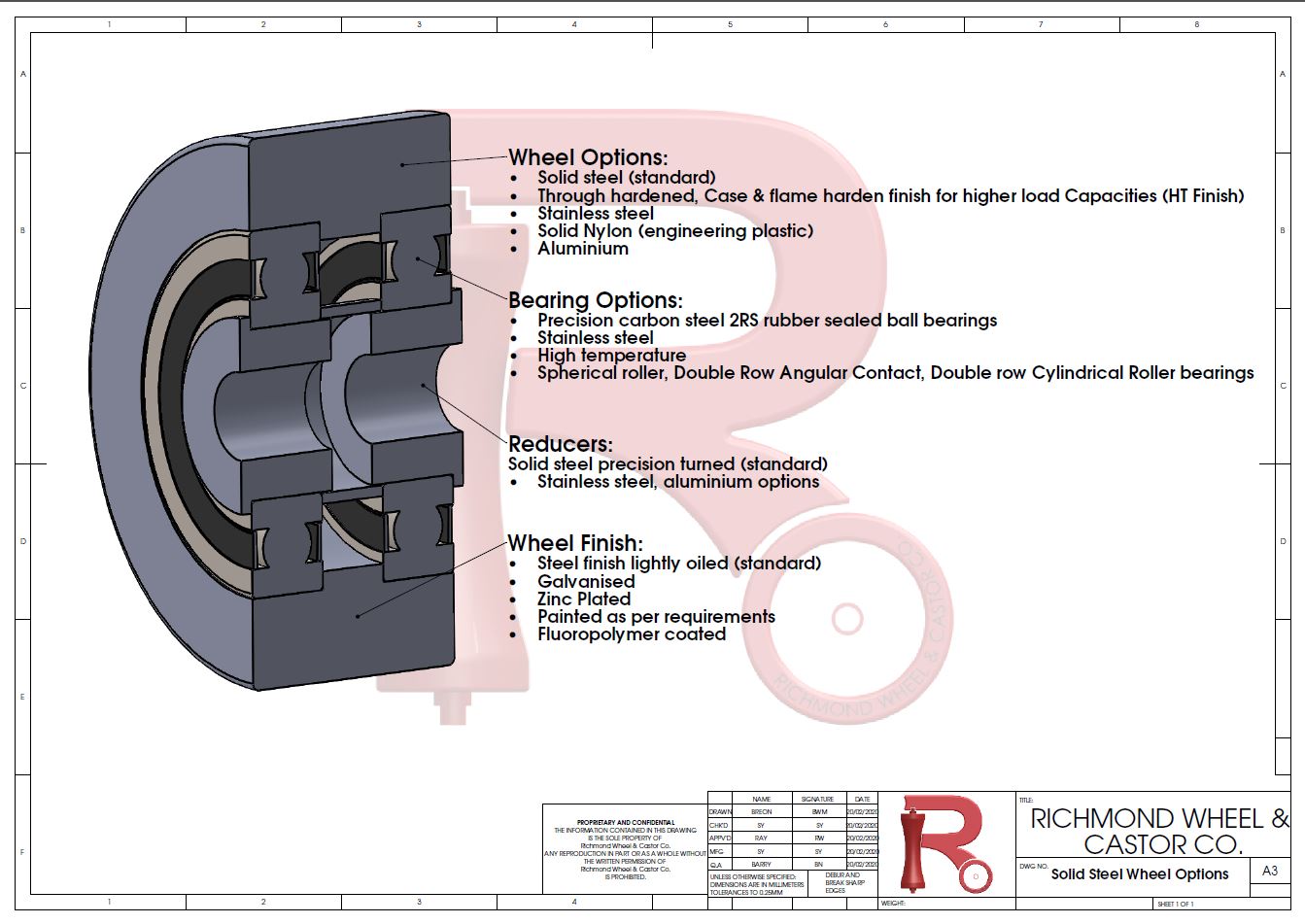

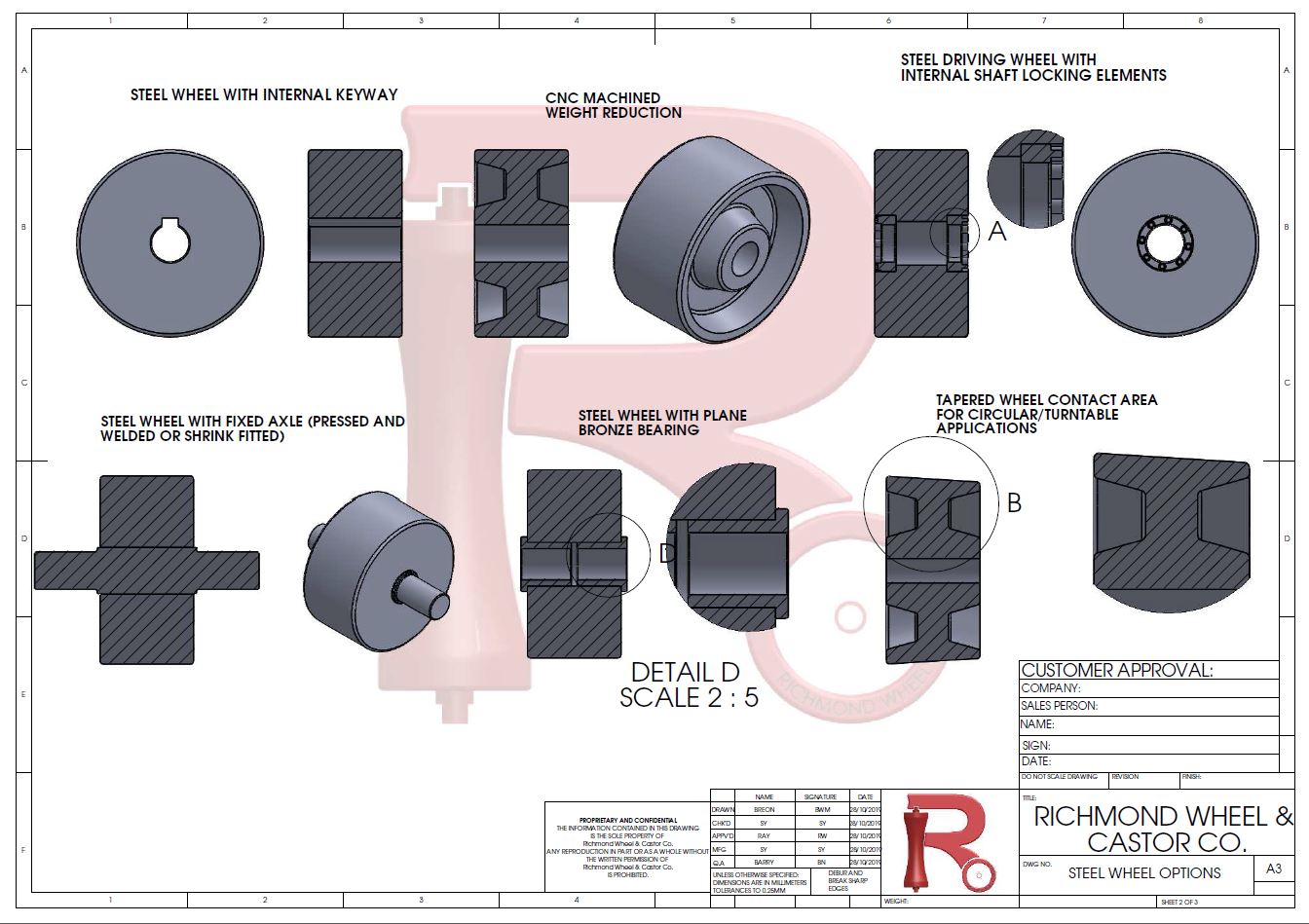

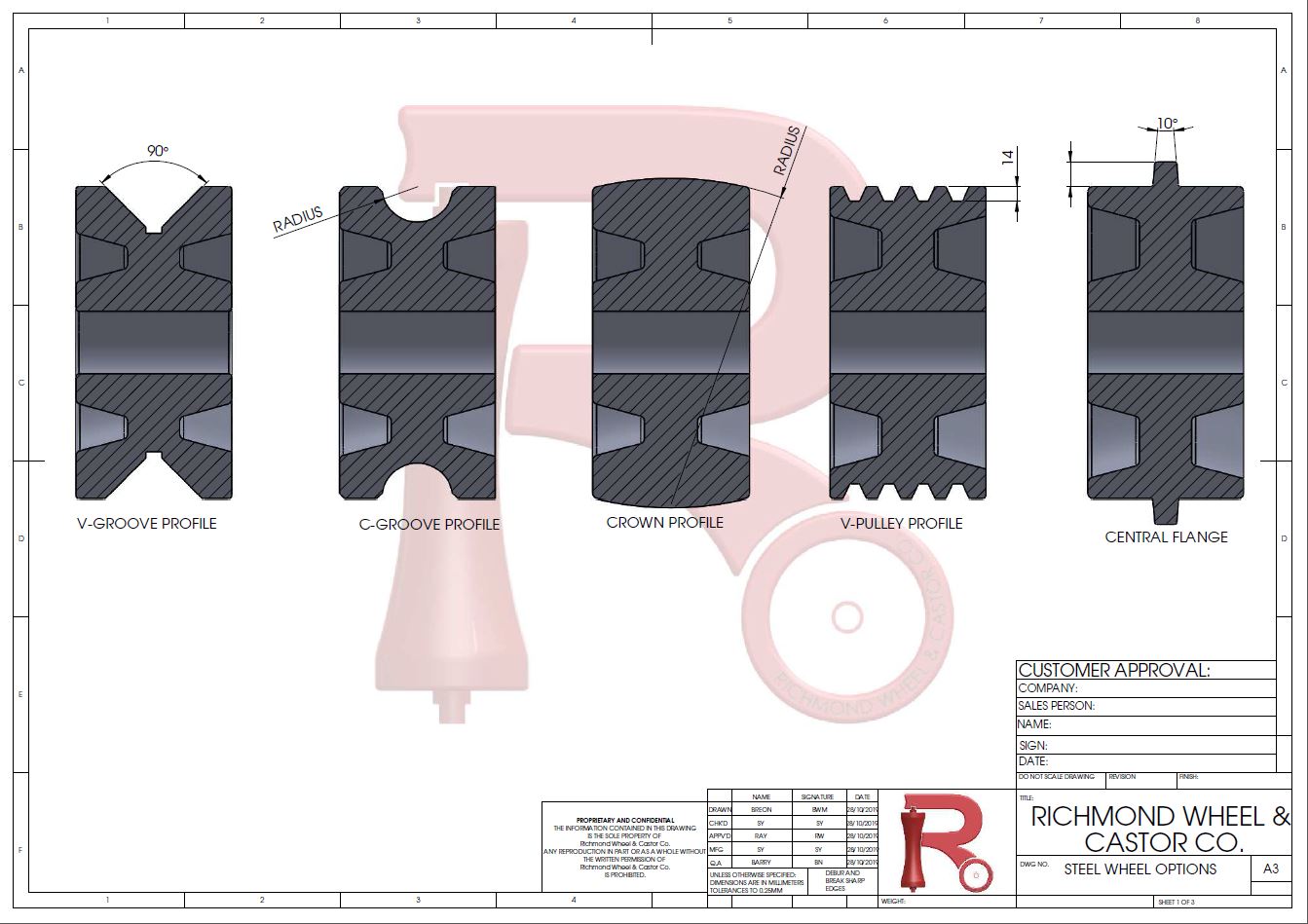

Standard Wheel Configuration Options
If our standard wheel configuration/capacity options don’t quite meet your project needs here are some examples of typical solid steel wheel configurations we can manufacture to suit your project needs exactly.
Steel Wheels — the Perfect Choice for Extreme Use
If you need to move heavy loads, particularly on guided tracks such as metal rails, steel wheels from Australia are the perfect choice. They’re highly resilient and can handle exceptionally heavy loads in a variety of extreme conditions.
Considerations when Choosing the Correct Steel Wheels
Careful selection is essential to get the correct wheels since a failure to operate as required will be very serious. Whilst practical tests may be necessary in some cases, certain factors have to be taken into account and will aid your final choice:
- Load capacity. Consider the maximum weight to be carried (tare plus load weight) and apportion this to the number of wheels to determine the required loading on each one. Since all wheels may not carry the load equally if the floor is uneven, you should allow for this by, for example, dividing by three rather than four wheels to determine the maximum load per wheel. Also note that specified capacities will be based on stated temperatures and speeds as well as on an even floor surface, so you should make allowances for this. Steel wheels have a very high load capacity.
If the tracks cross or there are other sources of unevenness, this can cause impacts that exceed the load rating and result in damage. To avoid this, select wheels with a load capacity which exceeds that normally expected and so allow a reserve amount.
- Resistance. Both the tractive resistance (the force needed to start a wheel moving) and the rolling resistance (the power need to keep it moving) depend on the wheel’s size, bearing and the surface composition of the floor. Bear this in mind when choosing and be aware that steel wheels have a very low resistance that results in smoother rolling.
- Environmental. If wheels are required to operate in wet conditions, high temperatures or where chemicals are present, corrosion or other deterioration may result. Choosing wheels that are suitable for these conditions will avoid problems.
Get the Best Steel Wheels in Australia
By considering all characteristics and choosing correctly from our range of steel wheels, you can fit wheels that:
- are suitable for applications where there is exposure to chemicals or where sparks cannot be tolerated due to the risk of explosion
- are guided on tracks, beams or in channels
- are exposed to high humidity or are fully immersed in liquid
- have low rolling and tractive resistance so they start easily and run smoothly
- can operate in extremes of temperature, from -50 to +800 degrees Celsius
- suffer low wear and have a long working life
- can be run on a variety of tracks of different materials and profiles.
Our stock of steel wheels is so wide and varied that you can find the right ones, whatever the application and the conditions under which they are to be used. If you are unsure, we can provide advice and technical support to help you select the most suitable wheels. The hardness, tensile strength and build quality mean every wheel is extremely durable and able to withstand the most testing of working environments.
