Marine Environment Wheel Assemblies

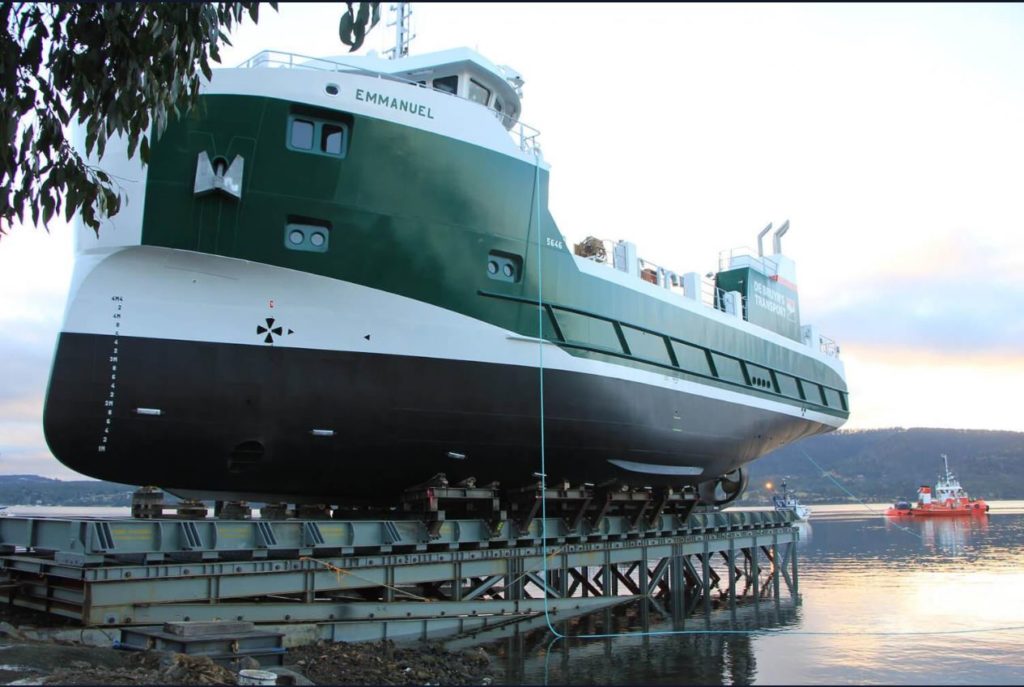

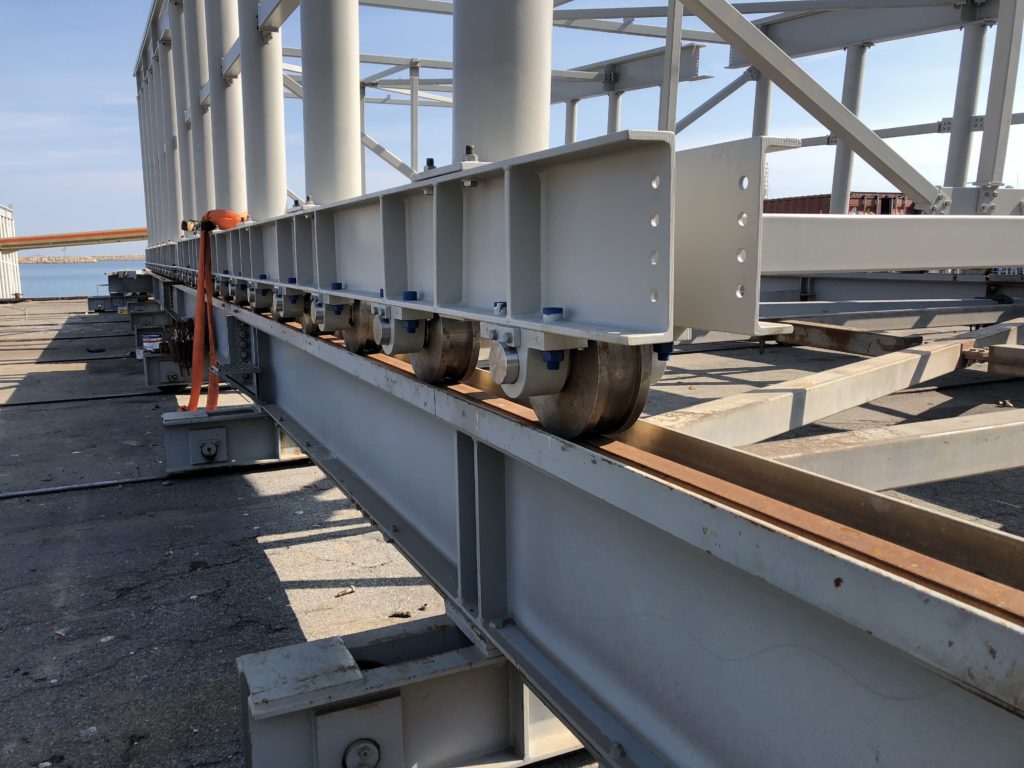

Marine environment wheel assemblies are ideal for heavy duty transport applications that require wheels that can operate while fully submerged in fresh or salt water. This style of wheel often referred to as a slip way wheel, is most commonly found in the vessel construction industry for transporting newly built vessels from land to sea & removal of vessels from sea to land for maintenance purposes. Richmond can also use this design philosophy to produce wire rope sheaves, guide rollers, and any typical industrial roller solution for demanding and highly corrosive semi & fully submerged applications.

Richmond Wheel & Castor Co has been manufacturing marine application wheel assemblies for fully and semi submerged applications and vessel transport/slipway applications for over 40 years. From light duty solutions for council and private yacht club dry docking solutions. To super heavy duty 1000 ton + capacity transport solutions for the biggest ship builders in the southern hemisphere. You can rely on our engineers experience and technical to design with you a product solution to suit your application, limitations and capacity requirements.

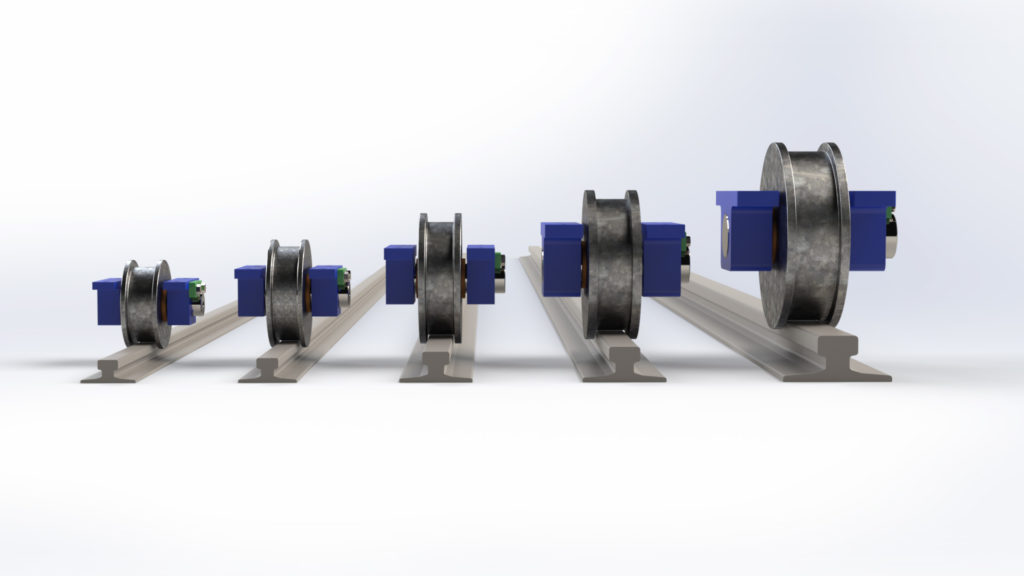

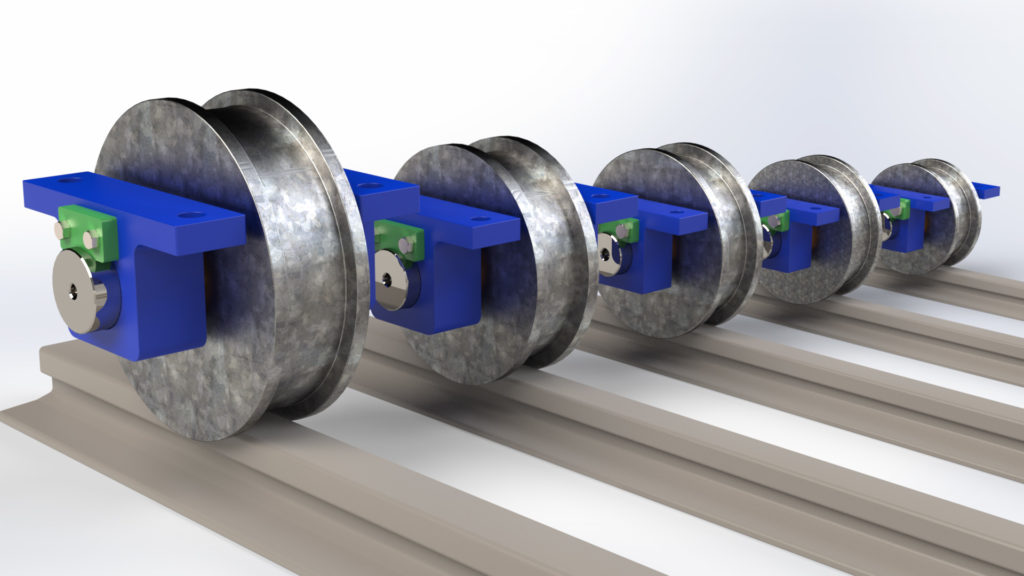

Standard Marine Application Wheel Assemblies

Part NumberWheel Diameter (mm)Width Between Flanges (mm)Width Across Flanges (mm)Flange Diameter (mm)Axle DiameterLoad Capacity (KG)Bearing TypePDF DownloadCad Drawing Download
Marine Application Wheel Assembly 05200659523765MM (IMPERIAL AND ALTERNATIVE SIZES AVALIABLE)5000 + 2.5 X FOSPlane bearing (Maintenance Free & Seal Options Avaliable)DownloadDownload
Marine Application Wheel Assembly 10250659528775MM (IMPERIAL AND ALTERNATIVE SIZES AVALIABLE)10000 + 2.5 X FOSPlane bearing (Maintenance Free & Seal Options Avaliable)DownloadDownload
Marine Application Wheel Assembly 203007011034780MM (IMPERIAL AND ALTERNATIVE SIZES AVALIABLE)20000 + 2.5 X FOSPlane bearing (Maintenance Free & Seal Options Avaliable)DownloadDownload
Marine Application Wheel Assembly 4035085135397100MM (IMPERIAL AND ALTERNATIVE SIZES AVALIABLE)40000 + 2.5 X FOSPlane bearing (Maintenance Free & Seal Options Avaliable)DownloadDownload
Marine Application Wheel Assembly 60450110160497120MM (IMPERIAL AND ALTERNATIVE SIZES AVALIABLE)60000 + 2.5 X FOSPlane bearing (Maintenance Free & Seal Options Avaliable)DownloadDownload

Standard Wheel Configuration Options

Please note: Every application is different, this product series is typically manufactured to order, allowing us complete design freedom to alter geometry, mounting method and accommodate any specific design requirements you may have. We have the ability to supply you wheels only, wheels with an axle assembly to suit your existing (or new) frame/bogie/structure. Or complete bolt-on wheel assemblies to suit your application. We offer a range of finishes including steel, galvanised, stainless steel, and fluoropolymer coatings to suit all applications and finish requirements.
