Double Flange Wheels

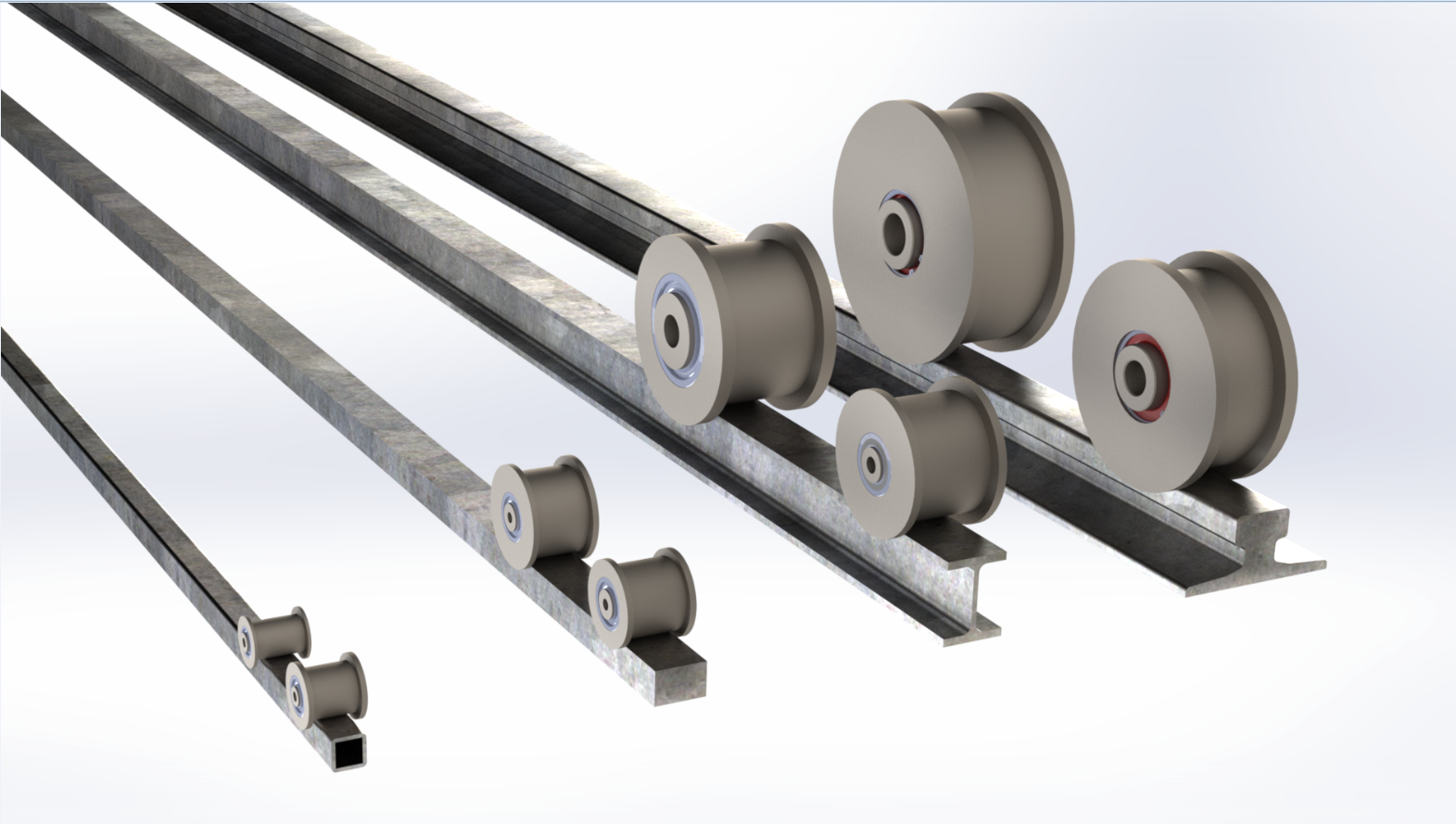

Double flange wheels are the workhorse of heavy-duty material handling and crane applications. This family of wheel can be incorporated into bridge cranes, manufacturing wagons, mine carts any application requiring a load bearing wheel capable of resisting a lateral force in both directions and stay the course of a wheel along a straight length of track. Our standard double flange wheel is CNC machine turned from solid billet forgings. This creates the toughest, most durable wheel, with no risk of brittleness which is a common risk in comparable cast iron wheels.

Each standard configuration is supplied with reducer bushings as standard, this allow you to incorporate a standard commercial bolt as the wheel axle (securing the wheel between 2 side plates). Alternatively, the reducers can be removed allowing the wheel to be mounted to a machined axle which may better suit your fitment/project requirements.

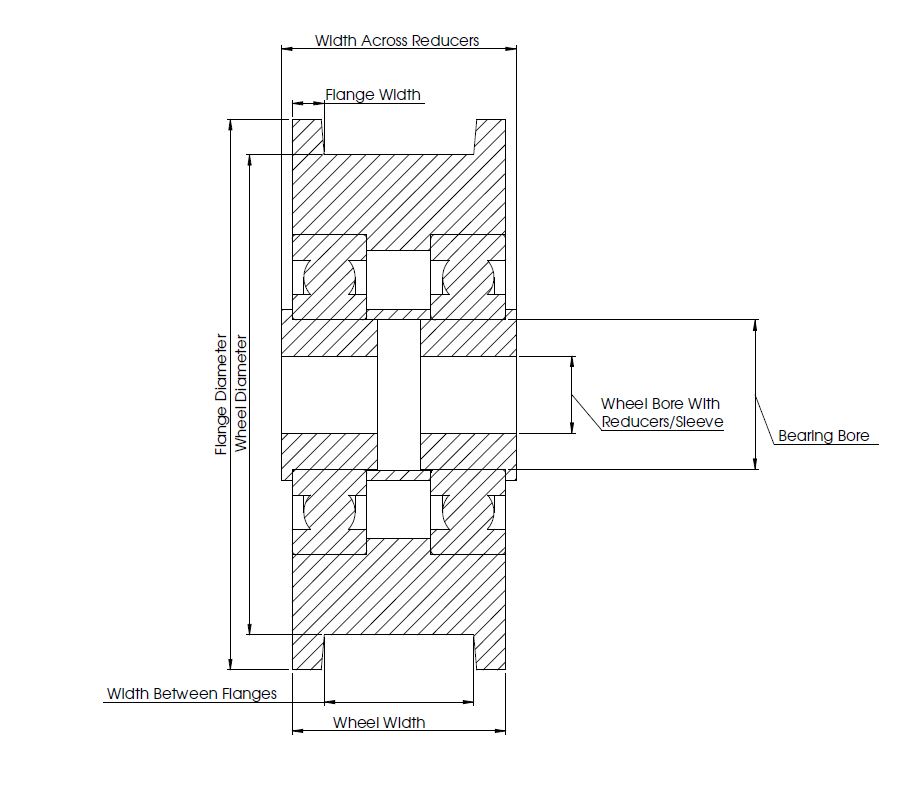

Standard Dimensions (refer to below table)

Product Specification Table

Part NumberWheel Diameter (mm)Flange Diameter (mm)Flange Width (mm)Width Between Flanges (mm)Wheel Width (mm)Bearing BoreWheel Bore w/ Reducers/SleeveWheel Width Across Reducers (mm)Wheel Load Capacity (kg)PDF DownloadCAD Drawing Download
DFST50X2050685203020MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)36350DownloadDownload
DFST50X4050685405020MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)56500DownloadDownload
DFST50X6550685657520MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)81500DownloadDownload
DFST65X3465838345020MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)56800DownloadDownload
DFST65X5965838597520MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)811000DownloadDownload
DFST65X84658388410020MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)1061200DownloadDownload
DFST75X3475938345025MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)561200DownloadDownload
DFST75X5975938597525MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)811500DownloadDownload
DFST75X84759388410025MM BB13MM ID (TO SUIT M12 OR 1/2" BOLT)1061500DownloadDownload
DFST100X5510011910557530MM BB16.2MM ID (TO SUIT M16 OR 5/8" BOLT)811800DownloadDownload
DFST100X80100119108010030MM BB16.2MM ID (TO SUIT M16 OR 5/8" BOLT)1062000DownloadDownload
DFST100X1051001191010512530MM BB16.2MM ID (TO SUIT M16 OR 5/8" BOLT)1312000DownloadDownload
DFST100X1301001191013015030M BB16.2MM ID (TO SUIT M16 OR 5/8" BOLT)1562000DownloadDownload
DFST125X5512514910557530MM BB16.2MM ID (TO SUIT M16 OR 5/8" BOLT)811800DownloadDownload
DFST125X80125149108010030MM BB16.2MM ID (TO SUIT M16 OR 5/8" BOLT)1062000DownloadDownload
DFST125X1051251491010512530 DOUBLE ROW ANGULAR CONTACT BB'S16.2MM ID (TO SUIT M16 OR 5/8" BOLT)1312500DownloadDownload
DFST125X1301251491013015030 DOUBLE ROW ANGULAR CONTACT BB'S16.2MM ID (TO SUIT M16 OR 5/8" BOLT)1562500DownloadDownload
DFST150X5215017811.5527540MM BB20.2MM ID (TO SUIT M20 OR 3/4" BOLT)852750DownloadDownload
DFST150X76150178127610040MM BB20.2MM ID (TO SUIT M20 OR 3/4" BOLT)1102750DownloadDownload
DFST150X1011501781210112540 DOUBLE ROW ANGULAR CONTACT BB'S20.2MM ID (TO SUIT M20 OR 3/4" BOLT)1353500DownloadDownload
DFST175X5217521011.5527540 DOUBLE ROW ANGULAR CONTACT BB'S20.2MM ID (TO SUIT M20 OR 3/4" BOLT)853500DownloadDownload
DFST175X76175210127610040 DOUBLE ROW ANGULAR CONTACT BB'S20.2MM ID (TO SUIT M20 OR 3/4" BOLT)1103750DownloadDownload
DFST175X1011752101210112540 DOUBLE ROW ANGULAR CONTACT BB'S20.2MM ID (TO SUIT M20 OR 3/4" BOLT)1354000DownloadDownload
DFST175X1201752101512015040 DOUBLE ROW ANGULAR CONTACT BB'S24.2MM ID (TO SUIT M24 BOLT)1604000DownloadDownload
DFST200X4520023715457550MM BB30.2MM ID (TO SUIT 30MM BOLT)854500DownloadDownload
DFST200X70200237157010050MM BB30.2MM ID (TO SUIT 30MM BOLT)1105000DownloadDownload
DFST200X95200237159512550MM BB30.2MM ID (TO SUIT 30MM BOLT)1355500DownloadDownload
DFST200X1202002371512015050MM BB30.2MM ID (TO SUIT 30MM BOLT)1605250DownloadDownload
DFST225X70225258157010070MM BB36.2MM ID (TO SUIT M36 BOLT)1105500DownloadDownload
DFST225X1202252581512015070MM BB36.2MM ID (TO SUIT M36 BOLT)1606000DownloadDownload
DFST225X1352252682013517570MM BB36.2MM ID (TO SUIT M36 BOLT)1856500DownloadDownload
DFST225X1602252682016020070MM BB36.2MM ID (TO SUIT M36 BOLT)2107500DownloadDownload
DFST250X85250288208512580MM BB42.2MM ID (TO SUIT M42 BOLT)1457750DownloadDownload
DFST250X1102502882011015080MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC1701200/8500/15000DownloadDownload
DFST250X1502502982515020080MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC2201350/9500/16500DownloadDownload
DFST300X753003482575125100MM BB/80MM SPHERICAL ROLLER + HTM52 PRECISION BOLT BY RWC16010000/14000DownloadDownload
DFST300X10030034825100150100MM BB/80MM TAPERED ROLLER OR SPHERICAL ROLLER + HTM52 PRECISION BOLT BY RWC1751750/120000DownloadDownload
DFST350X75350398257512580MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HTM60 PRECISION BOLT BY RWC1601400/20000DownloadDownload
DFST350X1003503982510015080MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HTM60 PRECISION BOLT BY RWC1751600/25000DownloadDownload
DFST350X1503503982515020080MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HTM60 PRECISION BOLT BY RWC22718000/28000/32000DownloadDownload
DFST400X1004004982510015080MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HTM70/M80 PRECISION BOLT BY RWC1852500/30000/35000DownloadDownload
DFST400X15040049825150200100MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER/ + HT/ + HIGH TENSILE HTM70/M80 PRECISION BOLT BY RWC22530000/35000/40000DownloadDownload

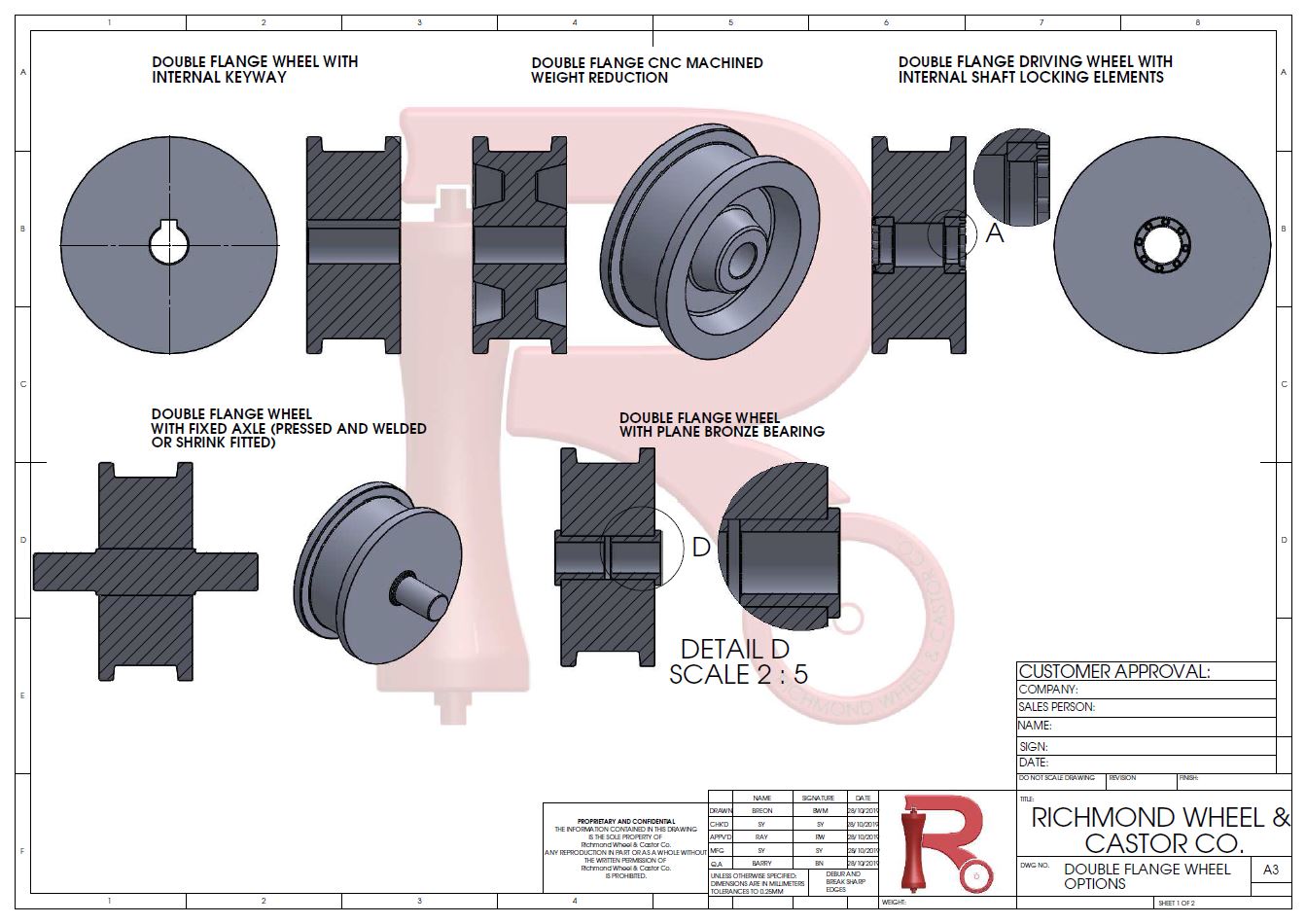

Standard Wheel Configuration Options

If our standard wheel configuration/capacity options don’t quite meet your project needs here are some examples of typical double flanged wheel configurations we can manufacture to suit your project needs exactly.
