Utility Series
Plate castors

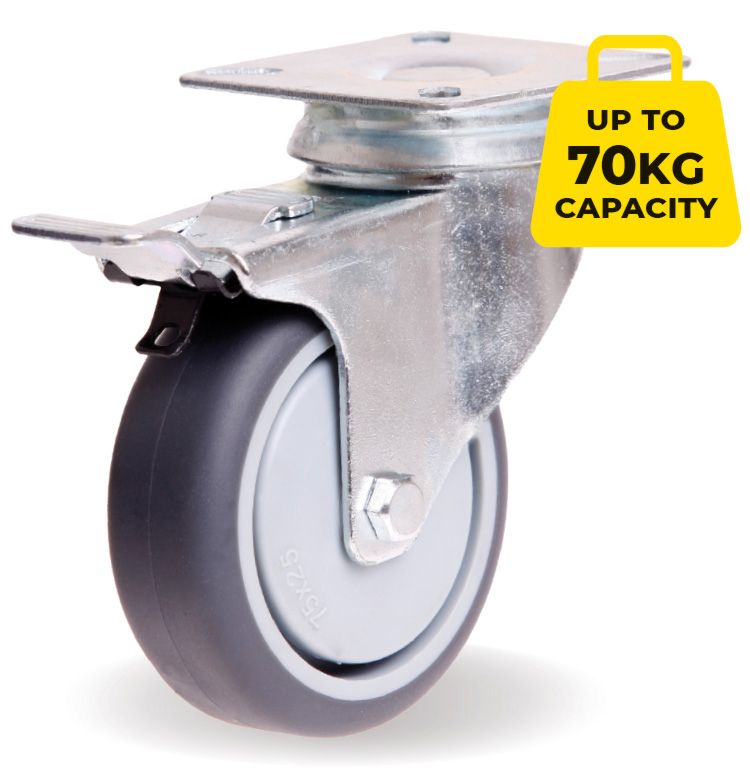

Plate mounted, Richmond’s Utility Castor has endless light duty applications, adding mobility to many useful items including wire baskets, display equipment and light trolley applications.
Its zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with a choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature, a must have for all small fabricating, retail and home handy man purposes.
Diameter (mm) | Width (mm) | Wheel Type | Wheel Code | Bearing Type | Load Capacity (kg) | Height (mm) | Swivel Radius (mm) | Swivel Radius with Brake (mm) | Rigid Code | Swivel Code | Swivel with Brake Code |
---|---|---|---|---|---|---|---|---|---|---|---|
50 | 20 | Institutional Rubber | - | Ball | 30 | 69 | 50 | 77 | R2711 | S2710 | S2710B |
50 | 20 | Nylon | - | Plain | 30 | 69 | 50 | 77 | R2709 | S2708 | S2708B |
75 | 25 | Institutional Rubber | IR3301 | Ball | 50 | 98 | 65 | 85 | R3711 | S3710 | S3710B |
75 | 25 | Nylon | NY3324 | Plain | 50 | 98 | 65 | 85 | R3709 | S3708 | S3708B |
100 | 25 | Institutional Rubber | IR4401 | Ball | 70 | 134 | 90 | 100 | R4711 | S4710 | S4710B |
100 | 25 | Nylon | NY4415 | Plain | 70 | 134 | 90 | 100 | R4717 | S4716 | S4716B |
Showing 1–16 of 18 results
-
50mm Rubber Wheel 30kg Capacity Castor (S2710)
-
50mm Rubber Wheel 30kg Capacity Castor (S2710B)
-
50mm Rubber Wheel 30kg Capacity Castor (R2711)
-
50mm Nylon Wheel 30kg Capacity Castor (S2708)
-
50mm Nylon Wheel 30kg Capacity Castor (S2708B)
-
50mm Nylon Wheel 30kg Capacity Castor (R2709)
-
75mm Rubber Wheel 50kg Capacity Castor (S3710)
-
75mm Rubber Wheel 50kg Capacity Castor (S3710B)
-
75mm Rubber Wheel 50kg Capacity Castor (R3711)
-
75mm Nylon Wheel 50kg Capacity Castor (S3708)
-
75mm Nylon Wheel 50kg Capacity Castor (S3708B)
-
75mm Nylon Wheel 50kg Capacity Castor (R3709)
-
100mm Rubber Wheel 70kg Capacity Castor (S4710)
-
100mm Rubber Wheel 70kg Capacity Castor (S4710B)
-
100mm Rubber Wheel 70kg Capacity Castor (R4711)
-
100mm Nylon Wheel 70kg Capacity Castor (S4716)
Showing 1–16 of 18 results
Light Duty Plate Mounted Castors
These plate mounted castors are ideal for light duty applications including wire baskets, display equipment and light trolley applications. They feature a corrosion resistant zinc plated finish in a pressed metal construction, making them safe for use outdoors. These castors are available with either a black nylon wheel or a non-marking grey rubber wheel. Nylon wheels are a durable choice with low rolling resistance, making them ideal for hard, smooth surfaces and outdoor or wet environments. Grey rubber wheels are non-marking to prevent damage to floors, and have sealed bearings and a matching grey thread guard. They are best suited to light duty applications.
The Utility Plate Series is commonly seen in the medical and aged care industries, as well as across retail, greengrocer, hospitality and handyman settings. You may see these light duty castors on service carts, platform trolleys or on our dual purpose trolley range.
For applications that require fixing with bolt or thread, our Utility Bolt Hole range would be suitable. We also offer this range in a twin-wheel model for heavier loads.
