50mm Rubber Wheel 30kg Capacity Castor (S2714B)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

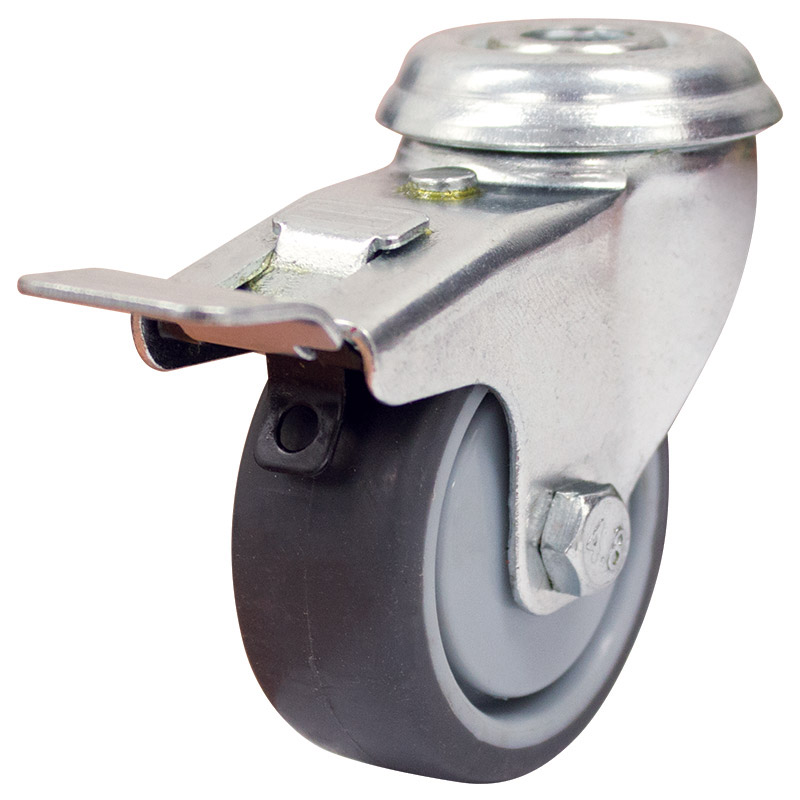

The S2714B from Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is in our utility series range and has a maximum capacity of 30kg. The S2714B uses ball bearings for wheel rotation. The swivel frame design of this castor permits the load to be steered. The diameter of the institutional rubber wheel is 50mm, the wheel width is 20mm. This model can also be ordered without a brake (part number S2714).

Description

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

Product Code S2714B
Wheel Diameter (mm) 50
Frame Type Swivel with Brake
Wheel Width (mm) 20
Wheel Type Institutional Rubber
Wheel Code IR2201
Wheel Bearing Type Ball Bearing
Castor Height (mm) 68
Swivel Radius (mm) 75
Bolt Hole Size (mm) 10
Maximum Load Capacity (kg) 30
Recommended Load Capacity (kg) 20
Utility Series Bolt Hole Castors Spec Sheet Download
Download CAD Drawing (STEP file) Download
10mm Bolt Hole

10mm Bolt Hole

Swivel with Brake

Swivel with Brake

Shipping Information

Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.

Shipping will be calculated at checkout.

For more information on our freight charges, click & collect locations, and more
view our online shipping policy

*Not all items are available for purchase online.

Product FAQs

Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.

These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat).  See part number 100RED1008UTI.
