Product Code | S1608 |
---|---|
Wheel Diameter (mm) | 400 |
Frame Type | Swivel |
Wheel Width (mm) | 125 |
Wheel Type | Polyurethane Tyred Cast Iron Centred |
Wheel Code | PU1606 |
Wheel Bearing Type | Taper Roller Bearing |
Castor Height (mm) | 520 |
Swivel Radius (mm) | 295 |
Maximum Load Capacity (kg) | 5000 |

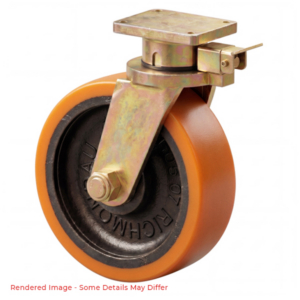

400mm Poly Ci Wheel 5000kg Capacity Castor (S1608)
The S1608 from Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a polyurethane tyred cast iron wheel. This swivel castor is one of our 5000 series range and can safely take loads up to 5000kg. The S1608 uses taper roller bearings for wheel rotation. The swivel frame of this castor allows full swivel rotation to enable steering. The polyurethane tyred cast iron wheel diameter is 400mm, the wheel width is 125mm and you can order separately (Part Number: PU1606). To order this castor with a brake, search for S1608B.
Download CAD Drawing (STEP file) | Download |
---|
Australian Manufactured
Swivel
Towable
