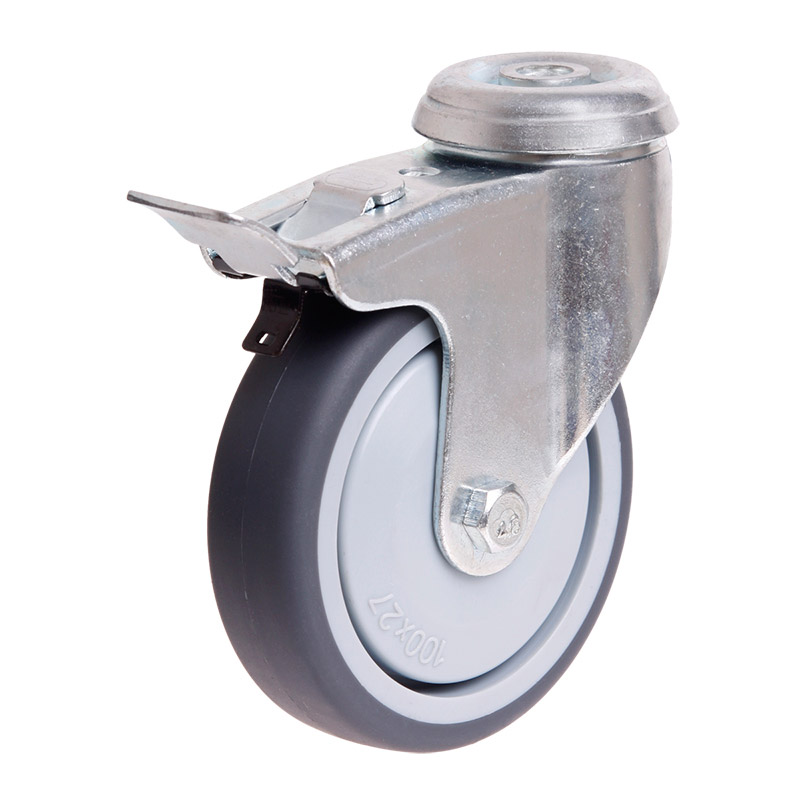

100mm Rubber Wheel 70kg Capacity Castor (S4714B)

Wheel Diameter: 100mm

Castor Frame Type: Swivel with Brake

Wheel Width: 25mm

Wheel Type: Instituitional Rubber

Wheel Code: iR4401

Wheel Bearing Type: Ball Bearing

Castor Height: 131mm

Swivel Radius: 100mm

Bolt Hole Size: 10mm

Maximum Load Capacity: 70kg

Recommended Load Capacity: 60kg

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

The S4714B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and features a institutional rubber wheel. This swivel castor is one of our utility series range and can hold loads up to 70kg. The S4714B uses ball bearings for wheel rotation. The swivel frame of this castor allows full swivel rotation to enable steering. The outside diameter of the institutional rubber wheel is 100mm, the wheel width is 25mm and you can order separately (Part Number: iR4401). To order this castor without a brake, search for S4714.

SKU: 069UTBS4714B Categories: , ,
